ADRF Donor Antennas: Professional Signal Capture Solutions for Cellular DAS and Public Safety ERCES-BDA Deployments
Distributed antenna systems and bi-directional amplifiers serve as the backbone of reliable in-building wireless communications, yet their effectiveness depends entirely on the quality of the signal they receive from outdoor networks. Poor donor signal acquisition translates directly into compromised coverage, reduced capacity, and potential compliance issues for both commercial and public safety applications. The strength and clarity of the initial signal capture fundamentally determines system performance across the entire coverage area.
Through our strategic partnership with Advanced RF Technologies, MCA delivers ADRF’s comprehensive portfolio of high isolation donor antennas, engineered to provide exceptional signal acquisition across diverse frequency bands and deployment scenarios.
What are ADRF High Isolation Donor Antennas?
ADRF High Isolation Donor Antennas represent a specialized family of directional antennas designed specifically for signal capture in distributed antenna systems and bi-directional amplifier deployments. These precision-engineered antennas serve as the critical first component in any in-building coverage system, responsible for acquiring clean, strong signals from outdoor cellular towers and public safety networks while minimizing interference from unwanted sources.
The platform encompasses both Yagi and panel antenna designs, each optimized for specific frequency ranges spanning from low-band 600 MHz public safety spectrum through high-band 4200 MHz 5G services. This comprehensive coverage ensures compatibility with all major commercial carriers and public safety networks while providing the isolation characteristics essential for reliable system operation.
Advanced Performance Characteristics
Exceptional Directional Gain
ADRF donor antennas deliver substantial directional gain across their operational frequency ranges, with performance specifications ranging from 10 dBi for compact dual-band units to over 20 dBi for specialized high-band panel configurations. This high gain capability proves essential for capturing usable signals from distant towers while providing the link budget necessary for reliable system operation.
The directional nature of these antennas enables precise targeting of desired signal sources while rejecting interference from adjacent towers or co-channel transmitters. This selectivity becomes particularly critical in dense urban environments where multiple signal sources create potential interference challenges.
Superior Isolation Performance
High front-to-back ratios characterize the entire ADRF donor antenna portfolio, with performance exceeding 30 dB across most frequency bands and reaching over 45 dB in optimized configurations. This exceptional isolation capability ensures clean signal acquisition while minimizing the impact of reflected signals, adjacent channel interference, and unwanted noise sources.
The narrow beamwidth characteristics further enhance isolation performance by focusing reception on intended signal sources while attenuating signals arriving from other directions. This precision directivity proves particularly valuable in challenging RF environments where signal quality directly impacts system reliability.
Robust Environmental Design
All ADRF donor antennas incorporate weather-resistant construction designed for reliable long-term outdoor operation. Wind survival ratings of 150 mph ensure structural integrity under extreme weather conditions, while IP-rated enclosures provide protection against moisture ingress and environmental contamination.
The lightweight yet durable radome construction utilizes advanced ASA materials that maintain RF transparency while providing long-term UV resistance and mechanical protection. This combination of performance and durability ensures consistent operation throughout extended deployment lifecycles.

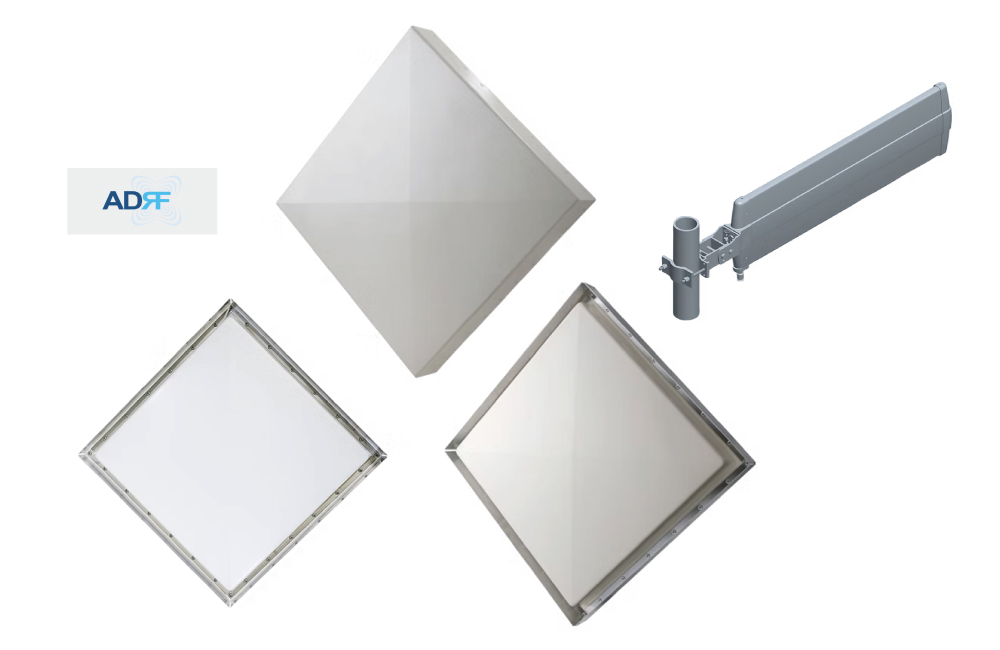

Comprehensive Product Portfolio
The ADRF donor antenna family encompasses specialized models optimized for specific frequency ranges and deployment scenarios, providing flexibility to address diverse coverage requirements while maintaining consistent performance standards.

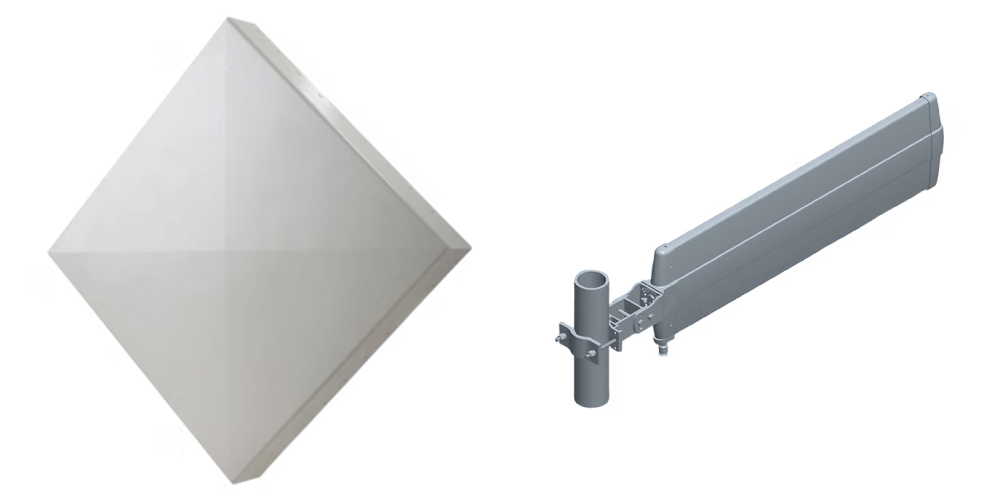

AD-DBYG-698-2700-N Dual-Band Yagi Antenna
This compact dual-band Yagi antenna addresses the fundamental requirements of small to medium-scale DAS deployments by providing reliable signal capture across both low-band and high-band cellular frequencies.
Technical Specifications:
- Frequency Coverage: 698-960 MHz and 1695-2700 MHz dual-band operation
- Gain Performance: ≥10 dBi low-band, ≥11 dBi high-band
- Beamwidth: 70° horizontal, 50° vertical for balanced coverage
- VSWR: ≤1.8:1 low-band, ≤1.5:1 high-band
Physical Characteristics:
- Dimensions: 27.8 x 7.4 x 1.3 inches (705 x 187 x 34 mm)
- Weight: 3.3 lbs (1.5 kg) excluding mounting hardware
- Connector: N-Type Female for simplified connectivity
- Power Handling: 50W maximum per port
The dual-band design eliminates the need for multiple antennas while providing reliable coverage across essential commercial and public safety frequency bands. The compact form factor and included mounting hardware enable flexible installation on walls or poles, making this antenna ideal for space-constrained installations.
AD-PA-617-960-D Low-Band Panel Antenna
Engineered specifically for low-band spectrum requirements, this high-performance panel antenna delivers exceptional gain and isolation characteristics across the frequency ranges most critical for public safety and extended coverage applications.
Frequency and Performance Specifications:
- 600 MHz Band: 617-698 MHz, 15.1 dBi gain, 31.0 dB front-to-back ratio
- 700 MHz Band: 698-806 MHz, 15.5 dBi gain, 31.8 dB front-to-back ratio
- 800 MHz Cellular: 806-894 MHz, 16.8 dBi gain, 29.4 dB front-to-back ratio
- 900 MHz Extended: 880-960 MHz, 16.6 dBi gain, 30.6 dB front-to-back ratio
Beamwidth Characteristics:
- Horizontal: 32.1° at 600 MHz, narrowing to 24.3° at 800 MHz
- Vertical: 31.6° at 600 MHz, narrowing to 24.1° at 800 MHz
Construction Details:
- Dimensions: 27.6 x 27.6 x 5.4 inches (700 x 700 x 137 mm)
- Weight: 19.8 lbs (9.0 kg) without mounting kit
- Connector: 7/16 DIN Female for professional-grade connections
- Radome: ASA gray construction for durability and RF transparency
This antenna proves particularly effective for public safety ERCES deployments where reliable low-band coverage is essential for emergency responder communications. The high isolation characteristics ensure clean signal acquisition while the robust construction provides long-term reliability in demanding outdoor environments.
AD-PA-1695-4200-D High-Band Multi-Port Panel
Designed for advanced 5G and high-capacity LTE deployments, this sophisticated panel antenna incorporates dual-port design and exceptional frequency coverage spanning mid-band through C-band spectrum allocations.
Comprehensive Frequency Coverage:
- AWS Band: 1695-1910 MHz, 17.8 dBi gain, 42.8 dB front-to-back ratio
- PCS/AWS Extended: 1910-2180 MHz, 18.8 dBi gain, 40.8 dB front-to-back ratio
- WCS Band: 2305-2360 MHz, 19.6 dBi gain, 44.8 dB front-to-back ratio
- BRS Lower: 2360-2700 MHz, 19.2 dBi gain, 45.1 dB front-to-back ratio
- Mid-Band 5G: 3300-3800 MHz, 19.4 dBi gain, 35.8 dB front-to-back ratio
- Upper C-Band: 3800-4200 MHz, 18.7 dBi gain, 34.2 dB front-to-back ratio
Advanced Design Features:
- Dual-Port Configuration: Two 7/16 DIN Female connectors for enhanced flexibility
- Precise Beamwidth Control: Optimized patterns for each frequency range
- High Isolation Performance: Superior front-to-back ratios minimize interference
- Professional Construction: 21.0 x 21.0 x 2.9 inch profile with 15.4 lb weight
This antenna addresses the complex requirements of modern 5G networks by providing comprehensive coverage across all major commercial frequency bands while maintaining the isolation characteristics essential for high-performance DAS deployments.
AD-PA-1900-2600-DIN-X Precision High-Band Panel
Engineered for maximum performance in high-band commercial applications, this specialized panel antenna delivers exceptional gain and narrow beamwidth characteristics optimized for capacity-focused deployments.
Performance Specifications:
- AWS/PCS Combined: 1710-2170 MHz, 19.1-20.1 dBi gain
- WCS Dedicated: 2300-2400 MHz, 19.1 dBi gain
- BRS Spectrum: 2500-2690 MHz, 20.4 dBi gain
Precision Beamwidth Control:
- Horizontal: 17.7° narrowing to 13.6° at higher frequencies
- Vertical: 17.5° narrowing to 13.5° at higher frequencies
- Adjustable Tilt: Up to 20° vertical tilt adjustment for optimization
Professional Installation Features:
- Standard Mounting: Pole diameter support from 40-80mm
- Weather Resistance: IPX5 rating with 150 mph wind survival
- Power Handling: 100W maximum with excellent intermodulation performance
- Quality Construction: ASA white radome with professional appearance
This antenna excels in applications requiring maximum gain and precise beam control, making it ideal for high-capacity venues and long-range coverage scenarios where signal strength and selectivity are paramount.
Strategic Applications and Deployment Scenarios
Commercial Distributed Antenna Systems
Modern commercial DAS deployments demand reliable signal acquisition across multiple frequency bands while maintaining the isolation necessary for clean system operation. ADRF donor antennas provide the performance foundation essential for these sophisticated systems.
- Multi-Carrier Support: The broad frequency coverage enables simultaneous support for multiple carriers across diverse spectrum allocations, eliminating the need for multiple antenna installations while reducing visual impact and installation complexity.
- Capacity Enhancement: High-gain characteristics enable systems to operate effectively with weaker donor signals, expanding deployment possibilities and improving overall system economics by reducing infrastructure requirements.
- 5G Network Integration: Comprehensive coverage of emerging 5G spectrum bands ensures compatibility with next-generation network deployments while providing the performance headroom necessary for advanced modulation schemes and wide-channel operations.
Public Safety ERCES Implementations
Emergency Responder Communication Enhancement Systems place demanding requirements on donor antenna performance, requiring reliable signal acquisition across public safety frequency bands while maintaining compliance with strict isolation requirements.
- FirstNet Compatibility: Complete coverage of Band 14 and traditional public safety spectrum ensures reliable emergency communications while supporting the transition to modern broadband public safety networks.
- Isolation Compliance: Superior front-to-back ratios and narrow beamwidth characteristics help maintain the isolation standards required for ERCES certification while minimizing interference potential.
- Environmental Reliability: Robust construction and weather resistance ensure reliable operation during emergency situations when communications become most critical for public safety operations.
Specialized Industrial Applications
Industrial facilities, transportation infrastructure, and critical operations facilities require donor antenna solutions that combine high performance with exceptional reliability under challenging conditions.
- Transportation Networks: Airport terminals, rail facilities, and highway infrastructure benefit from high-gain antennas that can acquire signals from distant towers while providing the coverage consistency necessary for critical communications.
- Manufacturing Environments: Industrial facilities often present challenging RF environments where high isolation and precise beam control become essential for reliable system operation amidst potential interference sources.
- Critical Infrastructure: Power generation facilities, data centers, and other critical infrastructure require donor antennas that maintain performance under all conditions while supporting both commercial communications and emergency response requirements.
Installation Flexibility and Integration
Mounting System Compatibility

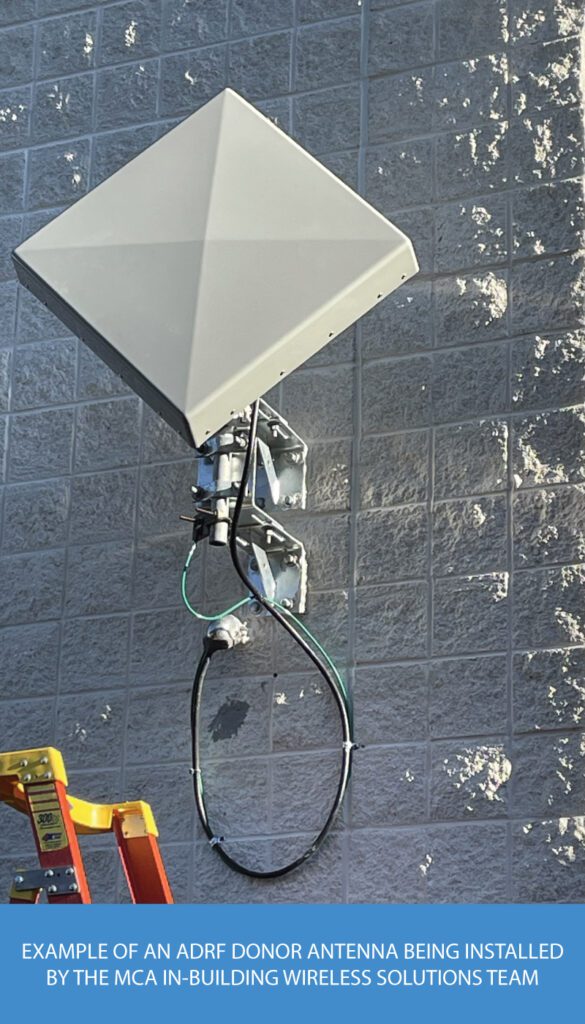

ADRF donor antennas incorporate versatile mounting systems designed to accommodate diverse installation scenarios while maintaining optimal RF performance and mechanical stability.
- Universal Pole Mounting: Standard pole mounting hardware accommodates a wide range of pole diameters while providing secure attachment and precise pointing adjustment capabilities. Wind loading specifications ensure reliable operation under severe weather conditions.
- Wall Installation Options: Compact models include wall mounting hardware for installations where pole mounting is not feasible, providing flexibility for challenging architectural constraints while maintaining performance standards.
- Professional Adjustment Features: Tilt adjustment capabilities enable precise optimization of coverage patterns while alignment indicators ensure accurate pointing for maximum signal acquisition.
System Integration Considerations
- Connector Compatibility: Professional-grade 7/16 DIN and N-Type connectors ensure reliable connections while supporting high-power applications and maintaining long-term performance under environmental stress.
- Cable Management: Antenna designs accommodate professional cable routing and weatherproofing requirements while providing access for maintenance and system modifications.
- RF Performance Optimization: Precise impedance matching and low VSWR characteristics ensure maximum power transfer and minimal signal degradation throughout the distribution system.
Performance Verification and Quality Assurance
Testing and Validation
ADRF donor antennas undergo comprehensive testing to verify performance specifications and ensure consistent quality across production runs. This testing encompasses both RF performance validation and environmental durability verification.
- RF Performance Testing: Gain measurements, pattern verification, and isolation testing ensure each antenna meets specified performance criteria across operational frequency ranges. VSWR testing verifies impedance matching while intermodulation testing confirms linearity under high-power conditions.
- Environmental Validation: Wind loading tests, temperature cycling, and moisture resistance testing verify reliable operation under demanding outdoor conditions. UV exposure testing ensures long-term radome integrity and appearance retention.
- Quality Control Procedures: Manufacturing quality control processes ensure consistent performance while final inspection procedures verify compliance with all specifications before shipment.
Professional Implementation and Lifecycle Support
The ADRF High Isolation Donor Antenna portfolio is a key part of MCA’s wireless infrastructure solutions. Our experienced engineering teams specialize in donor antenna selection, installation, and optimization for diverse environments.
Through site assessments, RF analysis, and system evaluations, we ensure the best solution for your needs—whether it’s ADRF antennas or alternatives from our partner network. Our customized designs optimize signal acquisition and ensure long-term performance, meeting critical communication standards.
Factors like frequency, gain, isolation, and environmental conditions are carefully considered. Contact MCA to explore how ADRF antennas or other solutions can enhance your wireless infrastructure with reliable, high-performance signal capture.
