ADRF Splitters: Precision Signal Distribution for Advanced DAS Infrastructure
Distributed antenna systems and bi-directional amplifiers serve as the foundation of reliable in-building wireless communications, yet their effectiveness depends entirely on precise signal distribution that maintains consistent power levels and signal quality throughout complex infrastructure networks. Healthcare facilities, educational campuses, and commercial enterprises require seamless connectivity across multiple floors and coverage areas while supporting diverse wireless services including public safety communications, commercial cellular, and emerging 5G technologies. The challenge lies in achieving balanced signal distribution that preserves signal integrity while accommodating the power handling requirements and environmental conditions characteristic of demanding wireless deployments.
Through our strategic partnership with Advanced RF Technologies, MCA delivers ADRF’s comprehensive portfolio of precision-engineered splitters, designed to provide exceptional signal distribution capabilities that ensure reliable performance across critical wireless infrastructure applications.
What are ADRF Splitters?
ADRF Splitters represent specialized RF distribution devices designed to divide or combine signals between multiple transmission paths while maintaining balanced power distribution, minimal insertion loss, and exceptional isolation characteristics. These precision-engineered components serve as fundamental building blocks within distributed antenna systems, enabling system designers to create sophisticated signal distribution networks that support multiple coverage zones while preserving the signal quality essential for reliable wireless communications.
The platform encompasses 2-way, 3-way, and 4-way configurations that provide flexible signal distribution options for diverse system architectures. Each splitter design incorporates advanced passive intermodulation mitigation techniques, robust environmental protection, and comprehensive frequency coverage that addresses all major commercial cellular bands and public safety frequency allocations within unified distribution platforms.
These components function as passive devices that require no external power while delivering consistent performance across wide frequency ranges. The balanced power division ensures equal signal distribution to all output ports while maintaining the isolation necessary to prevent interference between connected devices or coverage zones.
Advanced Low-PIM Performance Architecture
Exceptional Passive Intermodulation Mitigation
ADRF splitters incorporate sophisticated passive intermodulation mitigation techniques that achieve performance specifications as exceptional as -161 dBc at 2 x 43 dBm. This advanced performance level ensures clean operation in demanding multi-carrier environments where multiple high-power signals operate simultaneously within close proximity.
Passive intermodulation distortion occurs when multiple signals mix within non-linear junctions, creating unwanted interference products that can degrade system performance and create regulatory compliance challenges. ADRF’s precision manufacturing processes, advanced material selection, and optimized mechanical design eliminate sources of non-linearity that contribute to PIM generation.
Key PIM Mitigation Features:
- Precision-machined RF connections ensuring optimal electrical contact integrity
- Advanced material selection eliminating ferromagnetic and non-linear elements
- Optimized mechanical design minimizing current density variations and junction stress
- Comprehensive quality control testing verifying PIM performance across operational parameters
Comprehensive Frequency Coverage
The ADRF splitter platform provides comprehensive frequency coverage that addresses all major commercial cellular bands, public safety allocations, and emerging 5G spectrum requirements. This universal approach eliminates the need for multiple specialized components while ensuring compatibility with diverse system architectures and future technology evolution.
Frequency Range Specifications:
- Premium 4.3-10 Models: 578-2700 MHz providing extended low-frequency coverage
- Cost-Effective N-Type Models: 690-2700 MHz covering essential commercial and public safety bands
- Public Safety Compatibility: Complete coverage of 700 MHz, 800 MHz, VHF, and UHF allocations
- Commercial Service Support: Full compatibility with LTE, 5G, PCS, AWS, WCS, and BRS spectrum
Comprehensive Product Portfolio
The ADRF splitter family encompasses specialized models optimized for different power distribution requirements and deployment scenarios, providing flexibility to address diverse system architectures while maintaining consistent performance standards across all configurations.

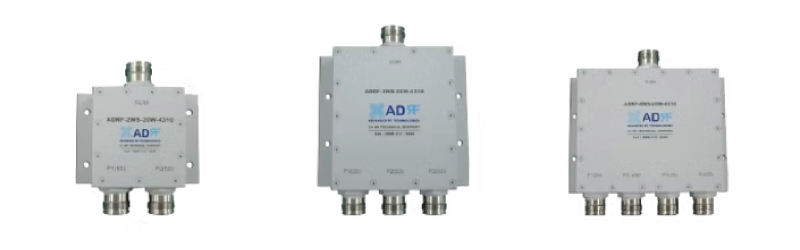

ADRF-xWS-20W-4310 Series: Premium Performance Solutions
The ADRF-xWS-20W-4310 series represents the premium tier of ADRF’s splitter portfolio, incorporating professional-grade 4.3-10 connectors and enhanced passive intermodulation performance specifications designed for carrier-grade distributed antenna systems.
ADRF-2WS-20W-4310: Two-Way Signal Division
This two-way splitter provides balanced signal division with minimal insertion loss, ideal for applications requiring signal distribution between two coverage zones or system components.
Technical Performance Specifications:
- Frequency Coverage: 578-2700 MHz providing comprehensive spectrum support
- Insertion Loss: Maximum 3.6 dB ensuring minimal signal degradation
- VSWR Performance: Maximum 1.25:1 ensuring excellent impedance matching
- Amplitude Balance: Maximum 0.4 dB variation between output ports
- Isolation: Minimum 20 dB preventing interference between outputs
Advanced PIM Performance:
- PIMD Specification: -161 dBc at 2 x 43 dBm for exceptional multi-carrier compatibility
- Power Handling: 20W average, 200W peak capability supporting high-power applications
- Temperature Range: -40°F to +185°F extreme operational capability
Professional Construction:
- Compact Design: 2.68 x 3.7 x 1.25 inches enabling flexible installation
- Lightweight Profile: 0.79 lbs facilitating straightforward deployment
- Environmental Protection: NEMA-4X (IP65) rating for reliable operation
- Professional Connectivity: 4.3-10 Female connectors ensuring secure connections
ADRF-3WS-20W-4310: Three-Way Distribution
The three-way configuration addresses applications requiring signal distribution across three coverage zones while maintaining balanced power division and exceptional isolation characteristics.
Optimized Three-Way Performance:
- Insertion Loss: Maximum 5.5 dB accounting for three-way power division
- Enhanced Matching: Maximum 1.2:1 VSWR for optimal performance
- Balanced Distribution: Maximum 0.6 dB amplitude variation ensuring uniform coverage
- Identical PIM: -161 dBc performance maintaining multi-carrier compatibility
Professional Installation Features:
- Increased Footprint: 4.35 x 4.96 x 1.25 inches accommodating three-way circuitry
- Professional Weight: 1.58 lbs indicating substantial construction quality
- Matching Environmental: NEMA-4X (IP65) protection for consistent deployment flexibility
ADRF-4WS-20W-4310: Four-Way Signal Management
The four-way splitter provides comprehensive signal distribution for applications requiring coverage across four zones while maintaining the performance standards essential for reliable wireless communications.
Four-Way Distribution Excellence:
- Maximum Insertion Loss: 7.0 dB reflecting four-way power division requirements
- Precise Matching: Maximum 1.3:1 VSWR ensuring optimal power transfer
- Consistent Balance: Maximum 0.6 dB amplitude variation maintaining coverage uniformity
- Professional PIM: -161 dBc specification supporting demanding applications
Robust Construction:
- Comprehensive Dimensions: 5.8 x 4.3 x 1.25 inches accommodating complex circuitry
- Substantial Build: 2.11 lbs reflecting professional-grade construction
- Environmental Consistency: NEMA-4X (IP65) protection matching series standards

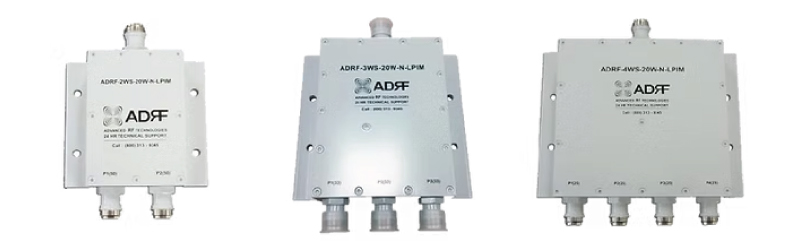

ADRF-xWS-20W-N-LPIM Series: Cost-Effective Solutions
The ADRF-xWS-20W-N-LPIM series provides cost-effective signal distribution solutions while maintaining professional performance standards and comprehensive frequency coverage essential for reliable wireless infrastructure applications.
ADRF-2WS-20W-N-LPIM: Budget-Conscious Two-Way Solution
This cost-effective two-way splitter delivers reliable performance with N-Type connectivity, ideal for applications where budget considerations require optimization without compromising essential performance characteristics.
Performance Specifications:
- Frequency Range: 690-2700 MHz covering essential commercial and public safety bands
- Insertion Loss: Maximum 3.6 dB matching premium series performance
- VSWR: Maximum 1.25:1 ensuring excellent impedance characteristics
- Amplitude Balance: Maximum 0.4 dB variation maintaining uniform distribution
Cost-Optimized Features:
- PIMD Performance: -153 dBc at 2 x 43 dBm providing reliable multi-carrier support
- Power Capability: 20W average, 200W peak matching premium specifications
- Temperature Range: -40°F to +185°F identical to premium series
- N-Type Connectivity: N-Type Female connectors reducing system cost
Efficient Construction:
- Optimized Dimensions: 3.7 x 3.2 x 1.2 inches balancing size and performance
- Lightweight Design: 0.8 lbs enabling flexible installation approaches
- Environmental Protection: NEMA4X (IP65) rating ensuring reliable operation
ADRF-3WS-20W-N-LPIM and ADRF-4WS-20W-N-LPIM: Extended Cost-Effective Options
The three-way and four-way N-Type variants provide corresponding performance characteristics with identical insertion loss, VSWR, and PIM specifications while incorporating N-Type connectivity for budget-conscious deployments.
Consistent Performance Standards:
- Three-Way: 5.5 dB insertion loss, 1.25:1 VSWR, 5.0 x 4.6 x 1.3 inches, 1.43 lbs
- Four-Way: 7.0 dB insertion loss, 1.3:1 VSWR, 6.2 x 4.5 x 1.2 inches, 1.72 lbs
- Unified Specifications: -153 dBc PIM, 20W/200W power, NEMA4X protection
Strategic Applications and System Integration
Commercial Distributed Antenna Systems
Modern commercial DAS deployments require precise signal distribution that maintains consistent power levels across multiple coverage zones while supporting diverse wireless services and carrier requirements.
- Multi-Zone Coverage: ADRF splitters enable efficient signal distribution across multiple floors, wings, or coverage areas within commercial facilities while maintaining the balanced power distribution necessary for uniform coverage quality. The low insertion loss characteristics preserve precious signal strength while exceptional isolation prevents interference between coverage zones.
- Carrier Aggregation Support: The comprehensive frequency coverage and exceptional PIM performance enable reliable support for carrier aggregation technologies that enhance user experience by combining multiple frequency bands. Advanced splitter performance ensures clean operation even when multiple high-power signals operate simultaneously within shared distribution infrastructure.
- Future Technology Readiness: The extended frequency coverage through 2700 MHz ensures compatibility with emerging 5G technologies and spectrum allocations while the robust construction and environmental protection provide long-term reliability throughout technology evolution cycles.
Public Safety ERCES Implementation
Emergency Responder Communication Enhancement Systems demand exceptional reliability and performance standards where signal distribution directly impacts emergency responder safety and operational effectiveness.
- Multi-Band Distribution: ADRF splitters enable efficient distribution of public safety signals across 700 MHz, 800 MHz, VHF, and UHF frequency bands while maintaining the isolation standards necessary for regulatory compliance. The low PIM performance prevents interference that could compromise emergency communications during critical situations.
- Power Handling Capability: The 20W average power rating supports high-power public safety applications while the 200W peak specification accommodates transient power conditions characteristic of emergency communications equipment. Environmental protection ensures reliable operation during emergency situations when communications become most critical.
- Code Compliance Support: The professional construction and comprehensive performance documentation facilitate regulatory approval processes while ensuring long-term compliance with evolving public safety communication standards including NFPA, IFC, and UL requirements.
Enterprise and Campus Networks
Large-scale enterprise deployments require signal distribution solutions that address diverse communication requirements while providing the reliability and performance necessary for business-critical applications.
- Scalable Architecture: The multiple splitter configurations enable flexible system architectures that accommodate organic growth and changing coverage requirements without requiring complete infrastructure replacement. Modular distribution approaches protect technology investments while maintaining optimal performance characteristics.
- Multi-Service Integration: The comprehensive frequency coverage enables simultaneous distribution of cellular, public safety, and specialized wireless services within unified infrastructure platforms that reduce installation complexity and ongoing maintenance requirements.
- Environmental Adaptability: The NEMA-4X environmental protection enables deployment across diverse indoor and outdoor environments while the extended temperature range ensures reliable operation under challenging conditions characteristic of industrial and campus applications.
Advanced Engineering and Quality Assurance
Precision Manufacturing Excellence
ADRF splitters incorporate advanced manufacturing techniques and quality control processes that ensure consistent performance characteristics and long-term reliability across diverse deployment environments.
- RF Design Optimization: Computer-aided design techniques optimize electrical performance while precision manufacturing processes maintain the tight tolerances essential for achieving specified insertion loss, VSWR, and PIM characteristics across production runs.
- Material Science Applications: Advanced material selection and processing techniques minimize passive intermodulation generation while ensuring mechanical durability and environmental resistance throughout extended operational lifecycles.
- Quality Control Systems: Comprehensive testing procedures verify all performance specifications before shipment while statistical process control methods ensure consistent quality and reliability across all production units.
Comprehensive Performance Verification
- Electrical Testing: All splitter products undergo extensive RF performance testing that verifies insertion loss, VSWR, isolation, amplitude balance, and PIMD specifications across operational frequency ranges while ensuring consistent quality and reliability standards.
- Environmental Validation: Temperature cycling, humidity exposure, and mechanical stress testing ensure reliable operation under specified environmental conditions while maintaining long-term performance stability throughout demanding deployment scenarios.
- Power Handling Verification: High-power testing confirms specified power handling capabilities while thermal analysis ensures reliable operation under maximum power conditions without performance degradation or reliability compromise.
Professional Implementation and Expert Guidance
The ADRF Splitter portfolio is just one part of MCA’s comprehensive wireless infrastructure solutions, essential for effective BDA-DAS deployments. Our experienced engineering teams ensure the right splitter selection through detailed system analysis and coverage planning, with options spanning ADRF and other trusted partners in our network. We offer customized signal distribution solutions designed to optimize performance and meet your unique operational needs.
Contact MCA to explore how ADRF Splitters or other partner technologies can enhance your wireless signal distribution.
