Connecting SCADA, IoT, and Mass Notification Systems Through Intelligent Edge Technology
From the farthest field station to the heart of an urban command center, organizations that depend on SCADA-based systems and mass notification platforms face a single, unwavering demand: seamless, resilient connectivity that never falters when it matters most. MCA’s partnership with Motorola Solutions brings forward a pivotal technology designed to meet these exact needs. The challenge often lies in unifying disparate communication networks while ensuring data security and operational continuity, especially in remote or demanding locations.

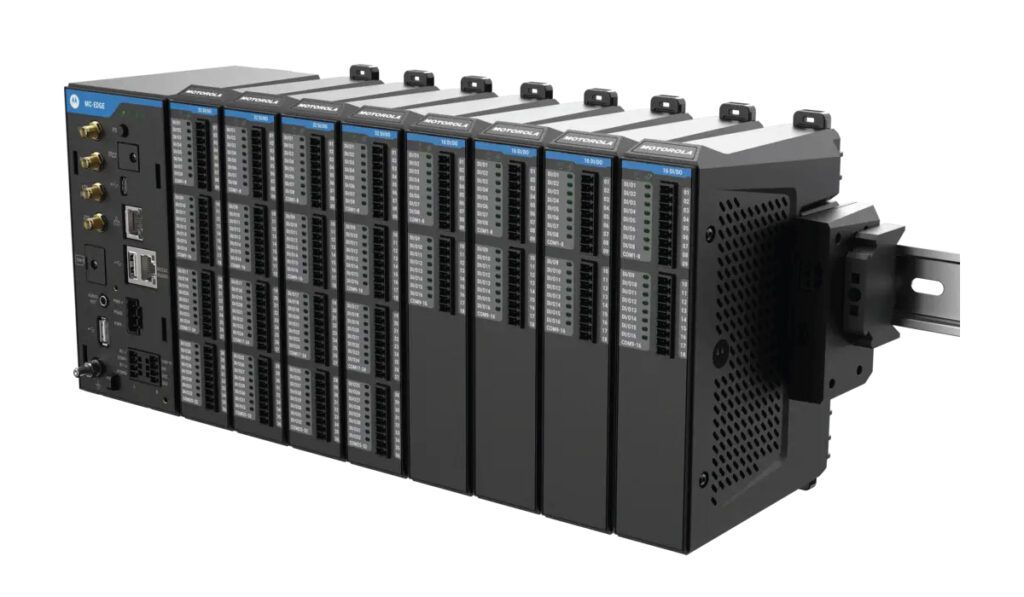

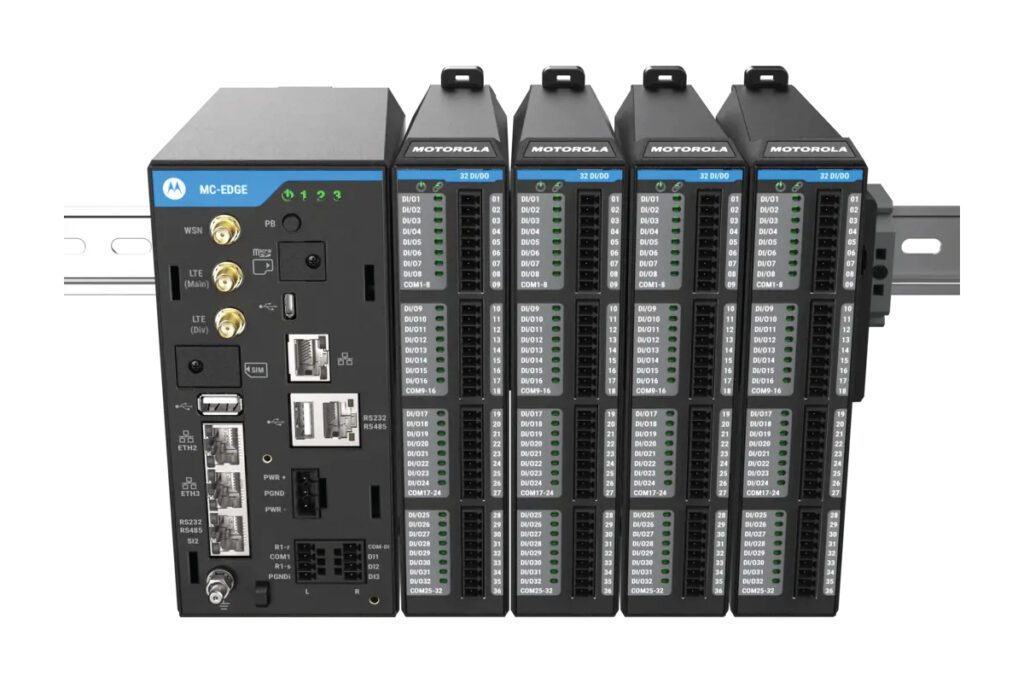

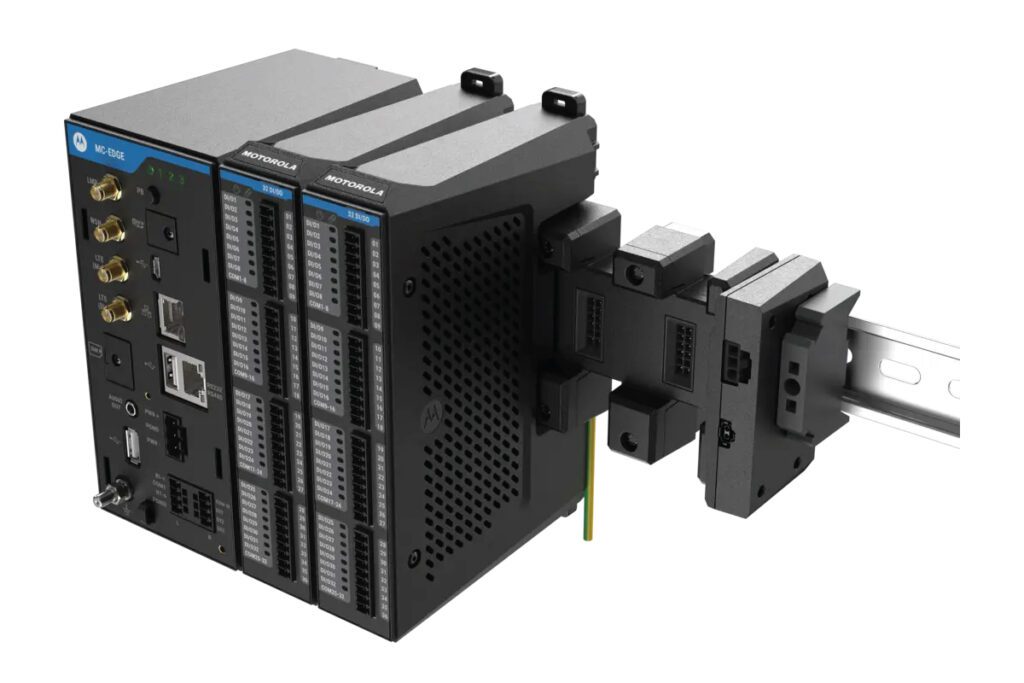

So, what is the solution to this complex connectivity puzzle? It is the MC-Edge Intelligent IoT Gateway. This device acts as a powerful hub for mission-critical Internet of Things (IoT) and SCADA connections, sitting at the network’s edge to process, analyze, and act on data from hundreds of wired and wireless devices. It is engineered to provide seamless integration, robust security, and reliable performance, ensuring your critical systems are always connected and responsive.
Unmatched Communication Versatility
The primary strength of the MC-Edge gateway is its ability to operate across a diverse array of communication networks. This network-agnostic design ensures your operations remain connected even when a single communication path is compromised, providing essential redundancy for mission-critical applications. For SCADA and mass notification systems, this means enhanced reliability and a wider operational reach.
The MC-Edge supports multiple key communication technologies:
Land Mobile Radio (LMR)
With native support for both MOTOTRBO and ASTRO P25 systems, the gateway integrates directly into existing two-way radio networks. This allows organizations to leverage their existing LMR infrastructure for data backhaul, a cost-effective, highly reliable option for monitoring and control.
LoRaWAN
This low-power, long-range protocol is ideal for connecting sensors and devices spread over wide geographic areas where power and traditional network coverage are scarce. MC-Edge functions as a LoRaWAN gateway, aggregating data from remote sensors and backhauling it over more robust networks like LMR or LTE.
LTE (Public and Private)
The built-in LTE modem offers high-speed, reliable wireless backhaul. It can connect to public cellular networks for broad coverage or to private LTE networks for enhanced security, control, and dedicated bandwidth, crucial for critical data transmission.
MDLC Protocol
The Motorola Data Link Communication (MDLC) protocol enables the gateway to link distant sites for easy scaling. It also provides alternative communication links for fallback scenarios, eliminating the need for costly custom programming or additional infrastructure.
Ethernet
For fixed locations, the gateway’s Ethernet ports provide a stable, high-bandwidth connection to fiber or other wired networks, ensuring fast, reliable data transfer for local operations.
The gateway’s support for a variety of purpose-built I/O modules, including digital and analog inputs/outputs (DI/DO), allows it to connect directly to a wide range of industrial sensors and control equipment. This modularity enables you to build a complete solution in which data from your networked devices is seamlessly collected and transmitted over the most suitable communication path.
Enhanced Operations with Edge Computing
The MC-Edge is more than just a communication hub; it is a powerful remote terminal unit (RTU) with significant edge computing capabilities. Processing data directly at the network edge fundamentally changes how your systems respond to real-time events.
Activities like data filtering, analytics, decision-making, and logging are handled locally on the device. This provides several key advantages:
- Immediate Response: Critical decisions can be made instantly without waiting for data to travel to a central server and back. For a SCADA system monitoring critical infrastructure, this can mean the difference between a minor issue and a major failure.
- Reduced Network Load: By filtering and aggregating data at the source, the gateway reduces the amount of information that needs to be sent over the backhaul network. This optimizes bandwidth usage and lowers operational costs, especially over cellular or satellite links.
- Increased Efficiency: The gateway’s ability to act on real-time events autonomously enhances overall system responsiveness and operational efficiency.
Mission-Critical Security by Design
For any organization managing critical infrastructure, security is non-negotiable. The MC-Edge gateway is engineered with a multi-layered security framework to protect your systems from evolving threats.
The device will automatically monitor for malicious activity and security policy violations, allowing only legitimate, authenticated traffic to enter the network while blocking and logging unauthorized attempts. Key security components include:
- AES 256-bit Encryption: This military-grade encryption protects your sensitive data end-to-end, whether it is at rest on the device or in transit across the network.
- Centralized Authentication and Key Management: Secure hardware key storage and protocols like SCEP PKI ensure that both users and machines are properly authenticated before gaining access to the network.
- Access Control and Policy Enforcement: The gateway enforces strict access control policies, ensuring that only authorized personnel and systems can interact with your critical infrastructure.
Additionally, the MC-Edge gateway meets other critical compliance and interoperability requirements, including:
Applications in SCADA and Mass Notification
The MC-Edge gateway’s versatility and security make it an ideal solution for a wide range of applications. Its ability to integrate with diverse sensors and communication networks makes it a backbone for sophisticated monitoring and control systems.
A prime example is its use in early warning siren systems, such as OptiWarn. In this application, the MC-Edge can:
- Integrate with environmental sensors to detect threats like severe weather.
- Manage and control a community-wide network of sirens and emergency alerts.
- Utilize redundant communication paths (e.g., LMR and LTE) to ensure alerts are delivered even if one network fails.
This gives emergency managers a reliable platform to protect communities by providing citizens with the critical time needed to take shelter. Similarly, in SCADA operations for utilities or transportation, the MC-Edge can monitor remote assets, control physical site access, and manage alarms with unmatched reliability.
The Partner of Choice for Critical Solutions
The Motorola Solutions MC-Edge Intelligent IoT Gateway provides a robust, secure, and highly versatile platform for unifying your SCADA and mass notification systems. Its ability to operate across multiple communication networks, combined with powerful edge computing and mission-critical security, ensures your operations remain connected and responsive, no matter the circumstances.
At MCA, we are committed to being the partner of choice for implementing these advanced solutions. Our expert teams work with you to design and deploy systems that are tailored to your unique operational requirements. The MC-Edge gateway is a key part of our larger portfolio of voice, data, and security solutions. To determine whether this gateway or another solution from our extensive offerings is the best fit for your organization, a detailed consultation with our specialists is the next step.
Frequently Asked Questions About MC-Edge
MC-Edge is a rugged, multi-network IoT gateway from Motorola Solutions that unifies communications across SCADA, IoT, and mass notification systems. It provides reliable connectivity using LMR, LTE, LoRaWAN, and Ethernet networks.
The gateway offers multi-path redundancy. If one communication channel fails, another automatically takes over, ensuring continuous data flow for critical applications such as infrastructure monitoring and emergency alerts.
Yes. MC-Edge natively supports MOTOTRBO™ and ASTRO P25 networks, allowing organizations to extend their existing radio infrastructure for data backhaul and remote asset control.
It incorporates AES-256 encryption, centralized authentication, and hardware key storage. These layers of security ensure compliance with federal and industrial cybersecurity standards like NERC-CIP.
By processing data locally at the edge, MC-Edge reduces latency and bandwidth consumption, enabling faster, automated decision-making for SCADA systems – ideal for utilities, water management, and industrial control.
MC-Edge supports early warning systems (e.g., OptiWarn siren networks), smart grid automation, remote site monitoring, and municipal IoT networks that require multi-network, always-on connectivity.
