ADRF SDR-ICS Series: High-Power Modular Repeaters with Interference Cancellation
Modern wireless networks face increasingly complex coverage challenges that demand solutions capable of bridging the gap between indoor distributed antenna systems and outdoor macro coverage. Large venues, industrial facilities, and public safety networks require repeater platforms that deliver substantial RF output while maintaining the modular flexibility essential for diverse deployment scenarios. The ADRF SDR-ICS Series addresses these requirements through an innovative hybrid approach that combines proven modular architecture with advanced interference cancellation technology.
Through our strategic partnership with Advanced RF Technologies, MCA delivers these sophisticated high-power repeater solutions, supported by our comprehensive engineering expertise and service-first approach to implementation and lifecycle support.
What is the ADRF SDR-ICS Series?
The ADRF SDR-ICS Series represents a revolutionary advancement in high-power digital repeater technology, engineered specifically to combine the modular flexibility of ADRF’s celebrated SDR Series with the high-output performance capabilities of the ICS Series. This hybrid platform delivers up to 95 dB of system gain and 43 dBm composite output power while incorporating patented Interference Cancellation System technology that ensures clean signal delivery even in congested RF environments.
The platform’s modular structure supports any combination of frequency bands within a single chassis, with each module functioning as a fully independent repeater complete with its own power supply. This architecture enables quad-band service capabilities while providing unprecedented flexibility for commercial carrier deployments, public safety networks, and hybrid applications requiring both commercial and mission-critical coverage.
Advanced Interference Cancellation Technology
Patented ICS Innovation
The defining characteristic of the SDR-ICS Series is its patented Interference Cancellation System, which actively mitigates signal interference rather than simply attempting to avoid it through traditional filtering methods. This technology enables reliable operation in high-density RF environments where conventional repeaters experience degraded performance or oscillation risks.
Core ICS Capabilities:
- Active interference cancellation eliminates adjacent channel contamination
- Real-time signal processing maintains clean output across all supported bands
- Dynamic adaptation to changing RF conditions ensures consistent performance
- Oscillation prevention through intelligent feedback loop management
The system operates by continuously analyzing incoming signals and applying sophisticated digital signal processing algorithms to identify and eliminate interference components while preserving desired signal integrity. This approach proves particularly effective in urban deployments, DAS-fed systems, and public safety networks where spectrum efficiency demands optimal performance.
Digital Signal Processing Architecture
The SDR-ICS platform incorporates advanced digital filtering with sharp roll-off characteristics that exceed 50 dBc at 1 MHz outside the passband. This precision filtering, combined with the interference cancellation capabilities, ensures reliable performance across diverse deployment scenarios.
Technical Performance Specifications:
- System Gain: 55-95 dB with 0.5 dB step resolution
- Gain Tolerance: ±1 dB across full operating range
- Frequency Stability: ±0.05 ppm for precise channel alignment
- Automatic Level Control: 20 dB dynamic range for optimal signal management
- Noise Figure: ≤5 dB at 95 dB gain, ≤8 dB at 73 dB gain, ≤12 dB at 65 dB gain
Comprehensive Product Portfolio
The SDR-ICS Series encompasses a complete range of frequency-specific modules designed to address diverse commercial and public safety requirements across the cellular spectrum.
Low-Band and Mid-Band Solutions
SDR-ICS-43-6 (600 MHz Band)
- Frequency Coverage: 617-652 MHz downlink, 663-698 MHz uplink
- Applications: Extended LTE coverage for challenging propagation environments
- Filter Configuration: Up to 2 simultaneous bands in ICS mode, 3 bands in standard mode
- Band Selection: 5-20 MHz for LTE, 2.5-20 MHz for CDMA, 5-20 MHz for WCDMA
SDR-ICS-43-7L (700 MHz Lower Band)
- Frequency Coverage: 728-746 MHz downlink, 698-716 MHz uplink
- Applications: Public safety and commercial LTE operations in lower 700 MHz spectrum
- Performance: Optimized for FirstNet compatibility and public safety interoperability
SDR-ICS-43-7U (700 MHz Upper Band)
- Frequency Coverage: 746-768 MHz downlink, 776-798 MHz uplink
- Applications: Commercial LTE deployments in upper 700 MHz bands
- Enhanced Performance: Superior uplink and downlink balance for extended coverage
SDR-ICS-43-7FN (FirstNet Optimized)
- Frequency Coverage: 728-768 MHz downlink, 698-716 MHz and 776-798 MHz uplink
- Applications: Mission-critical public safety communications with FirstNet Band 14 support
- Compliance: Full FirstNet certification for emergency responder networks
- Advanced Features: Dedicated public safety filtering and priority handling
SDR-ICS-43-S8C (SMR 800/Cellular)
- Frequency Coverage: 862-894 MHz downlink, 817-849 MHz uplink
- Applications: Traditional SMR and extended 800 MHz cellular services
- Performance Characteristics: Optimized for legacy voice systems and modern LTE deployments
High-Band and Capacity Solutions
SDR-ICS-43-P (PCS 1900 MHz)
- Frequency Coverage: 1930-1995 MHz downlink, 1850-1915 MHz uplink
- Applications: High-capacity commercial LTE and 5G NR deployments
- Performance Features: Enhanced for dense user environments and capacity applications
SDR-ICS-43-A (AWS 1700/2100 MHz)
- Frequency Coverage: 2110-2155 MHz downlink, 1710-1755 MHz uplink
- Applications: Mid-band LTE and 5G services widely deployed by major carriers
- Technical Specifications: Optimized delay characteristics for both LTE and advanced services
SDR-ICS-43-W (WCS 2300 MHz)
- Frequency Coverage: 2350-2360 MHz downlink, 2305-2315 MHz uplink
- Applications: Wireless Communications Service spectrum deployments
- Specialized Performance: Single-band operation with ICS enhancement
SDR-ICS-43-BT (BRS TDD 2500 MHz)
- Frequency Coverage: 2496-2690 MHz (TDD operation)
- Applications: Next-generation LTE and 5G deployments with flexible duplex arrangements
- Advanced Capabilities: Support for 20/40/60 MHz channel bandwidths
- 5G Readiness: Enhanced delay characteristics (2.4 μs for 5G NR, 4 μs for LTE)
System Architecture and Integration

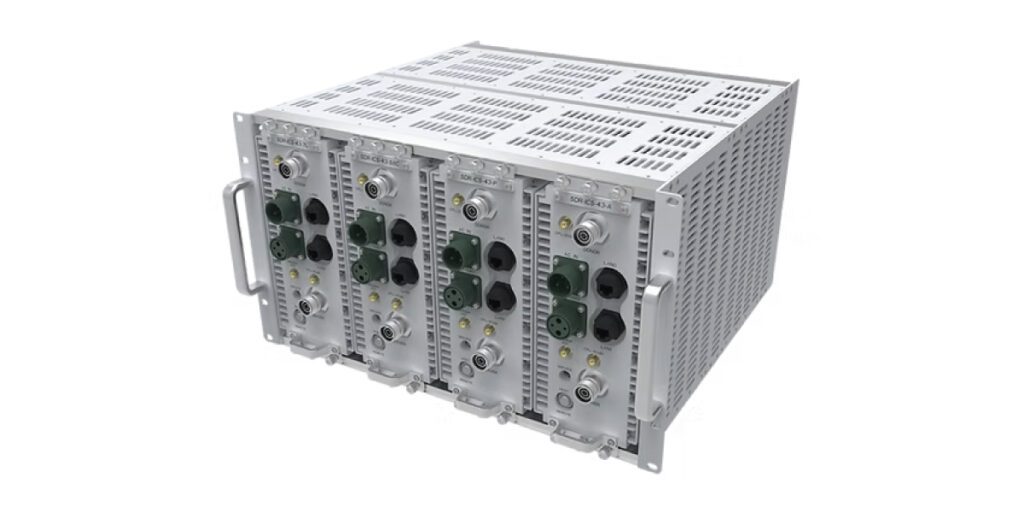

Modular Platform Design

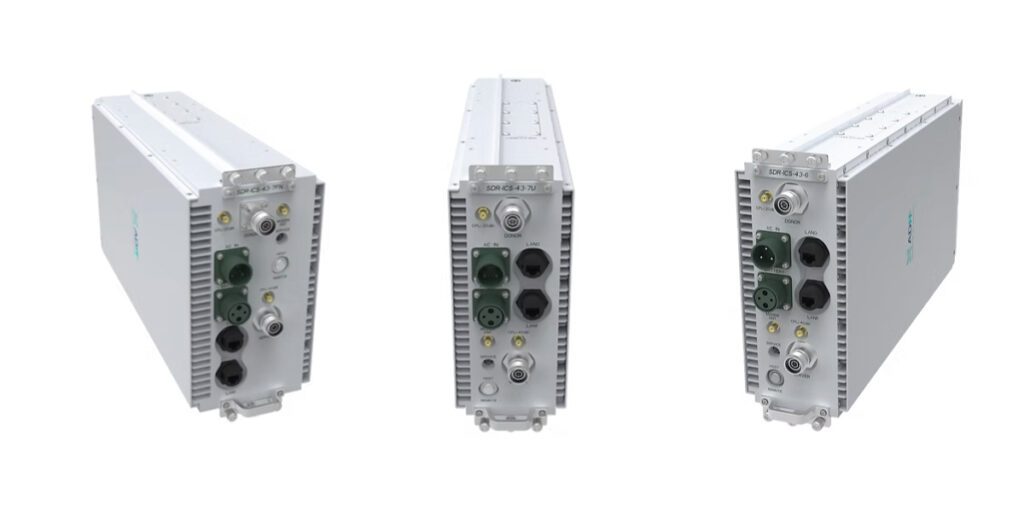

Each SDR-ICS module operates as a fully functional repeater with independent power supply capabilities, enabling flexible system configurations that adapt to specific coverage requirements without compromising performance or reliability.
Chassis Specifications:
- Dimensions: 19.0 x 10.5 x 17.0 inches (482 x 266.5 x 430 mm)
- Mounting Options: 19-inch rack, wall mount, or pole mount configurations
- Environmental Rating: IP66 for outdoor installations
- Operating Temperature: -22°F to +131°F (-30°C to +55°C)
- Cooling System: Active fan-based cooling for reliable operation
Module Specifications:
- Standard Modules: 4.18 x 10.34 x 17.73 inches (106 x 262.5 x 450 mm)
- FirstNet Module: 5.28 x 10.34 x 17.73 inches (134 x 262.5 x 450 mm)
- Weight: 30.8 lbs (14 kg) standard modules, 39.68 lbs (18 kg) FirstNet module
- RF Connectivity: 4.3-10 Female connectors for professional-grade connections
Network Management and Control
The platform incorporates ADRF’s renowned web-based graphical user interface, providing comprehensive system management capabilities without requiring specialized software or extensive technical training.
Management Features:
- Local Interface: RJ-45 Ethernet connectivity for direct system access
- Remote Monitoring: Internal or external modem support for remote management
- SNMP Integration: Full SNMP trap support for network management system integration
- Daisy-Chain Capability: Multiple modules managed from single interface point
- Real-Time Alarming: Immediate notification of system conditions requiring attention
Band Equalization Function:
The advanced band equalization capability enables balanced performance across multiple subchannels within a single module, ensuring optimal coverage distribution while maintaining signal integrity across diverse frequency allocations.
Performance Specifications and Compliance
RF Performance Standards
Output Power Management:
- Maximum Composite Power: +43 dBm across all frequency bands
- Power Control Range: 20 dB automatic level control for optimal signal management
- Spurious Emissions Compliance: Meets stringent regulatory requirements across all bands
Signal Quality Metrics:
- Error Vector Magnitude: Complies with 3GPP 36.106, 3GPP TS 36.104, and 3GPP TS 36.141 standards
- Group Delay Performance: <4 μs for LTE, <2.4 μs for 5G NR, <7.2 μs for CDMA
- Gain Flatness: ±1.5 dB across full band, ±0.05 ppm frequency accuracy
Environmental and Installation Requirements
Power and Environmental Specifications:
- AC Power Input: 100-240V, 45-65 Hz with circuit protector
- Battery Backup: +24V DC input capability
- Power Consumption: <250W standard operation, <236W for BT variant
- Humidity Tolerance: 5-90% relative humidity
- Weather Resistance: IP66 rating ensures reliable outdoor operation
Strategic Applications and Deployment Scenarios
Commercial Carrier Networks
The SDR-ICS Series excels in commercial deployments where high-power output and interference cancellation capabilities address complex coverage challenges:
- Enterprise Campus Environments: Large corporate facilities, industrial complexes, and educational institutions benefit from the platform’s ability to deliver consistent coverage across expansive areas while maintaining signal quality in RF-congested environments.
- Urban Dense Deployments: Metropolitan areas with high interference levels and spectrum congestion require the advanced ICS technology to maintain reliable service quality across multiple carrier networks.
- Transportation Infrastructure: Airports, transit stations, and highway corridors demand high-power solutions capable of penetrating challenging structural environments while supporting high user densities.
Public Safety Networks
- FirstNet Compliance: The SDR-ICS-43-7FN module delivers full FirstNet Band 14 support, ensuring mission-critical public safety communications maintain priority access and enhanced coverage reliability.
- Multi-Agency Interoperability: The platform’s modular architecture enables simultaneous support for diverse public safety frequency bands, facilitating seamless communication across different agencies and jurisdictions.
- Emergency Operations Centers: Critical facilities requiring guaranteed communications during emergencies benefit from the platform’s redundant architecture and interference cancellation capabilities.
Hybrid Commercial and Public Safety Deployments
- Neutral Host Applications: The SDR-ICS Series supports simultaneous commercial carrier and public safety services, enabling cost-effective shared infrastructure deployments.
- Critical Infrastructure Protection: Facilities requiring both commercial connectivity and emergency communications benefit from unified platform management while maintaining service separation.
Installation Flexibility and Deployment Options
Mounting and Installation Configurations
The SDR-ICS platform accommodates diverse installation requirements through multiple mounting options:
- Rack Installation: Standard 19-inch rack compatibility enables integration with existing telecommunications infrastructure while maintaining professional appearance and serviceability.
- Wall Mounting: Direct wall mounting provides flexibility for telecommunications rooms and equipment closets where rack space is limited.
- Pole Mounting: Outdoor pole mounting capabilities enable strategic placement for optimal coverage while maintaining weather protection through IP66 rating.
System Integration and Expansion

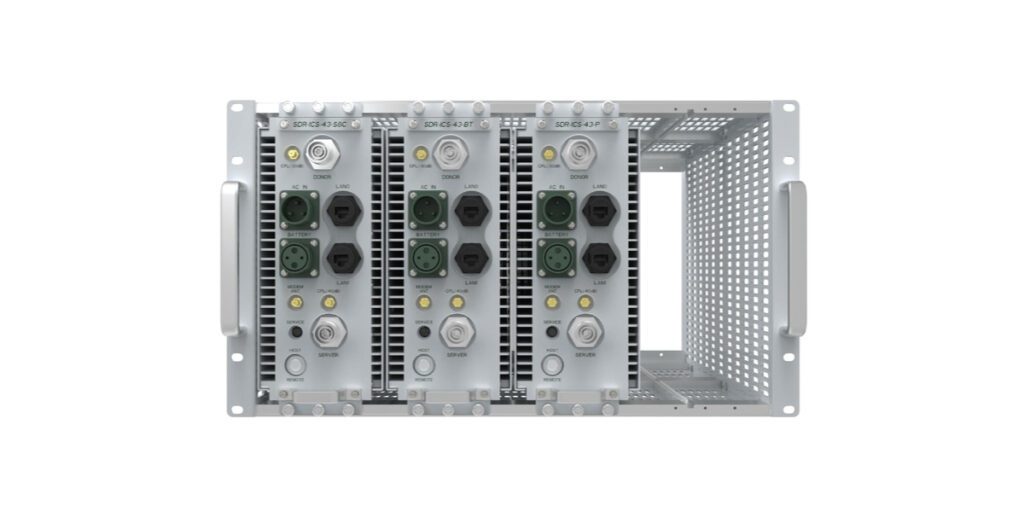

- Modular Scalability: Individual modules can be added or replaced without affecting overall system operation, enabling organic growth and technology evolution without complete system replacement.
- Multi-System Management: Daisy-chain connectivity allows multiple SDR-ICS units to operate under unified management, simplifying large-scale deployments while maintaining granular control.
- Network Integration: Comprehensive SNMP support and web-based management ensure seamless integration with existing network monitoring and management platforms.
Professional Partnership and Expert Implementation
The ADRF SDR-ICS Series represents one component within MCA’s comprehensive portfolio of high-performance wireless infrastructure solutions. Our certified engineering teams conduct thorough site assessments and RF analysis to determine whether the SDR-ICS platform addresses specific coverage challenges or if alternative solutions from our extensive partner network would better serve unique operational requirements.
Our collaborative approach ensures optimal technology selection while providing the professional installation expertise and lifecycle support necessary for sustained performance. Through detailed consultations and comprehensive site surveys, we design customized solutions that resolve complex coverage issues while supporting long-term operational objectives and budget considerations.
The SDR-ICS platform’s combination of high-power output, advanced interference cancellation, and modular flexibility makes it an exceptional solution for demanding applications. However, determining the optimal approach for your specific environment requires professional assessment of RF conditions, coverage requirements, regulatory considerations, and integration needs.
Contact MCA today to explore how the ADRF SDR-ICS Series or other solutions from our comprehensive partner portfolio can address your wireless infrastructure challenges. Our expert teams will conduct thorough evaluations of your unique requirements and recommend the most effective approach to achieving reliable, high-performance connectivity, whether through the SDR-ICS platform or alternative technologies better suited to your specific operational environment and coverage objectives.
