ADRF Omni Server Antennas: Low-PIM Multi-Band Solutions for In-Building Coverage
In-building wireless coverage systems depend on every component performing flawlessly to deliver reliable connectivity throughout complex indoor environments. While donor antennas capture signals from outdoor networks and repeaters amplify them, server antennas serve as the final delivery mechanism that ensures enhanced signals reach every corner of a facility. The quality and performance of these server antennas directly impacts user experience, system efficiency, and regulatory compliance across commercial and public safety applications.
Through our strategic partnership with Advanced RF Technologies, MCA delivers ADRF’s comprehensive portfolio of omni server antennas, engineered to provide exceptional multi-band performance while maintaining the low passive intermodulation characteristics essential for modern wireless systems.
What are ADRF Omni Server Antennas?
ADRF Omni Server Antennas represent a specialized family of ceiling-mounted, omnidirectional antennas designed specifically for distributed antenna systems and bi-directional amplifier deployments. These precision-engineered antennas serve as the critical final link in in-building coverage systems, redistributing enhanced RF signals from coaxial distribution networks to wireless devices throughout indoor environments.
The platform encompasses both single-input single-output (SISO) and multiple-input multiple-output (MIMO) configurations, providing comprehensive coverage solutions that support simultaneous multi-carrier, multi-technology operation. With frequency coverage spanning from 617 MHz through 6 GHz, these antennas address all major commercial cellular bands, emerging 5G spectrum allocations, and public safety frequency requirements within unified system architectures.
Advanced Low-PIM Design Architecture
Passive Intermodulation Optimization
The defining characteristic of ADRF omni server antennas is their advanced low-PIM design, engineered to minimize passive intermodulation distortion that can compromise system performance in multi-carrier environments. Passive intermodulation occurs when multiple signals mix within non-linear junctions, creating unwanted interference products that degrade signal quality and reduce system capacity.
ADRF’s specialized design approach incorporates precision manufacturing techniques, premium materials selection, and optimized RF connection systems that minimize PIM generation across all operational frequency bands. This attention to intermodulation performance proves particularly critical in modern cellular deployments where multiple carriers operate simultaneously within close proximity.
Key PIM Mitigation Features:
- Precision-machined RF connections ensuring optimal electrical contact
- Advanced material selection eliminating sources of non-linear behavior
- Optimized antenna element design minimizing current density variations
- Comprehensive quality control testing verifying PIM performance specifications
Multi-Band Frequency Management
The omni server antenna platform incorporates sophisticated frequency management capabilities that enable simultaneous operation across diverse spectrum allocations without degradation or interference. This multi-band capability proves essential for modern DAS deployments that must support multiple carriers, technologies, and service types within unified infrastructure.
Advanced filtering and isolation techniques ensure clean operation across all supported frequency bands while maintaining the gain consistency necessary for reliable coverage distribution. This approach enables cost-effective deployments that consolidate multiple service requirements into single antenna installations.
Comprehensive Product Portfolio

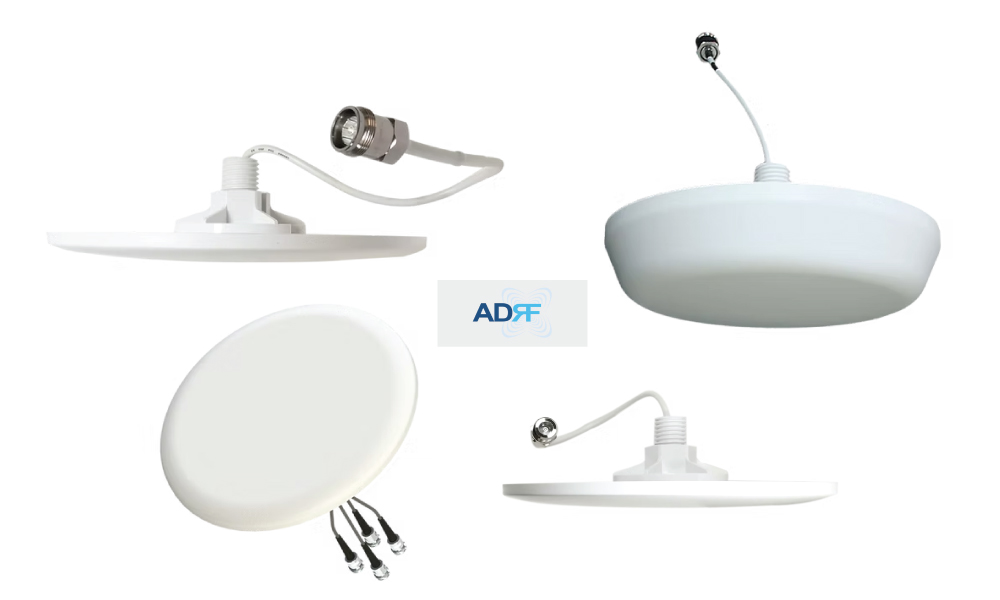

The ADRF omni server antenna family encompasses specialized models optimized for different capacity requirements and deployment scenarios, providing flexibility to address diverse coverage needs while maintaining consistent performance standards.

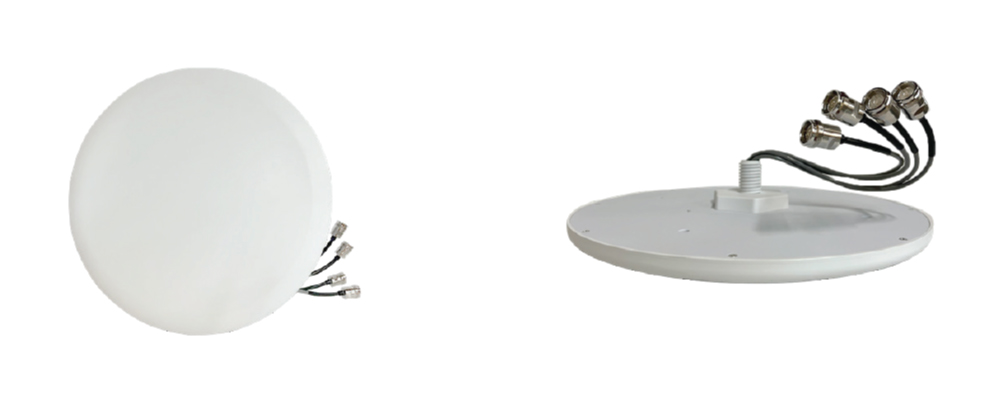

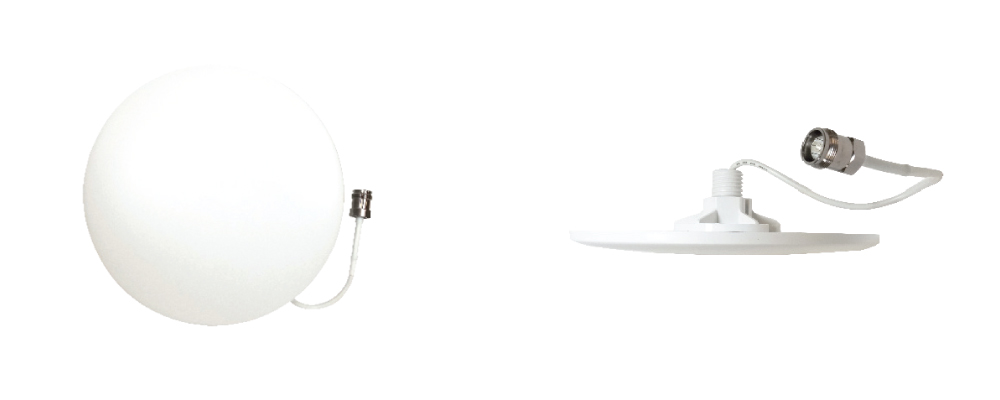

AD-OMNI-4T4R-4310: Advanced 4×4 MIMO Solution
This sophisticated four-port MIMO antenna addresses the demanding requirements of high-capacity cellular deployments by providing comprehensive multi-band support with exceptional isolation characteristics between antenna elements.
Comprehensive Frequency Coverage:
- Public Safety Low-Band: 617-698 MHz with 3.0 dBi gain
- Cellular/SMR Bands: 698-960 MHz with 3.5 dBi gain
- AWS/PCS Combined: 1710-2200 MHz with 4.5 dBi gain
- WCS/BRS Spectrum: 2300-2700 MHz with 5.0 dBi gain
- Mid-Band 5G: 3300-4200 MHz with 5.5 dBi gain
- Upper 5G Bands: 4800-5900 MHz with 6.0 dBi gain
Advanced MIMO Performance:
- Port Isolation: Up to 33 dB between MIMO elements ensuring clean signal separation
- Connector Configuration: Four 4.3-10 Female pigtail connectors for professional installations
- Physical Design: Ultra-slim profile under 1 inch height with 14.2 inch diameter
- Environmental Rating: Indoor installation with wide temperature tolerance
The 4×4 MIMO configuration enables advanced cellular technologies including spatial multiplexing, diversity reception, and beamforming capabilities that significantly enhance system capacity and user experience. The exceptional isolation between antenna ports ensures optimal MIMO performance while supporting carrier aggregation across multiple frequency bands.
AD-OMNI-SISO-4310-X: Wideband Single-Port Solution
Engineered for applications requiring broad frequency coverage within a compact form factor, this single-port antenna delivers exceptional wideband performance spanning traditional cellular through emerging 6 GHz spectrum allocations.
Extended Frequency Specifications:
- Low-Band Coverage: 617-960 MHz with 2.9 dBi gain for extended range
- Mid-Band Performance: 1695-2200 MHz with 4.2 dBi gain for capacity applications
- High-Band Support: 2300-2700 MHz with 4.8 dBi gain for BRS/WCS services
- 5G Mid-Band: 3300-4200 MHz with 5.2 dBi gain for C-band deployments
- Advanced 5G: 4900-6000 MHz with 5.6 dBi gain for next-generation services
Professional Installation Features:
- Power Handling: 70W maximum continuous power rating
- Compact Design: 9.4 x 0.7 inch profile with 1.1 lb weight
- Professional Connectivity: 4.3-10 Female connector for reliable connections
- Future-Ready Coverage: Support for emerging spectrum up to 6 GHz
This antenna proves particularly effective for neutral host deployments and applications requiring comprehensive frequency coverage within space-constrained installations. The extended frequency range ensures compatibility with current and future cellular technologies while the compact design enables discrete installation.

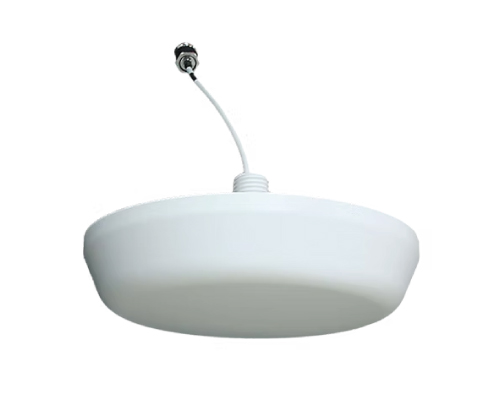

AD-OMNI-SISO-N: Optimized Low-Profile Design
Designed specifically for traditional cellular and public safety applications, this proven antenna design delivers reliable performance across essential frequency bands while maintaining an extremely low-profile installation footprint.
Focused Frequency Coverage:
- Public Safety/Cellular: 698-960 MHz with 2.25-3.5 dBi gain
- Commercial LTE/5G: 1710-2700 MHz with 3.2-4.45 dBi gain
Installation Advantages:
- Ultra-Low Profile: Under 2 inch height with 8.43 inch diameter
- Power Rating: 50W continuous with excellent thermal management
- Flexible Connectivity: N-Type Female with 12 inch pigtail cable
- Proven Reliability: Widely deployed across ERCES and commercial DAS applications
The dual-band design addresses the fundamental requirements of most in-building coverage deployments while the low-profile construction enables installation in height-restricted environments. This antenna has established a proven track record across diverse applications including healthcare facilities, educational institutions, and commercial buildings.
Advanced Performance Characteristics
Omnidirectional Coverage Patterns
All ADRF omni server antennas incorporate precision-designed radiating elements that provide consistent omnidirectional coverage patterns across their operational frequency ranges. This uniform radiation characteristic ensures equal signal strength distribution throughout coverage areas while minimizing nulls and variations that could create coverage gaps.
The circular polarization and consistent gain patterns prove essential for mobile device connectivity where user orientation and movement create constantly changing antenna orientations. This omnidirectional performance ensures reliable connectivity regardless of device positioning or user movement patterns.
Environmental Durability and Reliability
Indoor deployment environments present unique challenges including temperature variations, humidity exposure, and potential physical impacts. ADRF omni server antennas incorporate robust construction designed to maintain performance throughout extended operational lifecycles.
Construction Quality Features:
- Radome Materials: ABS/PC construction providing excellent RF transparency and mechanical protection
- Temperature Tolerance: Wide operational temperature ranges accommodating diverse indoor environments
- Lightweight Design: Minimal ceiling loading while maintaining structural integrity
- Aesthetic Integration: Clean white radome appearance integrating with interior design requirements
Strategic Applications Across Industries
Healthcare and Critical Infrastructure
Healthcare facilities present complex coverage requirements where reliable communications support both operational efficiency and patient safety. ADRF omni server antennas provide the multi-band coverage necessary for diverse communication systems while maintaining the reliability standards essential for critical applications.
- Emergency Communications Support: Public safety compatibility ensures reliable ERCES compliance while supporting both traditional and broadband emergency communications. The low-PIM design prevents interference with sensitive medical equipment while maintaining signal quality standards.
- Operational Connectivity: Multi-band support enables simultaneous operation of diverse communication systems including cellular, Wi-Fi, and specialized healthcare applications without interference or performance degradation.
Educational Institutions and Corporate Environments
Educational campuses and corporate facilities require comprehensive connectivity that supports both administrative operations and user mobility throughout diverse indoor spaces. The omnidirectional coverage patterns ensure consistent service delivery across classrooms, offices, and common areas.
- High-Density Support: MIMO capabilities enable enhanced capacity in high-user-density environments such as lecture halls, conference centers, and cafeterias where traditional coverage solutions may experience congestion.
- Future-Ready Infrastructure: Extended frequency coverage through 6 GHz ensures compatibility with emerging technologies and services while protecting infrastructure investments against technology evolution.
Hospitality and Retail Environments
Guest satisfaction and customer experience increasingly depend on reliable wireless connectivity throughout hospitality and retail facilities. ADRF omni server antennas provide the seamless coverage necessary to support both operational systems and customer connectivity requirements.
- Aesthetic Integration: Low-profile ceiling-mount designs integrate discretely with interior design schemes while providing comprehensive coverage throughout guest areas and operational spaces.
- Multi-Carrier Support: Comprehensive frequency coverage enables support for multiple cellular carriers and wireless services within unified antenna installations, reducing visual impact while maximizing coverage effectiveness.
Public Safety and Emergency Services
Emergency responder communication systems demand exceptional reliability and performance during critical situations when communications become essential for public safety operations. ADRF omni server antennas provide the specialized capabilities necessary for ERCES compliance and emergency communications support.
- ERCES Compliance: Low-PIM design and comprehensive frequency coverage ensure compliance with emergency communication enhancement system requirements while maintaining isolation standards necessary for regulatory approval.
- Mission-Critical Reliability: Robust construction and proven performance characteristics ensure reliable operation during emergency situations when communications become most critical for first responder safety and operational effectiveness.
System Integration and Installation Considerations
Professional Installation Requirements
ADRF omni server antennas incorporate design features that facilitate professional installation while ensuring optimal system performance and long-term reliability. Proper installation techniques prove essential for achieving specified performance characteristics and maintaining system compliance.
- Mounting System Design: Ceiling-mount hardware accommodates diverse architectural requirements while providing secure attachment and proper RF grounding. Installation guidelines ensure optimal placement for coverage distribution and maintenance accessibility.
- Cable Management: Antenna designs accommodate professional cable routing and connection practices while minimizing visual impact and ensuring reliable long-term connectivity. Pigtail configurations provide installation flexibility while maintaining connection integrity.
RF System Optimization
Server antenna placement and configuration significantly impacts overall system performance, requiring careful consideration of coverage requirements, interference potential, and capacity distribution throughout coverage areas.
- Coverage Planning: Omnidirectional patterns require strategic placement to ensure uniform signal distribution while avoiding over-coverage areas that could create interference or capacity inefficiencies.
- System Balance: Power handling capabilities and gain characteristics must align with distribution system design to ensure optimal signal levels throughout coverage areas while maintaining headroom for peak demand scenarios.
Quality Assurance and Performance Verification
Manufacturing Excellence
ADRF omni server antennas undergo comprehensive testing and quality control procedures that verify performance specifications and ensure consistent quality across production runs. This rigorous approach ensures reliable field performance and long-term system reliability.
- RF Performance Testing: Gain measurements, pattern verification, and PIM testing ensure each antenna meets specified performance criteria across operational frequency ranges. VSWR testing verifies impedance matching while isolation testing confirms MIMO performance characteristics.
- Environmental Validation: Temperature cycling, humidity exposure, and mechanical stress testing verify reliable operation under demanding indoor conditions while ensuring long-term performance stability.
- Quality Control Systems: Manufacturing quality control processes ensure consistent performance while final inspection procedures verify compliance with all specifications before shipment.
Professional Partnership and Implementation Excellence
The ADRF Omni Server Antenna portfolio is a key part of MCA’s wireless infrastructure solutions. Our certified engineers specialize in antenna selection, placement optimization, and system integration for diverse indoor environments.
We collaborate with clients to ensure optimal antenna selection through coverage analysis, capacity evaluation, and system design. Whether it’s ADRF antennas or alternatives from our partner network, we tailor solutions to meet unique operational needs.
Our process considers frequency, capacity, environment, aesthetics, and integration requirements to optimize signal coverage and long-term performance. Contact MCA to explore how we can enhance your in-building wireless coverage with customized, high-performance solutions.
