Visual Alerting Enhancements for Whelen Siren Platforms
Strengthening Emergency Communication with ADA-Compliant Strobe Integration
When seconds matter, visibility saves lives. For decades, Whelen Engineering has set the standard in outdoor mass notification systems with high-powered acoustic sirens designed for fire stations, municipalities, military bases, and critical infrastructure. However, in modern emergency communication, audio alone is no longer sufficient. To meet evolving standards in accessibility, compliance, and response clarity, Whelen’s siren platforms—including the FIREHOUSE™, Omni-Alert™, and WPS2900 Series—are equipped with rugged visual alerting enhancements engineered to ensure critical messages are both heard and seen.
The Need for Visual + Audio Alerting
While traditional sirens provide wide-area audible coverage, the Americans with Disabilities Act (ADA) and NFPA guidelines emphasize the importance of complementary visual signals. These signals support hearing-impaired individuals and ensure comprehensive site-wide alerting. Whether deployed in residential neighborhoods, industrial zones, or military installations, Whelen’s integrated strobe systems deliver synchronized light signals that reinforce the urgency and directionality of audible warnings—especially in high-noise or high-risk environments.

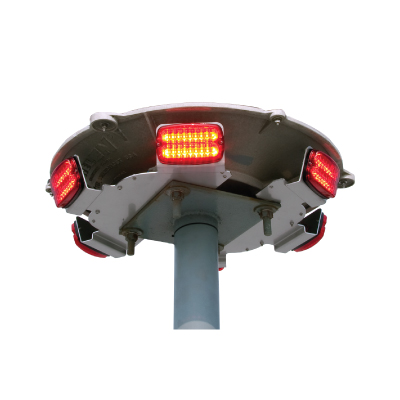

VisuAlert™ System
360-Degree LED Visual Compliance for Outdoor Siren Platforms
At the core of Whelen’s visual alerting strategy is the VisuAlert™ System, an engineered strobe array designed to seamlessly integrate with WPS2900 and Omni-Alert siren units. Featuring six M6 Series Super-LED® modules mounted in a circular formation, the VisuAlert system emits synchronized 360-degree flashing patterns in selectable colors, including red, blue, amber, or clear.
- Automatic Activation: Triggered in parallel with siren tones to provide simultaneous light and sound coverage.
- High Intensity: Each strobe delivers over 6,000 peak candela, ensuring visibility even in full daylight.
- Weatherproof Engineering: Constructed with stainless steel mounting hardware and waterproof wiring for year-round durability.
- ADA-Ready: Elevates the platform to full audio-visual compliance, supporting broader emergency communication mandates.

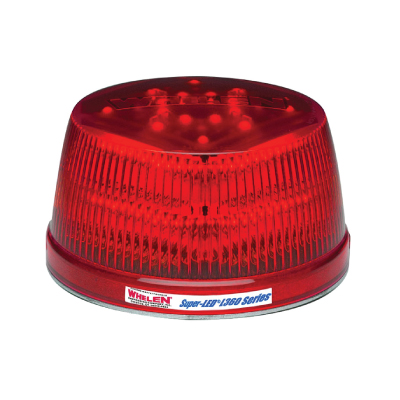

L31 & L32 Series LED Beacons
Modular Visual Enhancements for Custom Deployment
Whelen’s L31 and L32 Series Super-LED® Beacons offer a versatile alternative or supplement to the VisuAlert system, particularly for facilities requiring modular or localized strobe coverage. These beacons are designed for flexible mounting on buildings, towers, or poles adjacent to siren installations and can extend visual coverage to auxiliary zones.
- High (L31) and Low (L32) Dome Variants: Tailored light spread for varying visibility and elevation needs.
- Multiple Flash Patterns: Selectable modes, including synchronous and cruise-light functionality.
- Color Options: Available in amber, red, blue, green, and clear to align with specific alerting protocols.
- Built for Harsh Environments: Hard-coated lenses and powder-coated aluminum bases withstand UV, corrosion, and impact exposure.
VALERT™ and Lighting Control Accessories
Integrated Controllers and Mounting Solutions
To simplify installation and improve operational control, Whelen provides a series of lighting control accessories specifically designed for visual alerting integration on FIREHOUSE, WPS2900, and Omni-Alert platforms.
- VALERT™ Module: A dedicated VisuAlert strobe driver that enables synchronized strobe activation in tandem with siren operation.
- LCWPS Controller Kit: Includes a mounting plate, pre-configured harnessing, and hardware for seamless integration with L31/L32 beacons.
- LEDCTRL Controller: A standalone controller board offering adjustable strobe logic and fault monitoring capabilities.
These components provide a plug-and-play path to strobe integration, ensuring consistency in light activation across your entire mass notification ecosystem—whether deployed on a fire station rooftop or across a sprawling municipal alert network.
Enhancing ADA Compliance and Community Safety
The addition of visual alerting to outdoor sirens is not just a technical upgrade—it’s a public safety imperative. Whether signaling evacuation, chemical hazard, fire dispatch, or severe weather, Whelen’s visual enhancements ensure that every individual receives the message, regardless of auditory ability or environmental conditions.
By outfitting Whelen’s siren systems with VisuAlert arrays, Super-LED beacons, and integrated control hardware, organizations can meet modern compliance standards, improve alert visibility in high-noise zones, and deliver layered emergency notifications with unmatched clarity and reach.
MCA: Your Integration Partner
As a leading provider of emergency communication infrastructure, MCA delivers full lifecycle support for Whelen’s visual and audio alerting platforms. Our expert teams design, install, and maintain fully integrated siren systems that combine reliable audio warnings with high-visibility strobe enhancements—ensuring full compliance with local, federal, and accessibility mandates.
From urban deployments to remote critical infrastructure, MCA ensures your Whelen alerting systems are optimized, visible, and mission-ready—because when the alarm sounds, the message must be clear to all.
