Modernizing Emergency Communications: P25 Fire Station Alerting and Siren Control Solutions from Prism-IPX and MCA
In the high-stakes world of emergency response, where every second can mean the difference between life and death, fire departments require cutting-edge communication and alerting systems to ensure rapid, reliable, and coordinated action. From alerting firefighters to activating public warning sirens, the infrastructure behind these systems must be robust, interoperable, and future-ready. MCA, in partnership with Prism-IPX, delivers advanced fire station alerting and public siren control solutions designed to meet the unique challenges of modern emergency services.
These systems are built to operate seamlessly across P25, IP, LTE (including FirstNet), analog, and digital paging networks, ensuring dependable performance in life-critical scenarios. Whether transitioning from legacy analog systems or enhancing existing digital infrastructure, MCA’s solutions provide the tools fire departments need to modernize their operations without compromising reliability.

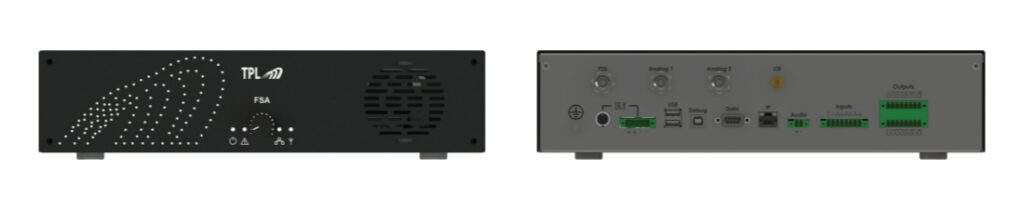

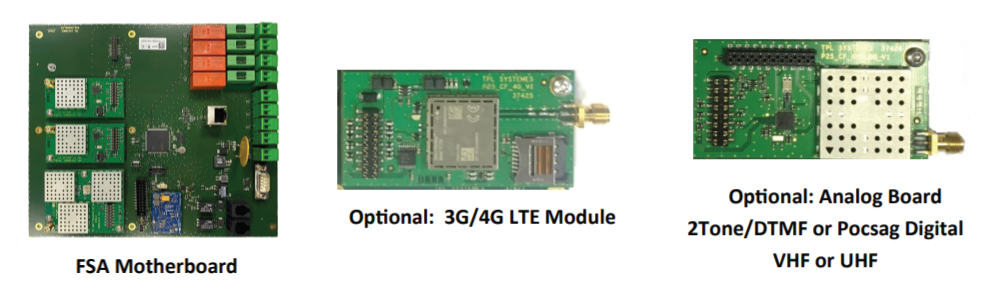

Fire Station Alerting with the FSA-1™
The FSA P25 Fire Station Alerting system (FSA-1™) is a next-generation platform tailored to the needs of fire departments. It bridges the gap between legacy analog systems and modern P25 digital communications, enabling a seamless migration while maintaining operational continuity. Designed for flexibility, the FSA-1 supports simultaneous monitoring of multiple networks, including P25, analog, LTE, and POCSAG, making it an ideal solution for fire stations navigating the complexities of multi-network environments.
Why Fire Departments Need the FSA-1™
Fire stations are dynamic environments where automation and rapid response are critical. The FSA-1 empowers fire departments to automate essential tasks, such as opening bay doors, turning on lights, and activating sirens, all triggered by pre-programmed activation codes. This level of automation not only reduces response times but also ensures that critical systems are activated without manual intervention, even in high-pressure situations.
Key Features and Benefits
- Multi-Network Compatibility: Operates across P25 Phase I & II trunked and conventional environments, 2-tone and DTMF analog control, POCSAG paging, and FirstNet-capable LTE.
- Custom Automation Capabilities: Eight heavy-duty relay outputs can control station-wide systems, such as appliances, lighting, and audible/visual alerts.
- Integrated Redundancy: Four dry contact inputs allow for external system monitoring and failover logic, ensuring reliability even in complex scenarios.
- Field Configurable: Hardware and software flexibility enable in-field upgrades and reconfiguration as operational needs evolve.
- Rugged Build for Harsh Environments: Packaged in a stainless-steel enclosure, the FSA-1 is designed to withstand extreme temperatures (-22°F to +158°F) and offers multiple mounting options (wall, rack, or desktop).
Specifications at a Glance
- Input Voltage: 9–48V DC
- Relay Rating: 16A @ 250V AC / 8A @ 24V DC
- Board Interfaces: RS485, RJ45 Ethernet, USB-C, Audio Out
- Optional Modules: 3G/4G LTE, Analog Voice, and POCSAG
- Enclosure: Stainless steel, 19” 2U rackmount (approx. 11 lbs fully wired)
With the FSA-1, fire departments can modernize their alerting systems while maintaining backward compatibility, ensuring faster response times and increased automation with minimal disruption.

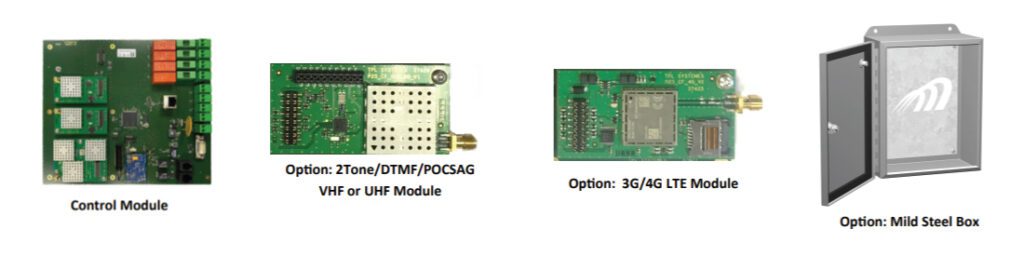

Siren Control with the MPSC-1™
Complementing the FSA-1, the MPSC-1™ P25 Siren Controller is the industry’s first fully integrated siren control solution for public alerting over P25 networks. Developed in partnership between Prism-IPX and TPL Systems, the MPSC-1 provides a straightforward yet powerful upgrade path from analog to digital siren control, ensuring operational continuity while adding advanced network functionality.
Why Municipalities Need the MPSC-1™
Outdoor warning systems are a critical component of public safety, alerting communities to emergencies such as severe weather, hazardous material incidents, or other life-threatening events. The MPSC-1 enables municipalities to modernize these systems with secure, monitored communications and multi-network compatibility, ensuring that sirens activate reliably when needed most.
Key Features and Benefits
- Multi-System Compatibility: Operates across legacy analog, P25 (Phase I & II), LTE, and IP networks.
- Reliable Redundant Control: Features 4 rugged contact relays and 4 dry inputs for configurable siren activations, power alarms, and user-defined controls.
- Secure, Monitored Communications: P25 digital protocol ensures encrypted, resilient messaging, with built-in status reporting over IP and LTE for rapid anomaly detection.
- No Impact on P25 System Load: Designed for seamless P25 integration without taxing system resources.
- Hardened for Outdoor Use: Enclosed in a mild steel box meeting NEMA Type 3R/4/12/13 and IP66 standards, with a 120° front-opening, padlockable latch. Suitable for pole, tower, and building-mounted sirens.
Specifications at a Glance
- Input Voltage: 9–48V DC
- Relay Rating: 16A @ 250V AC / 8A @ 24V DC
- Operating Temp: -22°F to +158°F
- Radio Protocols: P25, Analog, POCSAG, DTMF, 2-tone
- LTE: Cat-1, multiple band support, AT&T/Sprint/T-Mobile/Verizon
- Enclosure: Mild steel, 14x12x6 in. (19 lbs wired)
The MPSC-1 is an essential tool for emergency management agencies and municipalities looking to bring outdoor warning systems into compliance with modern digital communication standards.

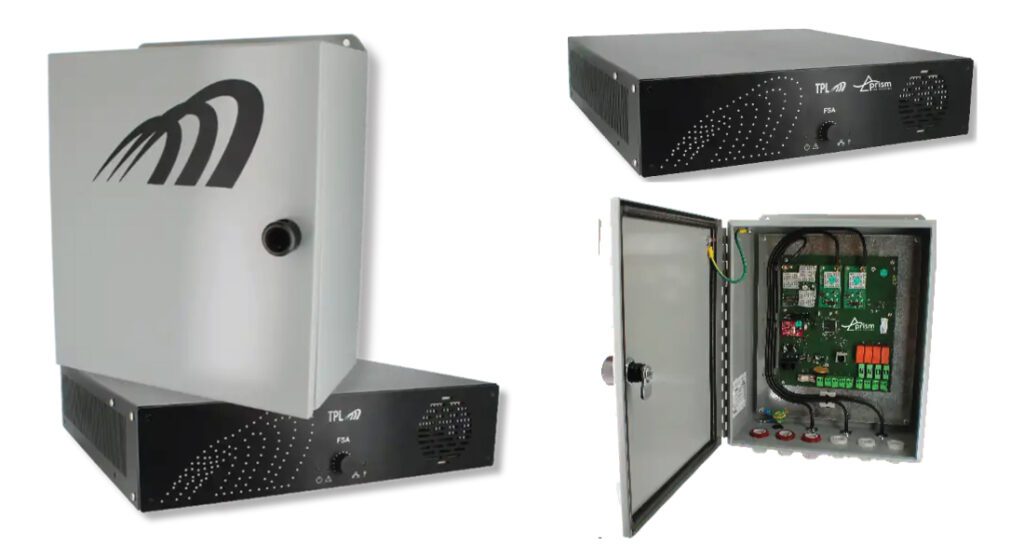

A Fully Integrated Ecosystem for Emergency Automation
Together, the FSA-1 and MPSC-1 form a comprehensive solution for fire station and siren automation. These platforms enable fire departments and municipalities to manage station alerts, automate building systems, and activate public warning sirens—all through the same digital infrastructure.
Key Advantages
- Reliable Cross-Network Operation: Seamlessly integrates P25, IP, LTE, and analog systems.
- Centralized Control: Simplifies management of station and siren systems.
- Streamlined Response Workflows: Reduces response times and enhances operational efficiency.
- Future-Ready Design: Modular upgrades ensure long-term adaptability.
Why MCA?
As a national leader in critical communications, MCA combines decades of experience with deep expertise in fire station automation, mass notification, and P25 digital systems. Our partnership with Prism-IPX allows us to deliver custom alerting solutions tailored to the specific needs of fire departments, EMS, and emergency management agencies. From system design and configuration to installation, support, and lifecycle upgrades, MCA’s engineering teams provide end-to-end solutions that ensure your systems are always ready when it matters most.
Ready to Modernize Your Fire Station or Siren Infrastructure?
Contact MCA today to learn how our P25 Fire Station Alerting and Siren Control solutions can help you improve operational efficiency, ensure compliance, and support your emergency response team with fast, reliable, and intelligent alerting technology.
