Introducing the Poynting XPOL-1-5G PLUS: Future-Proof Connectivity, Anywhere
In today’s fast-paced world, where businesses and mission-critical operations rely on uninterrupted, high-speed connectivity, having the right antenna can make all the difference. MCA is thrilled to unveil the Poynting XPOL-1-5G PLUS — a next-generation omni-directional 2×2 MIMO antenna designed to deliver unmatched performance across an ultra-wide frequency range of 410 MHz to 6000 MHz.
Whether you’re navigating the demands of modern enterprise networks, supporting industrial applications, or ensuring reliable home connectivity, the XPOL-1-5G PLUS is built to keep you connected — today and into the future.
Ultra-Wideband Coverage for Maximum Flexibility
The XPOL-1-5G PLUS represents the third generation of Poynting’s renowned cross-polarized (XPOL) cellular antenna series. With a completely reimagined design and upgraded internal architecture, this antenna offers seamless compatibility with legacy 2G and 3G networks, 4G LTE, and cutting-edge 5G technologies. Its ultra-wide frequency range ensures you’re ready for the networks of tomorrow while maintaining peak performance today.
Enhanced Performance with Up to 6 dBi Gain
What sets the XPOL-1-5G PLUS apart is its improved peak gain of up to 6 dBi, nearly doubling the performance of its predecessor. This translates to:
- Stronger signal reception
- Faster data speeds
- Broader coverage areas
These features make it an ideal solution for Fixed Wireless Access (FWA), urban and suburban connectivity, and industrial deployments where reliability is non-negotiable.
Advanced 2×2 MIMO Technology for Superior Connectivity
Equipped with a 2×2 MIMO cross-polarized design, the XPOL-1-5G PLUS enables spatial diversity, allowing multiple data streams to be sent and received simultaneously. The result?
- Higher data rates
- More stable connections
- Improved reliability in challenging RF environments
This advanced technology ensures your connectivity remains robust, even in areas with high interference.
Built to Withstand the Toughest Conditions
The XPOL-1-5G PLUS is engineered for durability and versatility. Its rugged, low-profile design is both functional and discreet, making it suitable for a wide range of environments. Key features include:
- IP65-rated enclosure for protection against dust, water, and vandalism
- MIL-STD 810G compliance for salt spray resistance
- Operational temperature range of -40°C to +80°C
Whether it’s mounted outdoors in harsh weather or indoors in a controlled environment, this antenna is built to perform.

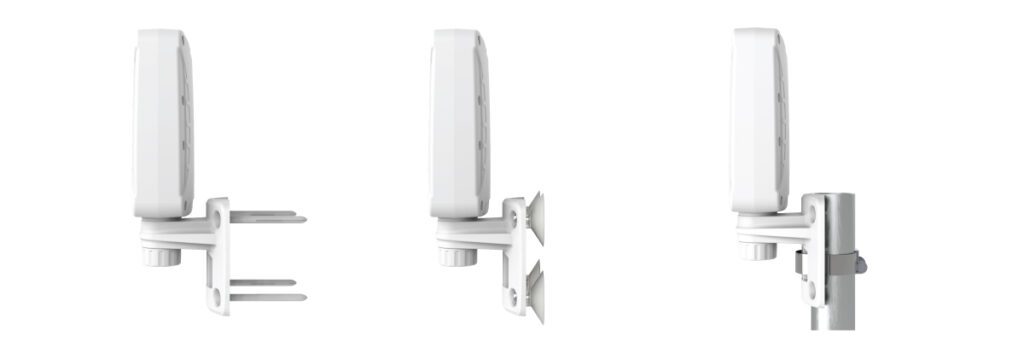

Flexible Mounting Options for Easy Deployment
The XPOL-1-5G PLUS offers multiple mounting options — wall, pole, or window — with included brackets and suction cups. This flexibility ensures seamless installation in diverse settings, from rooftops to temporary site offices.
Perfect for a Wide Range of Applications
The XPOL-1-5G PLUS is a versatile solution for a variety of use cases, including:
- Fixed Wireless Access (FWA): Delivering reliable broadband to homes and businesses where wired connections fall short.
- Urban and Suburban Coverage: Enhancing cellular signal reception in dense cities or remote areas.
- Retail and Commercial Locations: Providing primary or backup connectivity for banks, gas stations, retail outlets, and guesthouses.
- Construction and Temporary Sites: Ensuring critical connectivity for field operations and temporary offices.
- Backup for Fiber or Starlink: Offering dependable failover connectivity to maintain business continuity.
Technical Highlights
- Frequency Range: 410 – 6000 MHz
- Peak Gain: Up to 6 dBi
- Polarization: Cross-polarized for 2×2 MIMO support
- VSWR: ≤2:1 across 90% of the bands
- Connector Type: SMA (M) with 5 m low-loss coaxial cables pre-installed
- Environmental Protection: IP65-rated, IK10 impact resistance
- Mounting Options: Wall, pole, and window mounts included
- Temperature Range: -40°C to +80°C operational
Empowering Connectivity, Anywhere
With its ultra-wideband capabilities, high gain, rugged construction, and advanced MIMO technology, the Poynting XPOL-1-5G PLUS is the ultimate solution for businesses and individuals who demand reliable, high-performance connectivity.
Whether you’re building an enterprise-grade private wireless network, supporting mission-critical industrial applications, or ensuring seamless home connectivity, this antenna is designed to meet your needs — no matter the challenge.
Elevate your connectivity with the Poynting XPOL-1-5G PLUS. Contact MCA today to learn how this cutting-edge antenna can transform your wireless capabilities.
