Revolutionary High-Power 5G Connectivity with the Nextivity SHIELD MegaFi 2
Mission-critical operations demand unwavering connectivity. When standard cellular devices fail to penetrate challenging environments or reach remote locations, first responders and enterprise teams face communication breakdowns that can compromise safety and operational effectiveness. The SHIELD MegaFi 2, available through MCA’s comprehensive connectivity solutions portfolio, represents a breakthrough in mobile communications technology—delivering six times the transmission power of conventional devices while supporting advanced 5G capabilities specifically engineered for AT&T and FirstNet networks.

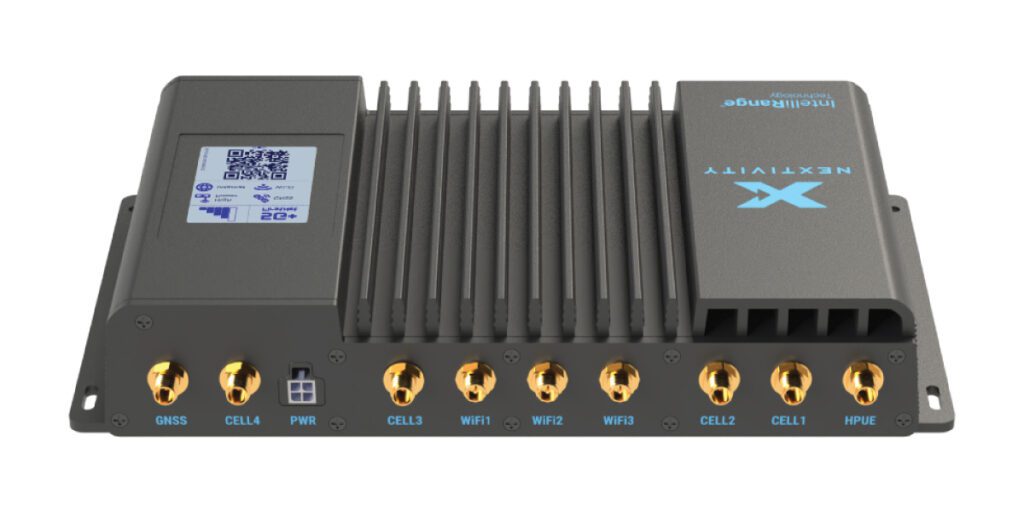

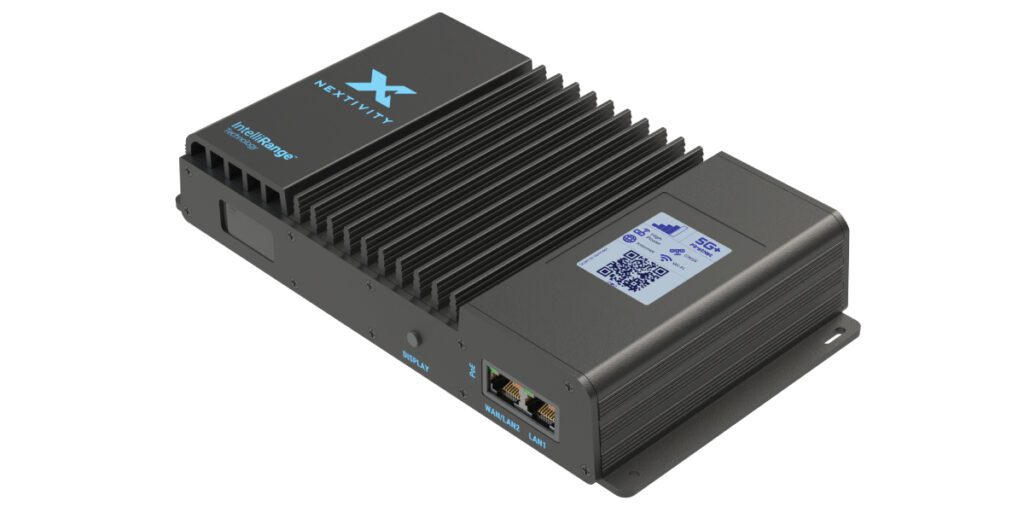

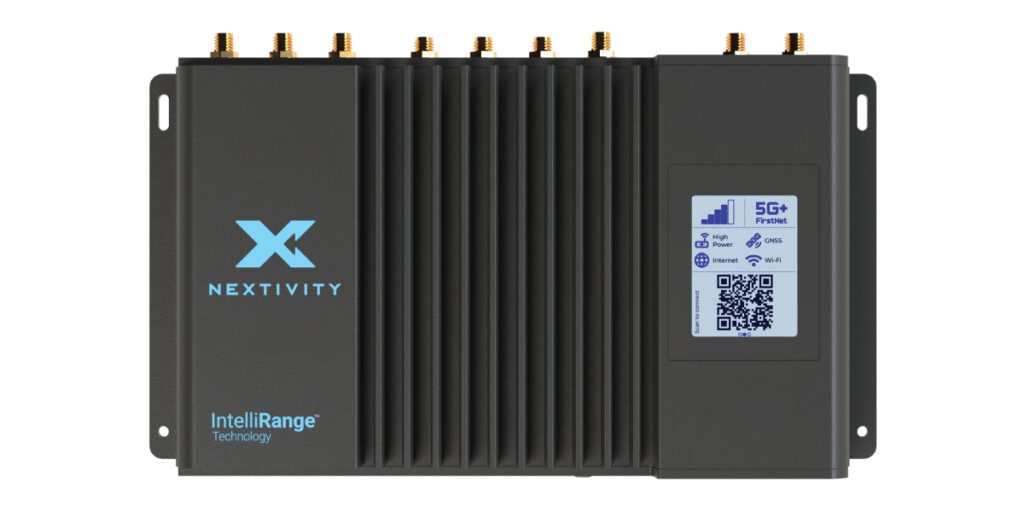

What is the SHIELD MegaFi 2?
The SHIELD MegaFi 2 stands as the industry’s first 5G High Power User Equipment (HPUE) mobile router, specifically designed to address the connectivity challenges faced by public safety agencies, critical infrastructure operators, and enterprise organizations. This revolutionary device combines the extended range capabilities of HPUE technology with the high-speed performance of 5G networks, creating a comprehensive solution that ensures reliable communications in previously unreachable environments.
Built upon Nextivity’s proprietary IntelliRange® technology, the SHIELD MegaFi 2 operates as a 3GPP Power Class 1 device, transmitting at +31 dBm (1.25 Watts) compared to standard Power Class 3 devices limited to +23 dBm (0.2 Watts). This substantial power increase translates directly into enhanced coverage penetration, extended range capabilities, and reliable connectivity in challenging RF environments where conventional cellular equipment cannot maintain consistent service.
The device’s FirstNet Trusted™ certification ensures compliance with the stringent security and performance requirements established for America’s dedicated public safety broadband network, while its comprehensive AT&T band support provides versatility across multiple deployment scenarios and geographic regions.
Advanced Power Technology and Coverage Extension
IntelliRange® Technology Architecture
The core of the SHIELD MegaFi 2’s superior performance lies in its IntelliRange technology, which addresses the fundamental connectivity challenges that limit standard cellular devices. Traditional cellular equipment suffers from an inherent uplink-downlink power imbalance, where devices can often receive data but struggle to transmit responses due to power limitations imposed to prevent network interference.
This power constraint creates significant operational challenges in remote locations, underground facilities, dense urban environments, and areas with natural or artificial signal obstructions. The SHIELD MegaFi 2’s Power Class 1 designation eliminates this limitation by providing authorized access to substantially higher transmission power levels, creating a more balanced and robust communication link.
Enhanced Building Penetration and Rural Coverage
The increased uplink power provides measurable improvements in coverage quality across diverse operational environments. In rural deployments, the enhanced transmission capability extends communication range significantly beyond standard equipment limitations, enabling reliable connectivity in valleys, mountainous terrain, offshore operations, and heavily forested areas where traditional cellular signals fail to maintain adequate quality.
Urban environments benefit equally from the enhanced power capabilities. Modern building construction utilizing low-emissivity glass, metal frameworks, and energy-efficient materials creates substantial RF attenuation that degrades cellular performance. The SHIELD MegaFi 2’s power advantage enables reliable communications deep within buildings, underground facilities, parking structures, and other shielded environments where standard devices cannot maintain consistent connectivity.
Comprehensive Network Technology Support
Advanced 5G and LTE Band Coverage
The SHIELD MegaFi 2 provides comprehensive support for both current and emerging cellular technologies, ensuring long-term compatibility with evolving network infrastructure. The device supports extensive 5G New Radio (NR) band coverage including n1, n2, n5, n7, n25, n28, n30, n38, n41, n66, n71, and n77, with planned support for n14 as FirstNet’s 5G infrastructure continues expanding.
LTE support encompasses all critical AT&T and FirstNet bands including B2, B4, B5, B12, B13, B14, B17, B18, B19, B25, B29, B30, B46, B66, and B71, providing comprehensive coverage across diverse geographic regions and network configurations. The device’s LTE Category 20 classification ensures maximum data throughput capabilities within current network limitations.
FirstNet Band 14 Optimization
The SHIELD MegaFi 2’s Power Class 1 operation on FirstNet Band 14 represents a significant advancement in public safety communications capabilities. This dedicated spectrum allocation provides priority access and enhanced coverage specifically designed for emergency responder operations, while the device’s high power transmission ensures reliable connectivity even in the most challenging operational environments.
As FirstNet’s infrastructure evolution continues, the device maintains upgrade pathways to support Power Class 1 operation on 5G Band n14, ensuring long-term compatibility with advancing public safety communication standards and technologies.
High-Performance Data Capabilities and Connectivity
Superior Data Throughput Performance
The SHIELD MegaFi 2 delivers exceptional data performance with peak downlink speeds reaching 1.0 Gbps and uplink capabilities extending to 0.9 Gbps in standalone configurations. These throughput levels support demanding applications including high-definition video streaming, real-time data analytics, cloud-based applications, and large file transfers that are essential for modern public safety and enterprise operations.
The device’s dual-SIM capability, available through future software updates, provides critical redundancy and failover protection, ensuring continuous connectivity even during network disruptions or maintenance activities. This capability proves essential for mission-critical applications where communication failures can compromise safety and operational effectiveness.
Advanced Wi-Fi 6 Hotspot Capabilities
Integrated dual-band Wi-Fi 6 (802.11ax) technology transforms the SHIELD MegaFi 2 into a comprehensive connectivity hub supporting up to 256 simultaneous client connections. This capability enables team-wide connectivity, vehicle fleet communications, and temporary network establishment in field operations where traditional infrastructure is unavailable or compromised.
The Wi-Fi implementation supports both 2.4 GHz and 5 GHz frequencies with 2×2 MIMO technology, providing optimized performance across diverse device types and usage scenarios. Advanced security protocols including WPA2 and WPA3 Personal and Enterprise configurations ensure data protection and network access control appropriate for sensitive public safety and enterprise applications.
Ruggedized Design for Extreme Environments
Military-Grade Environmental Protection
The SHIELD MegaFi 2’s ruggedized construction meets stringent environmental standards including MIL-STD-810G for shock, vibration, and thermal shock resistance. This certification ensures reliable operation in vehicles, aircraft, marine vessels, and portable deployments where equipment faces significant mechanical stress and environmental challenges.
The device’s IP54 ingress protection rating provides defense against dust infiltration and water exposure, enabling deployment in outdoor environments, industrial facilities, and emergency response scenarios where environmental protection is essential. Operating temperature specifications from -22°F to 149°F (-30°C to 65°C) ensure functionality across extreme climate conditions encountered in diverse geographic regions and seasonal variations.
Vehicle Integration and Power Management
Advanced power management capabilities accommodate diverse deployment scenarios with input voltage acceptance ranging from 9 to 36 VDC. The device supports Power over Ethernet Plus (PoE+) input through its WAN/LAN2 port, enabling simplified installation in network-integrated environments while maintaining compatibility with vehicle electrical systems and portable power sources.
Built-in protection against voltage transients, including engine cranking scenarios, ensures reliable operation in vehicle-mounted applications. Ignition sensing with configurable time delay shutdown provides intelligent power management that prevents battery drain while maintaining operational readiness.
Advanced Management and Monitoring Capabilities

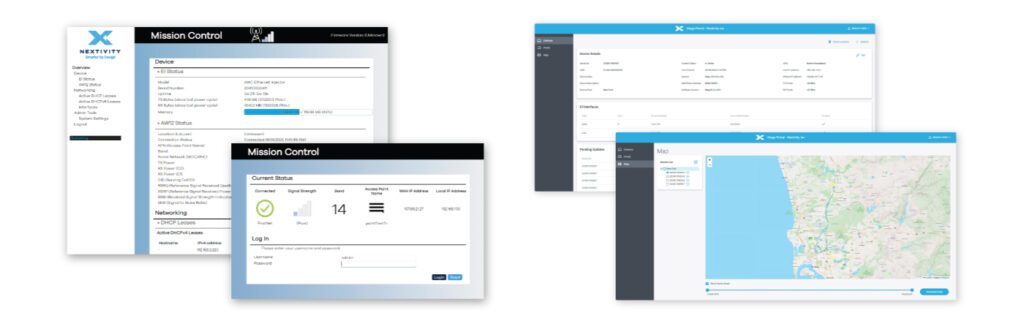

MegaPortal Cloud Management Platform
The SHIELD MegaFi 2 integrates seamlessly with MegaPortal, Nextivity’s comprehensive cloud-based management platform that enables centralized monitoring and configuration of device fleets across multiple locations and operational scenarios. This platform provides administrators with real-time visibility into device performance, network connectivity status, and operational parameters essential for maintaining reliable communications infrastructure.
Fleet management capabilities include remote configuration updates, firmware distribution, security policy enforcement, and usage analytics that enable proactive maintenance and optimization. The platform’s scalable architecture supports deployments ranging from single devices to enterprise-wide installations with thousands of units.
Mission Control Local Interface
The integrated Mission Control software provides local device management through an intuitive graphical user interface accessible via web browser or direct connection. This interface enables field personnel to monitor real-time modem parameters, band performance metrics, firewall configurations, and network connectivity status without requiring cloud connectivity or specialized tools.
Advanced configuration capabilities include custom APN settings, static IP configuration, connection policy management, and security parameter adjustment. These features enable rapid deployment and field optimization without requiring specialized technical expertise or remote support.
Technical Specifications and Performance Metrics
Comprehensive Hardware Specifications
The SHIELD MegaFi 2’s technical architecture delivers enterprise-grade performance across all operational parameters:
Cellular Performance:
- Peak Downlink: Up to 1.0 Gbps (NSA), 1.0 Gbps (SA)
- Peak Uplink: Up to 0.55 Gbps (NSA), 0.90 Gbps (SA)
- LTE Category: Cat 20 with comprehensive band support
- Power Class: PC1 on Band 14, PC3 on all other supported bands
Connectivity Interfaces:
- 2 Gigabit RJ-45 Ethernet ports (1 WAN, 1 LAN)
- 6 SMA antenna connectors (1 Band 14 HPUE, 4 cellular, 1 GNSS)
- 3 RP-SMA antenna connectors for Wi-Fi 6 operation
- 4FF NanoSIM slot with eSIM support
Environmental Specifications:
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Storage Temperature: -40°C to +90°C (-40°F to +194°F)
- Humidity Tolerance: 0 to 95% non-condensing
- Ingress Protection: IP54 rating
- Compliance: MIL-STD-810G, ISO-7637-2
Advanced Security and Authentication
The device implements comprehensive security protocols essential for public safety and enterprise applications. Authentication capabilities include 802.1x/RADIUS integration with both Wi-Fi and Ethernet interfaces, enabling centralized access control and user management consistent with organizational security policies.
Advanced firewall functionality provides port forwarding, filtering, and traffic management capabilities that protect network resources while enabling necessary application connectivity. WLAN encryption supporting WPA3 Personal and Enterprise configurations ensures data protection appropriate for sensitive communications and confidential information handling.
Diverse Application Scenarios and Use Cases
Public Safety and Emergency Response
The SHIELD MegaFi 2’s FirstNet Trusted status and enhanced power capabilities make it ideal for comprehensive public safety applications where reliable communications can determine mission success and personnel safety.
Law Enforcement Applications: Mobile command posts, extended patrol area coverage, tactical operations support, and inter-agency coordination benefit from the device’s enhanced range and high-speed data capabilities. The ability to maintain connectivity in underground parking structures, dense urban environments, and remote patrol areas ensures officers remain connected throughout their jurisdictions.
Fire and Emergency Medical Services: Wildfire response operations, rural emergency medical transport, disaster recovery coordination, and hazardous material incidents require reliable communications in challenging environments. The SHIELD MegaFi 2’s power advantage ensures connectivity in remote wilderness areas, underground facilities, and other locations where standard equipment fails.
Emergency Management and Disaster Response: Temporary communication infrastructure deployment, field hospital connectivity, and inter-agency coordination during large-scale incidents benefit from the device’s high-speed data capabilities and multi-user Wi-Fi hotspot functionality.
Enterprise and Critical Infrastructure
Beyond public safety applications, the SHIELD MegaFi 2 provides essential connectivity solutions for enterprise organizations operating in challenging environments or requiring backup communication capabilities.
Utilities and Energy Sector: Electric utility crews, oil and gas operations, water treatment facilities, and renewable energy installations require reliable communications for safety, coordination, and remote monitoring. The device’s ruggedized construction and extended range capabilities ensure connectivity at remote infrastructure locations and during emergency response operations.
Transportation and Logistics: Fleet management, cargo tracking, maritime operations, and aviation ground support benefit from the device’s comprehensive connectivity and multi-user capabilities. Vehicle-mounted installations provide mobile office functionality while portable configurations support temporary operations and emergency communications.
Healthcare and Telemedicine: Mobile medical units, disaster response medical teams, rural clinic connectivity, and telehealth applications require high-speed, reliable data connections for patient monitoring, consultation, and medical record access. The device’s security features and high throughput capabilities support HIPAA-compliant communications and real-time medical data transmission.
Government and Defense Applications
The SHIELD MegaFi 2’s enhanced power capabilities and security features make it suitable for government and defense applications requiring reliable communications in challenging environments. Border patrol operations, military base connectivity, emergency management coordination, and inter-agency communications benefit from the device’s comprehensive capabilities and FirstNet integration.
Investment Protection and Future Technology Evolution
Upgradeable Architecture and Long-Term Compatibility
The SHIELD MegaFi 2’s software-defined architecture ensures compatibility with evolving cellular technologies and network standards. Regular firmware updates provide access to new features, performance enhancements, and security improvements without requiring hardware replacement, protecting infrastructure investments while maintaining cutting-edge capabilities.
The device’s upgrade pathway to support Power Class 1 operation on 5G Band n14 ensures long-term compatibility with FirstNet’s evolving infrastructure, while comprehensive band support provides flexibility across multiple carrier relationships and geographic regions.
Service and Support Lifecycle
MCA’s comprehensive service portfolio ensures maximum value from SHIELD MegaFi 2 deployments through professional installation, configuration, training, and ongoing support services. Our certified technical teams provide expertise in device optimization, network integration, and troubleshooting that maximizes operational effectiveness while minimizing downtime.
Extended warranty options up to five years provide long-term protection and include unrestricted device software upgrades, ensuring access to the latest features and capabilities throughout the device lifecycle. This comprehensive approach reduces total cost of ownership while maximizing operational reliability.
Strategic Partnership: MCA and Nextivity Excellence
Comprehensive Solution Integration
As Nextivity’s trusted partner, MCA delivers complete connectivity solutions that extend far beyond individual device deployment. Our collaborative approach integrates the SHIELD MegaFi 2 with broader communication infrastructure, security systems, and operational technologies to create comprehensive solutions that address complex organizational requirements.
Our expert teams of certified professionals provide end-to-end project management from initial assessment through ongoing lifecycle support. This comprehensive approach ensures optimal solution design, professional installation, thorough testing, and continuous optimization that maximizes return on investment while ensuring reliable operational performance.
Industry Expertise and Local Support
MCA’s extensive experience across public safety, enterprise, and critical infrastructure sectors provides valuable insights into specific operational requirements and regulatory considerations. Our collaborative relationships with local authorities, system integrators, and technology vendors enable comprehensive solution development that addresses unique organizational challenges.
Our nationwide service network ensures local support availability regardless of deployment location, while our technical expertise spans multiple technology domains including wireless communications, network infrastructure, security systems, and integration platforms. This comprehensive capability set enables complex solution development that addresses diverse operational requirements through unified platform approaches.
The SHIELD MegaFi 2 represents one component within MCA’s comprehensive portfolio of connectivity solutions, ranging from individual mobile devices to enterprise-wide communication infrastructure. Our expert consultation process evaluates specific organizational requirements to recommend optimal solutions that may include the SHIELD MegaFi 2 or alternative platforms that best address unique operational needs, budget considerations, and performance requirements.
Contact MCA today to explore how the SHIELD MegaFi 2 can enhance your organization’s connectivity capabilities. Our technical teams will assess your specific requirements, evaluate deployment scenarios, and design comprehensive solutions that ensure reliable communications when they matter most. Whether supporting public safety operations, enterprise connectivity, or critical infrastructure communications, MCA’s partnership with Nextivity delivers the advanced technology and professional expertise necessary for mission-critical success.
