Nextivity SHIELD EXTEND: Enterprise-Scale ERCES Solutions for Maximum Coverage
Emergency responder communications can determine the difference between life and death during critical situations. When first responders enter your facility, they need guaranteed radio coverage throughout every floor, corridor, and space. The Nextivity SHIELD EXTEND, delivered through MCA’s comprehensive public safety solutions portfolio, provides scalable Emergency Responder Communication Enhancement System (ERCES) coverage that combines Land Mobile Radio (LMR) and FirstNet capabilities in a single, code-compliant platform designed for enterprise-scale deployments.

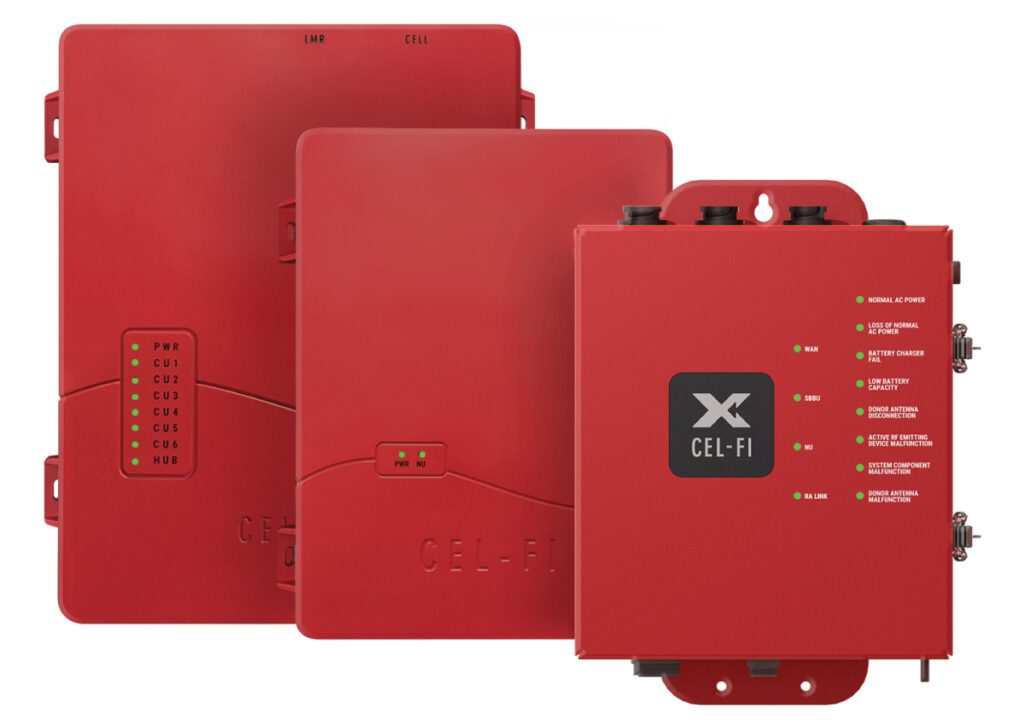

What is the Nextivity SHIELD EXTEND?
The Nextivity SHIELD EXTEND represents a breakthrough in scalable public safety communications. This fully integrated ERCES solution delivers reliable in-building coverage for both Land Mobile Radio (LMR) 700/800 MHz bands and FirstNet Band 14, providing comprehensive emergency communications infrastructure in a single deployment.
Unlike traditional ERCES systems that require extensive manual configuration and lengthy approval processes, the SHIELD EXTEND leverages Nextivity’s proprietary IntelliBoost® technology to automate complex system parameters. This intelligent automation dramatically simplifies installation procedures while significantly increasing the probability of successful Authority Having Jurisdiction (AHJ) inspection on the first attempt.
The system’s modular architecture supports facilities ranging from single buildings to expansive campus environments, with Power-over-Ethernet (PoE) distribution enabling distances up to 325 feet between Network Units and Coverage Units. For larger installations, optional Fiber Range Extenders can extend this range to nearly one mile, making SHIELD EXTEND ideal for high-rises, campus facilities, and multi-building complexes where traditional ERCES solutions face deployment challenges.
Advanced Technology Platform and Automation
IntelliBoost® Intelligence for Guaranteed Performance
The SHIELD EXTEND platform incorporates Nextivity’s advanced IntelliBoost processing chip, which delivers unparalleled automation capabilities that transform the traditional ERCES deployment experience. This proprietary technology automatically calculates and optimizes critical system parameters, including uplink gain, downlink gain, path loss calculations, and system isolation measurements.
The system’s real-time monitoring capabilities continuously adapt to environmental changes, ensuring consistent performance throughout the facility’s operational life. This intelligent adaptation eliminates the need for manual testing equipment during commissioning and significantly reduces the potential for installer error, directly contributing to faster AHJ approval and certificate of occupancy issuance.
Dual-Mode Class A and Class B Flexibility
One of the SHIELD EXTEND’s most significant advantages lies in its software-configurable operating modes. The system can be configured as either Class A (channelized operation supporting 56 channels at 12.5 kHz bandwidth) or Class B (wideband operation supporting 28 channels at 100 kHz or 150 kHz bandwidth) directly in the field without requiring additional license fees or hardware modifications.
This unprecedented flexibility enables building owners and contractors to adapt their ERCES deployment to meet the specific requirements of different jurisdictions without maintaining separate equipment inventories. The ability to reconfigure the system as local codes evolve provides long-term investment protection and operational flexibility.
Comprehensive Multi-Band Coverage Capabilities
Land Mobile Radio (LMR) Support
The SHIELD EXTEND provides complete coverage for both 700 MHz and 800 MHz LMR frequencies, supporting both P25 digital and analog communication protocols. The system delivers 30 dBm downlink output power and 26 dBm uplink output power for LMR bands, ensuring strong signal penetration throughout complex building environments.
700 MHz LMR Specifications:
- Downlink Frequency Range: 768-775 MHz
- Uplink Frequency Range: 798-805 MHz
- Technology Support: P25 and Analog
- Maximum System Gain: 100 dB
800 MHz LMR Specifications:
- Downlink Frequency Range: 851-861 MHz
- Uplink Frequency Range: 806-816 MHz
- Technology Support: P25 and Analog
- Noise Figure: 5 dB maximum at maximum gain
FirstNet® Broadband Integration
Beyond traditional LMR coverage, the SHIELD EXTEND uniquely provides comprehensive FirstNet support across all essential broadband bands, enabling true convergence of voice and data emergency communications. This capability positions facilities to support next-generation emergency response protocols that rely on broadband connectivity for situational awareness, video streaming, and advanced coordination tools.
FirstNet Band Coverage:
- Band 2: 1930-1990 MHz DL / 1850-1910 MHz UL (LTE 20 MHz)
- Band 4: 2110-2155 MHz DL / 1710-1755 MHz UL (LTE 20 MHz)
- Band 12: 728-746 MHz DL / 699-716 MHz UL (LTE 10 MHz)
- Band 14: 758-768 MHz DL / 788-798 MHz UL (LTE 10 MHz)
The system provides 24 dBm downlink output power and 23 dBm uplink output power for FirstNet bands, with independent donor antenna ports ensuring optimal signal quality for both LMR and broadband services.

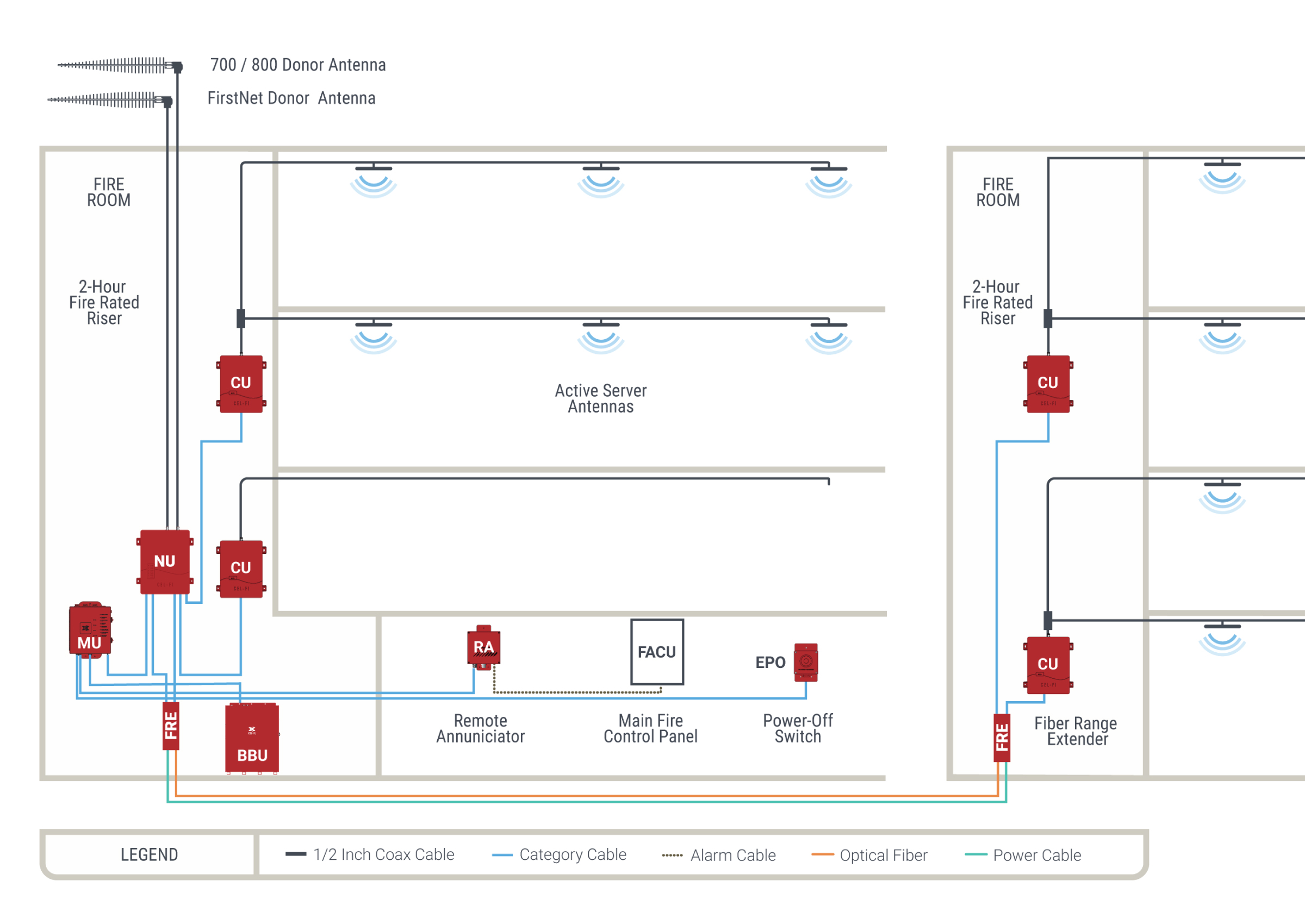

Scalable Architecture for Enterprise Deployments
Network Unit Configuration
The SHIELD EXTEND Network Unit serves as the system’s central processing hub, digitizing and processing off-air donor signals from both LMR and FirstNet sources. Each Network Unit supports up to six Coverage Units through its PoE architecture, providing power and data distribution through standard Category cables.
Network Unit Technical Specifications:
- Dimensions: 12.36 × 14.61 × 4.29 inches
- Weight: 15.43 pounds
- Power Consumption: 102-397 watts (depending on CU configuration)
- Operating Temperature: -4 to 122°F
- Enclosure Rating: NEMA 4
- Connectivity: 2 donor antenna ports, SFP+ optical port, RJ45 management port
Coverage Unit Distribution
Coverage Units serve as the remote distribution points throughout the facility, rebroadcasting processed signals to ensure comprehensive coverage. Each Coverage Unit features self-optimizing capabilities that streamline deployment and minimize commissioning time.
Coverage Unit Specifications:
- Dimensions: 11.18 × 13.50 × 3.50 inches
- Weight: 12.13 pounds
- Power Source: PoE from Network Unit
- Range: Up to 325 feet from NU via Category cable
- Server Antenna Port: N-Type female connector
- Operating Temperature: -4 to 122°F
Management Unit Capabilities
The Management Unit provides centralized control and monitoring for all system components, including Network Units, Coverage Units, and optional accessories such as Remote Annunciator Panels, Emergency Power-Off switches, and Active Server Antennas.
Management Unit Features:
- Dimensions: 10.63 × 12.20 × 4.80 inches
- Weight: 8.82 pounds
- Operating Temperature: 32 to 122°F
- Connectivity: RJ45 LAN port, SMA antenna port
- Power: 10W PoE capability
Extended Range Capabilities with Fiber Infrastructure
Fiber Range Extender Technology

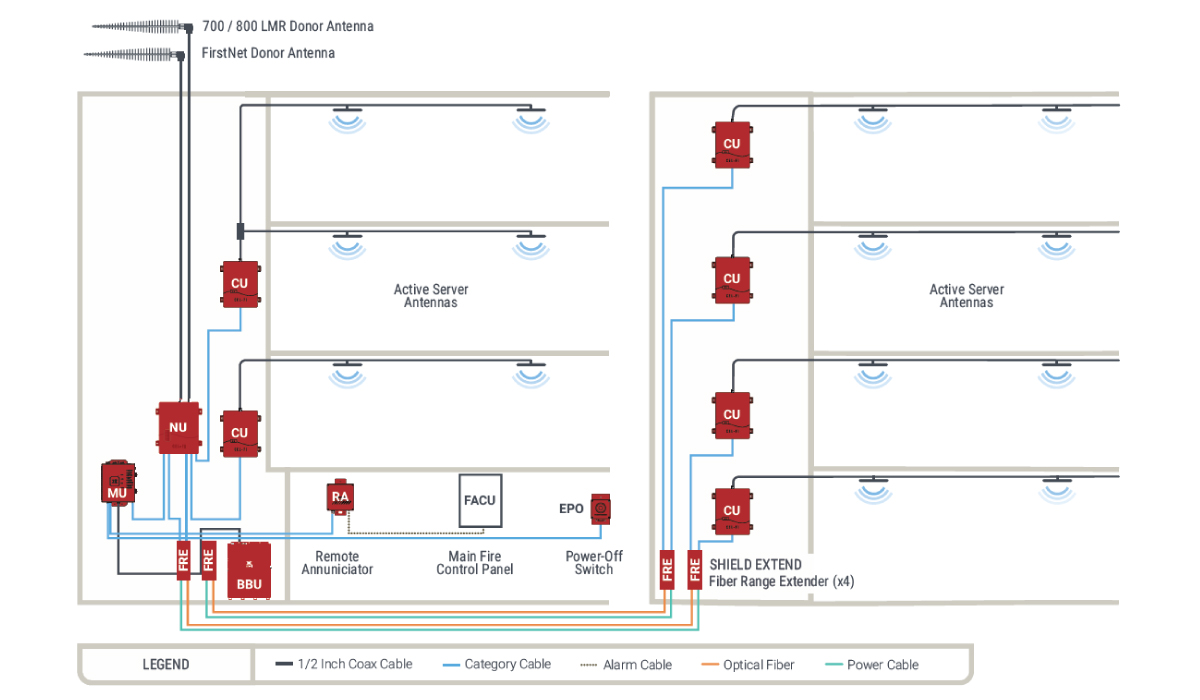

For enterprise facilities requiring extended coverage areas, the SHIELD EXTEND Fiber Range Extender (FRE) system enables Network Unit to Coverage Unit distances approaching one mile. The FRE solution operates in pairs—one unit on the Network Unit side and one on the Coverage Unit side—with each pair supporting up to two Coverage Units.
Fiber Range Extender Specifications:
- Maximum Extension Distance: 0.87 miles (1.4 kilometers)
- Optical Interface: Duplex LC Connector, Single-mode 1310 nm
- Data Rate: 6.25 Gb/s CPRI Compliant
- Environmental Rating: NEMA 4
- Operating Temperature: 32 to 122°F (0 to 50°C)
The hybrid cable configuration supports both fiber optic communication and copper power distribution, enabling remote powering of Coverage Units while maintaining high-speed data connectivity. This capability proves essential for campus environments, multi-building facilities, and high-rise installations where traditional cable runs would be impractical.
Power Distribution and Environmental Protection
The FRE system includes sophisticated power management capabilities, supporting both power-fiber only mode and power-hybrid copper/fiber configurations. Status LEDs provide clear indication of system operational status, with color-coded indicators for power-up sequences, communication establishment, and active fiber links.
The NEMA 4 rated enclosures ensure reliable operation in challenging environmental conditions, while the integrated SFP+ modules provide plug-and-play optical connectivity without requiring additional interface hardware.
Comprehensive System Monitoring and Management

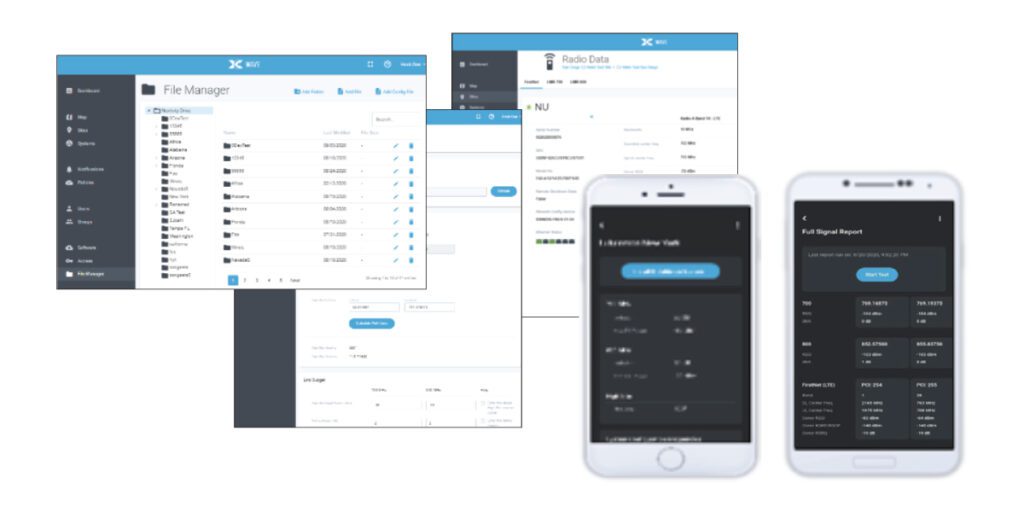

WAVE Portal Cloud Platform
The SHIELD EXTEND integrates seamlessly with Nextivity’s WAVE Portal, providing comprehensive remote monitoring and management capabilities through a secure cloud-based interface. This platform enables system owners and authorized personnel to monitor performance, receive alerts, and maintain compliance from any location with internet connectivity.
WAVE Portal Capabilities:
- Real-time system status monitoring across all components
- Historical performance analytics and trend reporting
- Automated alarm notifications for system anomalies
- Remote configuration and optimization capabilities
- Compliance documentation and reporting tools
- Multi-site management for enterprise deployments
WAVE PRO Mobile Application
Installation and maintenance teams benefit from the WAVE PRO mobile application, which provides field-based system commissioning, testing, and diagnostic capabilities. The application integrates with the COMPASS XR test instrument to provide comprehensive uplink and downlink performance validation.
Mobile Application Features:
- Industry-first uplink testing for talk-out guarantee validation
- Built-in grid test functionality for AHJ compliance
- Real-time signal analysis and optimization
- CSV export capabilities for documentation requirements
- Antenna aiming assistance for optimal signal acquisition
SHEILD EXTEND Technical Specifications Summary
System Performance Characteristics
The SHIELD EXTEND delivers industry-leading performance across all supported frequency bands:
- Maximum System Gain: 100 dB across all bands
- Noise Figure: 5 dB maximum at maximum gain
- Return Loss: -8 dB maximum
- System Group Delay (Class A): 28 microseconds at 12.5 kHz
- System Group Delay (Class B): 15 microseconds at 100 kHz / 13.6 microseconds at 150 kHz
- Minimum Input Level: -100 dBm downlink / -90 dBm uplink
- Maximum Input Level: -20 dBm downlink / varies by band uplink
Compliance and Certifications
The SHIELD EXTEND maintains comprehensive regulatory approvals and safety certifications:
- FCC Parts: 15, 20, 22, 24, 27, 90
- UL 2524: Listed for emergency communications equipment
- UL 50E: Environmental enclosure certification
- IFC 510: International Fire Code compliance
- NFPA 1221: National Fire Protection Association standards
- NEMA 4: Environmental protection rating
- ISED: Industry and Science Canada certification

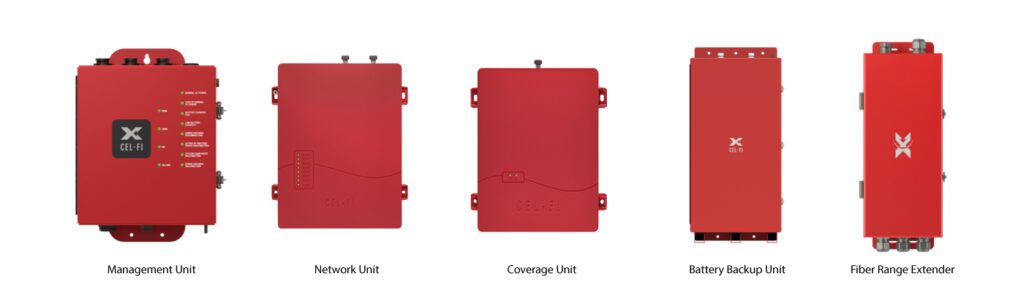

Model Numbers and Ordering Information
Core System Components:
- Management Unit: F40-0E (FirstNet + 700/800 MHz LMR)
- Network Unit (Class A): F42-67ENU
- Network Unit (Class B): F42-67ENUB
- Coverage Unit (Class A): F41-8XCU
- Coverage Unit (Class B): F41-8XCUB
Optional Accessories:
- Battery Backup Unit: F43-00
- Fiber Range Extender (NU Side): F40-0XNU
- Fiber Range Extender (CU Side): F40-0XCU
Battery Backup and Power Protection
Integrated Battery Backup System
The SHIELD EXTEND Battery Backup Unit (Model F43-00) provides comprehensive power protection to ensure continuous operation during utility outages. The UL 2524 listed unit supports up to 12 hours of peak system operation using four 12-volt lead-acid batteries.
Battery Backup Unit Specifications:
- Battery Support: Four 12V lead-acid batteries
- Backup Duration: 12 hours at peak load
- Environmental Rating: NEMA 4
- Alarm Outputs: Multiple dry contact monitoring points
- Certifications: UL 2524 listed, IFC 510 compliant
The integrated alarm monitoring provides comprehensive status reporting for normal AC power, battery charger operation, power loss conditions, and low battery capacity warnings. These alarms integrate with building management systems and fire alarm control panels to provide centralized monitoring.
Advanced Use Cases and Applications
Campus and Multi-Building Environments
The SHIELD EXTEND’s fiber extension capabilities make it particularly well-suited for educational campuses, corporate facilities, and government complexes where emergency communications must span multiple buildings. The system’s ability to extend coverage nearly one mile through fiber infrastructure enables centralized management while providing comprehensive coverage across distributed facilities.
High-Rise Buildings
Vertical transportation of emergency communications signals presents unique challenges in high-rise environments. The SHIELD EXTEND’s PoE architecture and fiber extension capabilities provide flexible deployment options, whether distributing Coverage Units throughout individual floors or creating coverage zones that span multiple levels.
Industrial and Warehouse Facilities
Large industrial facilities often feature challenging RF environments due to metal construction, high ceilings, and equipment interference. The SHIELD EXTEND’s intelligent gain control and automatic optimization capabilities ensure reliable coverage despite these challenging conditions, while the system’s scalability accommodates facilities exceeding 1.9 million square feet.
Healthcare and Life Sciences
Healthcare facilities require reliable emergency communications throughout complex layouts that may include underground areas, equipment-heavy spaces, and radiation-shielded rooms. The SHIELD EXTEND’s comprehensive band coverage and intelligent optimization ensure first responders can maintain communications regardless of the facility’s architectural challenges.
Investment Protection and Future-Readiness
Long-Term Technology Evolution
The SHIELD EXTEND’s software-defined architecture ensures compatibility with evolving public safety communication standards. Regular software updates through the WAVE Portal provide access to new features and capabilities without requiring hardware replacement, protecting infrastructure investments while maintaining cutting-edge functionality.
Scalability and Expansion Options
The modular system architecture enables organic growth as facility requirements evolve. Additional Coverage Units can be integrated into existing deployments, while Fiber Range Extenders provide expansion capabilities for growing campuses or facility additions.
Professional Integration and Support Services
SHIELD EXTEND Integrations with Broader Safety Ecosystems
The SHIELD EXTEND integrates seamlessly with existing building safety systems, including fire alarm control panels, mass notification systems, and building management platforms. Our teams ensure proper integration while maintaining compliance with all applicable codes and standards.
MCA’s Comprehensive ERCES Expertise
MCA delivers complete ERCES solutions through our experienced teams of certified professionals who understand the complexities of public safety communications. Our comprehensive service portfolio includes initial facility assessment, RF propagation modeling, system design, professional installation, commissioning support, and ongoing maintenance services.
Our collaboration with Nextivity ensures access to the latest technology developments while our local presence provides responsive support throughout your system’s operational life. We coordinate directly with local AHJs to streamline approval processes and ensure compliance with jurisdiction-specific requirements.
Request a Consultation with Our Team
While the SHIELD EXTEND provides exceptional performance for enterprise-scale deployments, it represents one solution within MCA’s comprehensive portfolio of public safety communications systems. Our experts evaluate each facility’s unique requirements to recommend the optimal solution, whether SHIELD EXTEND, SHIELD SOLO, or alternative platforms that best meet your operational needs and budget considerations.
Contact MCA today to schedule a comprehensive assessment of your facility’s emergency communications requirements. Our teams will evaluate your current infrastructure, identify coverage gaps, and design a tailored SHIELD EXTEND solution that ensures reliable first responder communications while streamlining AHJ approval processes. Don’t let communication failures compromise safety—partner with MCA to deliver the reliable emergency communications your facility demands.
