Hanwha Vision TNO-7180RLP High-Speed LPR Camera: Capturing Vehicle Data at the Speed of Life
The Hanwha Vision TNO-7180RLP is a state-of-the-art, high-speed license plate recognition (LPR) camera designed to meet the rigorous demands of modern traffic monitoring and security applications. With advanced imaging technology and intelligent analytics, this camera ensures reliable and accurate vehicle identification, even in challenging environments and at high speeds. Whether for city surveillance, highway monitoring, or secure facility access, the TNO-7180RLP delivers exceptional performance and flexibility.
What is the TNO-7180RLP from Hanwha Vision?

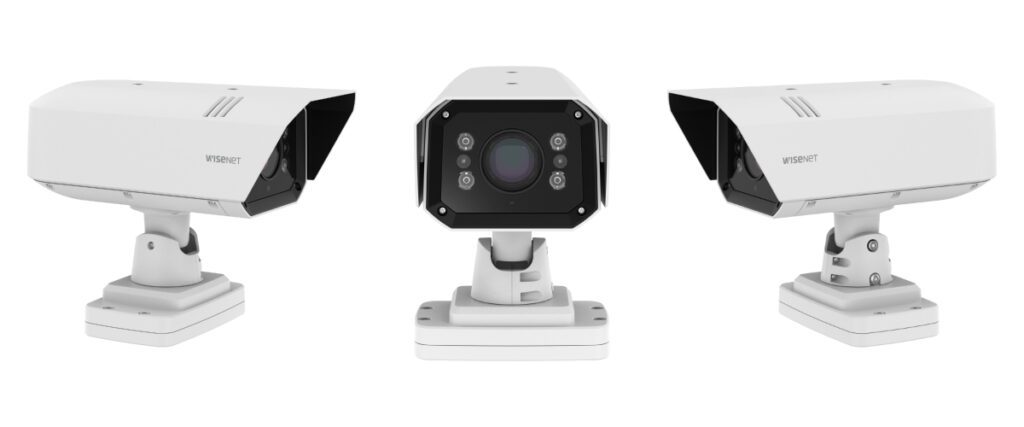

The TNO-7180RLP is a 3MP bullet-style LPR camera equipped with a color global shutter sensor and the preinstalled Wisenet Road AI application. This powerful combination enables the camera to perform license plate recognition (LPR) as well as make, model, and color recognition (MMCR) directly on the edge. With support for up to 60 frames per second at full resolution, the camera captures smooth and detailed images of vehicles traveling at speeds of up to 125 mph (200 km/h). Preloaded with a 32GB microSD card, it can store up to 10,000 LPR images locally, ensuring reliable performance without the need for constant network connectivity.
Key Features and Benefits
3MP Color Global Shutter Sensor
- Captures crisp, distortion-free images of fast-moving vehicles.
- Ensures accurate and reliable identification in high-speed traffic scenarios.
AI-Based LPR and MMCR
- Recognizes license plates, vehicle make, model, color, and type directly on the edge.
- Provides actionable insights for traffic monitoring and security applications.
High-Speed Capture
- Supports vehicle speeds of up to 125 mph (200 km/h), making it ideal for highways and busy city streets.
Extended Optical Range
- Features a motorized varifocal lens with a focal length range of 6.8–120 mm (18x zoom).
- Enables close or distant capture, covering up to two lanes of traffic.
Rugged and Reliable Design
- Built to withstand harsh outdoor conditions with IP66, IK10, NEMA 4X, and NEMA TS2 compliance.
- Operates in extreme temperatures ranging from -40°F to +140°F.
Flexible Installation
- Supports multiple lane coverage with wide horizontal and vertical angles.
- Can be installed at heights of up to 7 meters (24 feet) for versatile deployment.
Edge Storage
- Comes with a preinstalled 32GB microSD card, allowing local storage of up to 10,000 images.
- Reduces reliance on external storage or constant network connectivity.
Advanced Analytics and Notifications
- Includes black and white list notifications for flagged vehicles.
- Offers smart search functionality for detailed queries by plate number, country, vehicle brand, model, and color.

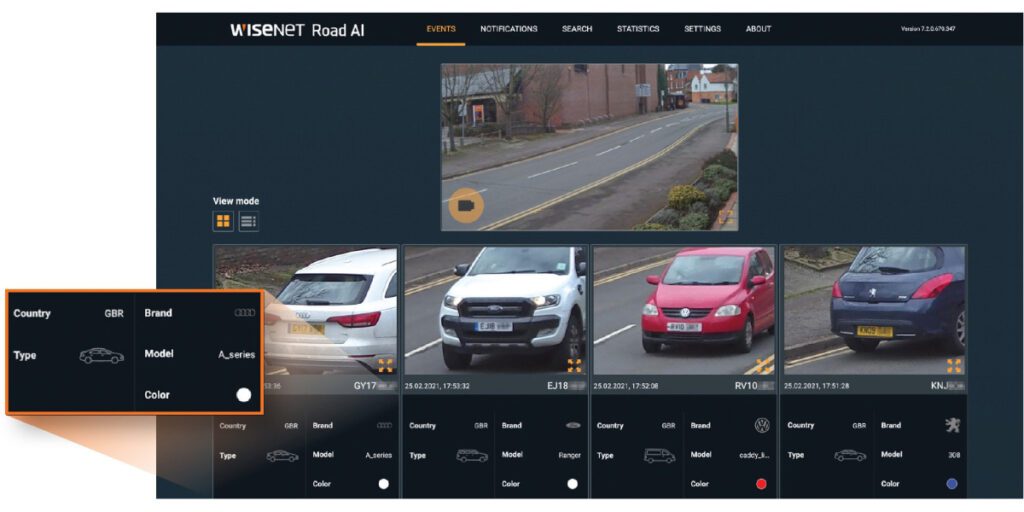

Advanced Vehicle Intelligence with Wisenet Road AI
The Wisenet Road AI application transforms the TNO-7180RLP into an intelligent traffic analytics tool, providing more than just basic license plate recognition.
Key Capabilities
- LPR/ANPR: Detects and logs license plates across supported regions, enabling efficient traffic monitoring and access control.
- Make, Model, and Color Recognition (MMCR): Identifies vehicles by brand (over 70 makes), model (more than 600), and color (11 standard colors).
- Allow/Deny List Notifications: Instantly alerts operators when flagged vehicles are detected, streamlining security operations.

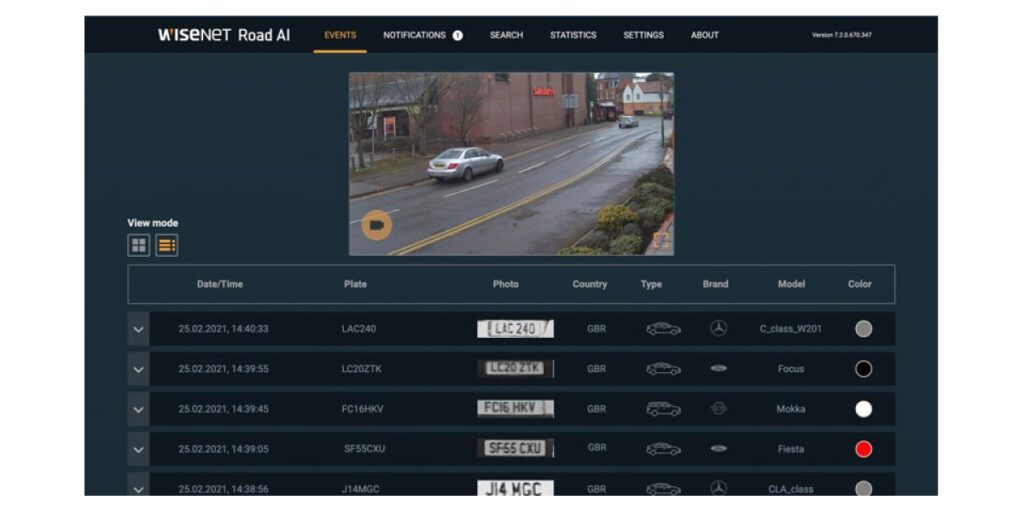

- Smart Search Functionality: Enables detailed searches based on various parameters, such as plate number, vehicle type, or color, for faster incident resolution.
These capabilities make the TNO-7180RLP a powerful tool for proactive traffic management and enhanced situational awareness.
High-Performance Imaging
The TNO-7180RLP is equipped with a 3MP global shutter sensor that ensures accurate, blur-free images of fast-moving vehicles. This advanced sensor eliminates motion distortion, making it ideal for high-speed traffic environments.
Key Imaging Features
- WiseIR Technology: Provides infrared illumination up to 50 meters (164 feet), ensuring clear images even in complete darkness.
- High Resolution and Frame Rates: Supports resolutions from 320×240 to 2048×1536, with frame rates of up to 60 frames per second, ensuring no detail is missed.
These features ensure reliable performance in both day and night conditions, making the camera suitable for 24/7 operation.
Engineered for Challenging Conditions
The TNO-7180RLP is built to withstand the toughest environments, ensuring reliable performance in any deployment scenario.
Rugged Construction
- Weatherproof and Impact-Resistant: Rated IP66, IK10, and NEMA 4X for protection against harsh weather, dust, and physical impacts.
- Vibration Resistance: Compliant with ISO 16750-3 standards, ensuring stability in high-vibration environments.
- Wide Operating Temperature Range: Functions reliably in temperatures from -40°F to +140°F, making it suitable for extreme climates.
Flexible Deployment and Integration
The TNO-7180RLP offers versatile installation options and seamless integration with various systems, making it a flexible solution for diverse applications.
Deployment Features
- Covers up to two lanes of traffic with its extended focal range and wide angles.
- Supports horizontal offsets and installation heights of up to 7 meters (24 feet) for optimal coverage.
Integration Capabilities
- Compatible with ONVIF profiles S, G, and T, ensuring interoperability with a wide range of video management systems (VMS).
- Supports Hanwha’s Wisenet open platform, WiseNet Wave, allowing custom application development for tailored solutions.
LPR vs. ANPR vs. MMCR: What’s the Difference?
- LPR (License Plate Recognition): The ability to read and record license plate numbers from vehicles.
- ANPR (Automatic Number Plate Recognition): Similar to LPR but emphasizes automated processing for tasks like enforcement or access control.
- MMCR (Make, Model, and Color Recognition): Advanced analytics that identify and classify vehicle make, model, color, and sometimes type, providing deeper insights beyond plate data.
The TNO-7180RLP combines all three capabilities, making it a comprehensive solution for vehicle monitoring and traffic management.
Designed for Global and Local Applications
The TNO-7180RLP supports a wide range of countries and regions, including the United States, Canada, the United Kingdom, much of Europe, and more. This versatility makes it suitable for both municipal traffic monitoring and private site access control.
Ready to Learn More About This LPR Solution?
The Hanwha Vision TNO-7180RLP is a high-speed LPR solution that combines advanced on-edge AI capabilities, rugged design, and powerful analytics. With its ability to capture detailed images of fast-moving vehicles, recognize license plates, and classify vehicle attributes, this camera is ideal for a variety of applications, including city surveillance, highway monitoring, and secure facility access. Its robust construction and flexible integration options ensure reliable performance in even the most demanding environments.
Ready to elevate your vehicle monitoring and security capabilities? Contact us today to learn how the TNO-7180RLP can integrate seamlessly into your security ecosystem and enhance your traffic management strategy.
