Exploring A Modular Approach to Wireless Coverage with Comba and the ComFlex 6100 Series
In the age of smart buildings and constant connectivity, in-building wireless coverage isn’t just a nice-to-have—it’s the heartbeat of modern enterprises and public safety systems. But as skyscrapers climb higher and walls get thicker with steel, glass, and concrete, reliable signal strength often struggles to keep up. It’s like trying to shout across a crowded room in a storm. Enter the Comba ComFlex 6100 Series DAS—the unsung hero of wireless coverage. Not all DAS solutions are created equal; many fall short when it comes to adapting to shifting frequency bands, carrier demands, or the unique quirks of complex venues. So how do we future-proof connectivity in an increasingly connected world? Let’s explore.
Through our strategic partnership with Comba Telecom, MCA delivers the ComFlex 6100 Series DAS, a sophisticated RF-over-fiber solution engineered for modularity, scalability, and high performance. This system provides a flexible framework for enhancing wireless network coverage by extending cellular and public safety services from existing cell sites into any indoor or outdoor environment.
What is the Comba ComFlex 6100 Series?
The Comba ComFlex 6100 Series is a modular, multi-carrier, and multi-technology Distributed Antenna System designed to deliver reliable wireless coverage across diverse environments. The system is built around a compact, 19-inch rack-mounted Master Unit (MU) that integrates RF signal access, optical conversion, and system control into a single, streamlined platform. This centralized architecture simplifies deployment, commissioning, and long-term management.
The ComFlex 6100 system can be fed by multiple RF sources, including a Base Transceiver Station (BTS), small cells, or an over-the-air signal from a donor antenna. It optimizes signal distribution through high-efficiency optical links and modular RF components, ensuring strong and consistent coverage for both commercial cellular and public safety networks. With the capacity to support up to eight independent RF sources and eight Remote Units—expandable to sixteen with an extension rack—the system scales easily to match the size and complexity of any venue.
Advanced Features and System Benefits
The ComFlex 6100 Series is engineered to provide superior performance and operational efficiency. Its design focuses on flexibility, reliability, and ease of management, making it an optimal choice for demanding wireless environments.
- Modular Design for Scalability: The system’s field-upgradable RF modules and plug-and-play architecture allow operators to adapt to new frequency bands or coverage requirements without replacing the entire platform.
- High Reliability and Low Noise: Featuring a convection-cooled, modular power supply, a high Mean Time Between Failures (MTBF), and a low noise floor, the ComFlex 6100 ensures dependable operation with reduced maintenance costs.
- Independent RF Gain Control: Each RF source is managed individually, providing system integrators with fine-tuned control over performance and eliminating interference between different carriers or frequency bands.
- Superior Performance Across Bands: Engineered with outstanding passive intermodulation (PIM) performance and high linearity, the ComFlex 6100 delivers clear, interference-free signals even in crowded RF environments.
- Flexible Management Options: The system can be configured and monitored locally through a physical connection or remotely via a web-based GUI, streamlining both initial commissioning and long-term management.
- Uninterrupted Network Testing: An independent coupling port is included for each RF source, allowing for network testing without disrupting live service.
Core System Components and Technical Specifics

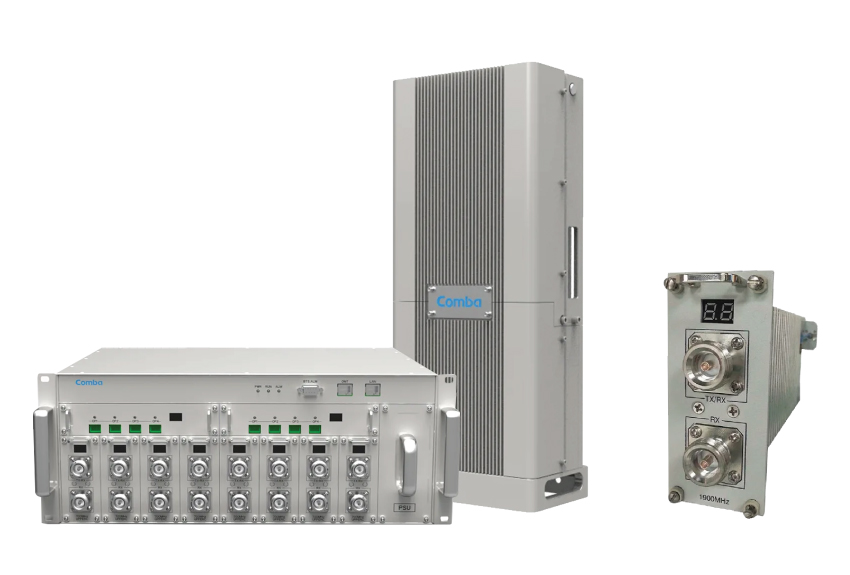

The ComFlex 6100 architecture is composed of a Master Unit, modular RF units, and a range of Remote Units. Each component is designed to work seamlessly together to create a scalable and powerful coverage solution.
Master Unit (MU)
The Master Unit is the central hub of the ComFlex DAS. It receives RF signals, converts them for fiber optic transport, and distributes them to the Remote Units.
- Chassis (MU01-RACK-E02): A 19-inch rack-mounted platform that houses the system controller, Fiber Optical Units, and up to eight RF modules. Its dimensions are 7” x 19” x 15.7”.
- Power Supply Unit (MU01-PSU-A92E01): A modular, convection-cooled design that ensures redundancy and high reliability. It operates on 100-240 VAC.
- Fiber Optical Unit (MU01-FOU-SABFOP6): This unit handles the conversion of RF signals to optical signals for distribution to Remote Units via single-mode fiber. It uses SC/APC connectors and has an optical output power of -4 to -2 dBm.

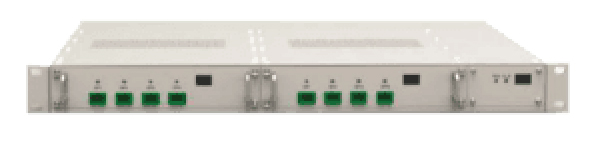

- Capacity: The standard MU supports up to eight RF sources and eight Remote Units. This can be expanded to support up to sixteen Remote Units by adding the Fiber Optical Extension Rack (MU01-FOURK-E01).
ComFlex DAS RF Modules
At the core of the system’s flexibility are the modular RF cards. These units process the incoming RF signals within the Master Unit before optical conversion.
- Broad Band Support: Modules are available for all major North American frequency bands, including Public Safety 700/800 MHz, Cellular 850 MHz, PCS 1900 MHz, and AWS.
- Independent Gain Control: Each module features independent gain control with an adjustable range of up to 40 dB, allowing for precise system balancing.
- Simplex and Duplex Modes: The RF modules support both simplex and duplex operation to meet various network requirements.
- Visual Power Display: An LED display on each module indicates the input power level for quick diagnostics.
ComFlex DAS Remote Units (RU)
Positioned at the edge of the network, Remote Units convert the optical signal back to RF, amplify it, and distribute it through antennas to provide coverage. The ComFlex 6100 Series offers several RU power levels to suit different venue sizes and coverage needs.
- Power Levels: Available in 5W (MRU) and 40W (HRU) output power levels per band.
- High Linearity Amplifiers: Ensure clean, distortion-free coverage suitable for multi-carrier environments.
- Compact and Efficient Design: The RUs are designed to be compact and lightweight for their power class, simplifying installation.
- MRU (5W): 26.0” x 9.8” x 6.3”, weighing 55.1 lbs. Power consumption is approximately 200W.
- HRU (40W): 53.1” x 8.9” x 12.4”, weighing 154.3 lbs. Power consumption is approximately 1400W.
- Cooling: The 5W MRU is convection cooled for silent operation, making it ideal for indoor enterprise deployments.
- Connectivity: All RUs use 4.3-10 female connectors for superior PIM performance.

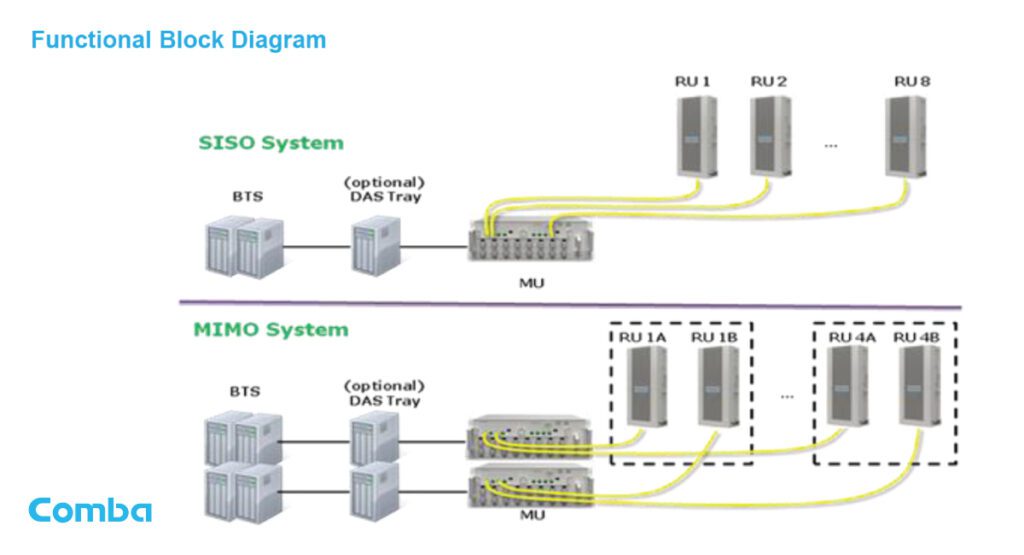

How the ComFlex 6100 System Works
The ComFlex 6100 DAS functions as a sophisticated signal distribution network. The process begins at the Master Unit, which receives RF signals from a source like a base station, small cell, or off-air donor antenna. These signals are routed to the appropriate RF modules, where gain is individually controlled.
From there, the Fiber Optical Units convert the tuned RF signals into optical signals. These are then distributed over single-mode fiber optic cables to Remote Units strategically positioned throughout the building, campus, or venue.
At the network edge, each Remote Unit receives the optical signal, converts it back to RF, amplifies it to the designed power level, and distributes it through a network of antennas to provide seamless coverage. The system’s modularity allows for targeted coverage expansion by simply adding more Remote Units, supported by an optional FOU Extension Rack for larger-scale deployments. This architecture ensures efficient, high-quality wireless coverage across even the most complex environments.
Professional Implementation and Expert Guidance
The Comba ComFlex 6100 Series DAS is a powerful component within MCA’s comprehensive portfolio of wireless infrastructure solutions. Our certified engineering teams possess extensive experience in designing and deploying complex distributed antenna systems for both enterprise and public safety applications.
Our collaborative approach begins with a thorough assessment of your facility’s unique requirements. Through RF site surveys, system design consultations, and coverage analysis, we determine if the ComFlex 6100 is the optimal solution for your specific needs. This process ensures that the selected technology aligns perfectly with your operational objectives, budget, and compliance mandates.
Should the ComFlex 6100 be the ideal fit, MCA manages the entire project lifecycle, from detailed engineering and professional installation to final commissioning and long-term support. If our analysis suggests that an alternative platform from a different partner would better serve your requirements, we will guide you to that solution. With MCA, you gain a trusted advisor dedicated to delivering reliable, secure, and efficient communications infrastructure.
Contact MCA today to schedule a consultation and learn how the Comba ComFlex 6100 DAS or another solution from our extensive portfolio can resolve your in-building wireless coverage challenges.
