ADRF SDRC Series: Part 20 Modular Repeater System with Professional Performance
Small to mid-sized facilities face unique connectivity challenges that traditional carrier-grade solutions often cannot address cost-effectively. Offices, warehouses, apartments, and retail environments frequently experience cellular dead zones that disrupt productivity, compromise safety communications, and diminish customer satisfaction. These facilities need reliable in-building coverage solutions that balance professional-grade performance with consumer-friendly deployment and maintenance requirements.
MCA’s partnership with Advanced RF Technologies enables us to deliver the ADRF SDRC Series, an innovative approach to addressing these coverage gaps through consumer-grade accessibility combined with carrier-grade reliability.
What is the ADRF SDRC Series?
The ADRF SDRC Series represents ADRF’s first Part 20-certified consumer-grade repeater, engineered to deliver superior performance and reliability for small to medium-sized venues. This modular signal booster system combines advanced digital signal processing with simplified deployment procedures, making professional-grade cellular enhancement accessible to facilities that previously could not justify the cost or complexity of traditional distributed antenna systems.
The SDRC platform supports quad-band service within a single chassis, delivering simultaneous coverage across 700 MHz, Cellular (850 MHz), PCS (1900 MHz), and AWS (1700/2100 MHz) frequency bands. With a maximum downlink output power of 17 dBm per module, the system provides robust signal enhancement while maintaining compliance with FCC Part 20 consumer booster regulations.
Advanced Digital Signal Processing Architecture
The SDRC Series incorporates sophisticated digital filtering technology typically reserved for carrier-grade infrastructure equipment. This advanced signal processing capability distinguishes the platform from conventional consumer boosters while ensuring reliable performance in complex RF environments.
Channelized Digital Filtering
The system employs up to three channelized digital filters with sharp roll-off characteristics that effectively reject adjacent carrier interference. This precision filtering enables clean signal amplification even in congested spectrum environments where multiple carriers operate in proximity.
Key Filtering Capabilities:
- Sharp roll-off digital filtering minimizes interference from adjacent frequency bands
- Band equalization ensures balanced signal strength distribution across all supported frequencies
- Automatic Level Control (ALC) maintains optimal signal levels without oversaturation
- Digital signal processing eliminates traditional analog filter limitations
Intelligent Safety Systems
The SDRC platform integrates multiple safety mechanisms that protect both the booster system and the broader cellular network infrastructure:
- Oscillation Detection and Prevention: Advanced algorithms continuously monitor signal paths to detect potential oscillation conditions, automatically implementing shutdown procedures when necessary to prevent network interference.
- Overload Protection: Integrated overload shutdown features safeguard system components from excessive input signals while preventing downstream interference.
- Network Monitoring: Real-time performance monitoring ensures optimal operation while providing immediate notification of conditions requiring attention.
Modular System Architecture
The SDRC Series leverages a flexible modular design that enables customized configurations tailored to specific facility requirements while providing scalability for future expansion.
Repeater Module Portfolio

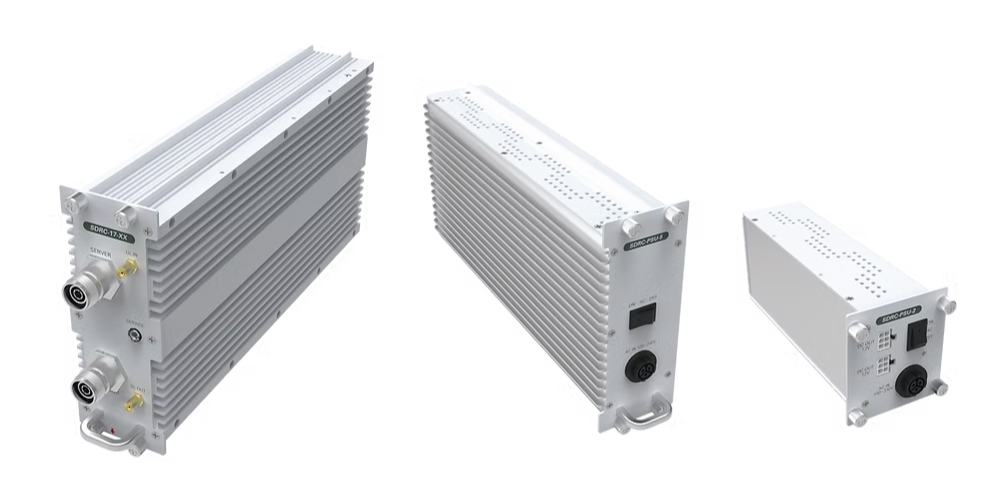

The core of the SDRC system consists of hot-swappable repeater modules designed for specific frequency bands:
- SDRC-17-7F (700 MHz Module): Supports FirstNet Band 14 and commercial 700 MHz LTE services, providing essential low-band coverage for extended range and building penetration.
- SDRC-17-C (Cellular Module): Delivers traditional cellular (850 MHz) coverage for voice and data services, ensuring compatibility with legacy networks while supporting LTE enhancements.
- SDRC-17-P (PCS Module): Covers PCS 1900 MHz frequencies widely used for high-capacity LTE services, particularly effective in dense user environments.
- SDRC-17-A (AWS Module): Supports AWS 1700/2100 MHz bands extensively deployed for both LTE and 5G services, providing future-ready connectivity enhancement.
Each module delivers 17 dBm maximum downlink output power with 4.3-10 Female donor and server ports, plus SMBL Female ports for downlink output and uplink input connectivity.

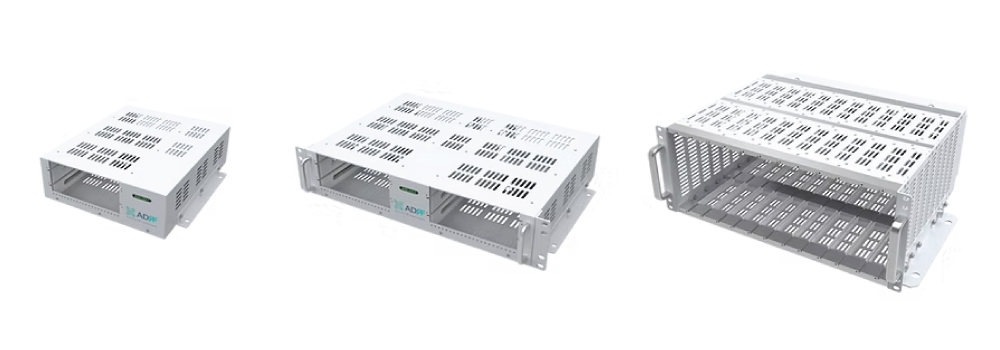

Chassis and Power Supply Options
The system offers multiple chassis configurations to accommodate diverse installation requirements:

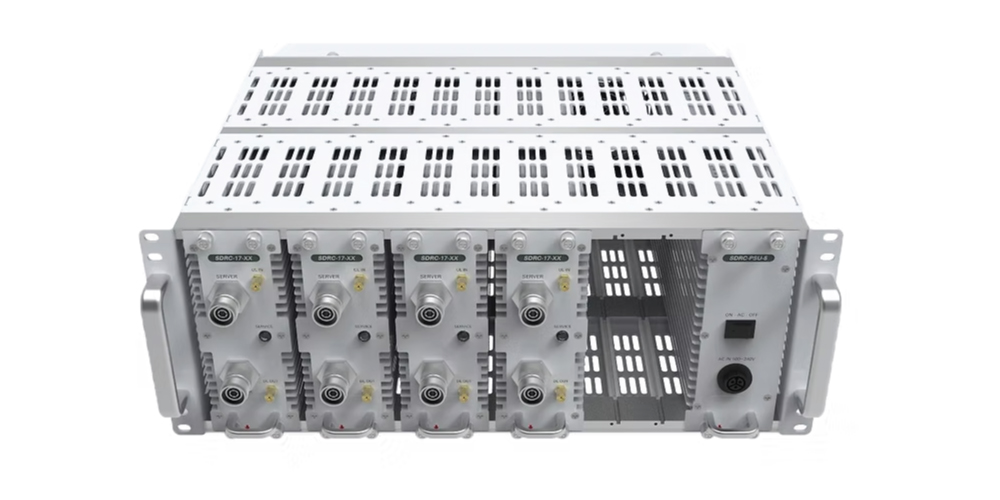

- SDRC-CHA-5 (Five-Slot Chassis): Supports up to five repeater modules plus one PSU-5 power supply, providing maximum flexibility for multi-band deployments. Features both wall-mount and 19-inch rack-mount capabilities with integrated active cooling.
- SDRC-CHA-2 (Two-Slot Chassis): Accommodates two repeater modules and one PSU-2 power supply, ideal for focused band enhancement in smaller facilities.
- SDRC-CHA-1 (Single-Slot Chassis): Compact solution supporting one module and PSU-2, perfect for targeted coverage enhancement.
Power Supply Specifications:
- SDRC-PSU-5: 250W power capacity supporting up to five modules with 100-240V AC input
- SDRC-PSU-2: Lower capacity option for two-module configurations
Signal Distribution Components
The SDRC system includes specialized components for optimal signal distribution:
- SDR-CHC-V (Quad-Band Channel Combiner): This critical component splits donor input signals and combines server output signals across all supported frequency bands while minimizing insertion loss. The unit features N-Type Female RF ports, wall-mount design for integration with SDRC-CHA chassis, and available test coupling ports for system verification.
Complete System Package

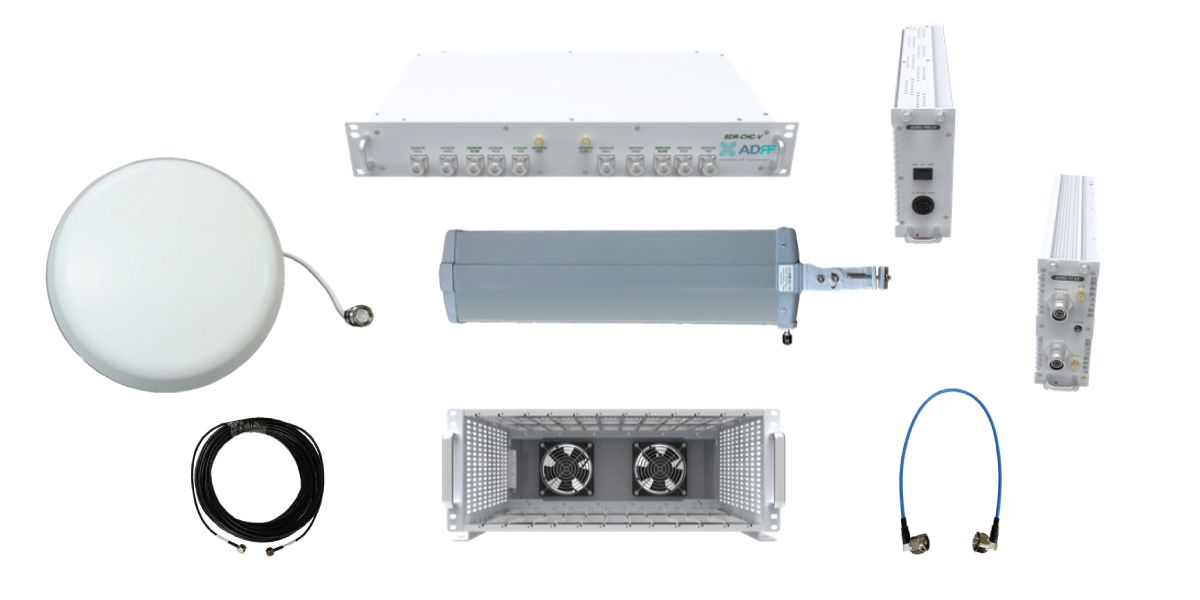

SDRC-17-7FCPA-PKG Complete Solution
ADRF offers a comprehensive package that includes all components necessary for immediate deployment:
Included Components:
- SDRC-17-7F/C/P/A repeater modules for all four frequency bands
- SDRC-CHA-5 five-slot chassis with active cooling
- SDRC-PSU-5 power supply unit
- SDR-CHC-V quad-band channel combiner
- AD-DBYG-698-2700-N dual-band Yagi donor antenna (698-2700 MHz)
- AD-OMNI-SISO-N SISO omnidirectional server antenna (698-2700 MHz)
- J-LWR200-82-NMS-NMS 82-foot LWR-200 coaxial cables (2 units)
- J-SF141-1H-4MR-NMR jumper cables (8 units)
This turnkey package eliminates the complexity of component selection while ensuring optimal system performance through factory-matched components.
Antenna Solutions
The SDRC system includes professional-grade antennas designed for optimal coverage:
- AD-DBYG-698-2700-N Donor Antenna: High-gain Yagi design provides excellent signal acquisition from distant cell towers across the full 698-2700 MHz range. Includes wall or pole mounting bracket for flexible installation.
- AD-OMNI-SISO-N Server Antenna: Omnidirectional design ensures uniform signal distribution throughout covered areas. Ceiling-mountable with included bracket for discrete installation.
Management and Monitoring Capabilities
Web-Based System Interface
The SDRC Series incorporates ADRF’s celebrated web-based graphical user interface, providing comprehensive system management without requiring specialized software or extensive technical training.
Management Features:
- Intuitive configuration interface for all system parameters
- Real-time performance monitoring with detailed status displays
- Remote control capabilities through external wireless modem integration
- SNMP support for integration with existing network management systems
- Alarm monitoring with immediate notification of system conditions requiring attention
Hot-Swappable Maintenance
The modular design enables service continuity during maintenance or upgrades. Individual modules can be replaced without powering down the entire system, minimizing service interruptions while simplifying ongoing maintenance procedures.
Applications Across Facility Types

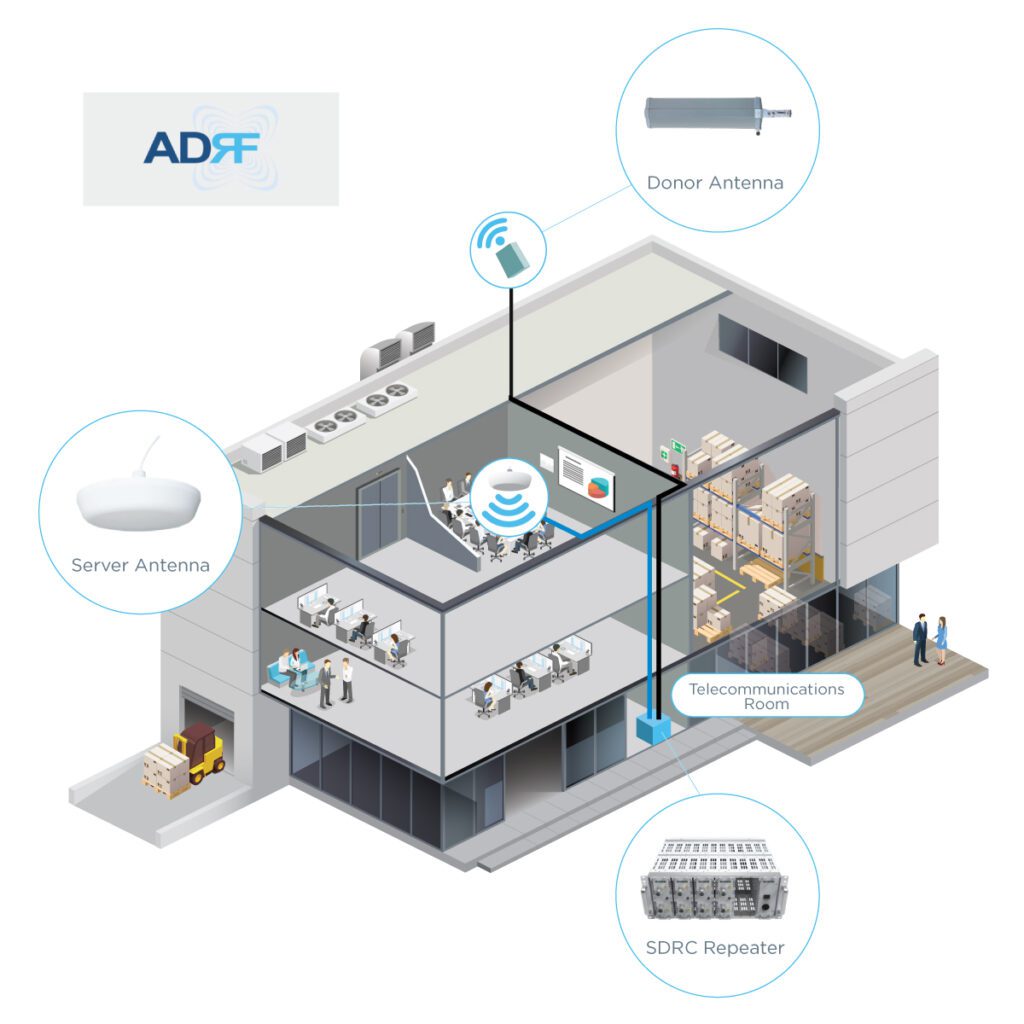

Office Environments
Corporate offices and small business facilities benefit from the SDRC’s ability to eliminate cellular dead zones in conference rooms, individual offices, and common areas. The system supports both voice communications and data-intensive applications essential for modern business operations.
Warehouse and Industrial Facilities
Large warehouse spaces and industrial facilities often experience poor cellular coverage due to metal construction and expansive floor plans. The SDRC provides reliable connectivity for inventory management systems, safety communications, and staff coordination throughout these challenging environments.
Multi-Tenant Residential Buildings
Apartment complexes and condominiums frequently struggle with inconsistent cellular service due to building materials and structural density. The SDRC delivers reliable coverage for residents while supporting building management communications and emergency systems.
Retail Environments
Shopping centers, stores, and hospitality venues require dependable cellular service for point-of-sale systems, customer engagement applications, and staff communications. The SDRC ensures seamless connectivity that supports both operational requirements and customer satisfaction.
Part 20 Certification and Compliance
The SDRC Series operates under FCC Part 20 consumer booster regulations, providing significant advantages for deployment and ongoing operation:
- Simplified Installation Process: Part 20 certification reduces project complexity and installation time compared to traditional carrier-grade systems.
- Cost-Effective Deployment: Consumer-grade classification eliminates many regulatory hurdles while maintaining professional-grade performance standards.
- Carrier Registration: Installation requires registration with cellular operators, which can be completed through carrier websites, ensuring network compatibility and compliance.
Performance Specifications and Technical Capabilities
RF Performance Parameters
- Maximum Output Power: 17 dBm per module across all frequency bands
- Digital Filtering: Up to three channelized filters with sharp roll-off characteristics
- Frequency Coverage: Complete support for 700 MHz, Cellular (850 MHz), PCS (1900 MHz), and AWS (1700/2100 MHz) bands
- Network Compatibility: Full 4G LTE support with 5G readiness across supported frequencies
Environmental and Installation Specifications
- Power Requirements: 100-240V AC input with multiple power supply options
- Cooling: Active cooling systems in all chassis configurations
- Mounting Options: Wall-mount and rack-mount flexibility
- Operating Environment: Indoor installation with standard telecommunications room requirements
Future-Ready Connectivity Enhancement
The SDRC Series provides immediate coverage improvement while establishing a foundation for future technology evolution. The modular architecture accommodates emerging frequency bands and service enhancements without requiring complete system replacement.
- 4G and 5G Support: Current modules support existing LTE services while providing compatibility pathways for 5G network deployments across supported frequency bands.
- Scalable Architecture: Additional modules can be integrated as facility requirements expand or new frequency bands become available.
- Technology Evolution: Digital signal processing capabilities adapt to changing network requirements while maintaining optimal performance standards.
Professional Partnership and Expert Guidance
The ADRF SDRC Series represents one solution within MCA’s comprehensive portfolio of connectivity enhancement technologies. Our certified engineering teams conduct thorough facility assessments to determine whether the SDRC platform addresses specific coverage challenges or if alternative solutions from our extensive partner network would better serve unique operational requirements.
Our consultative approach ensures optimal technology selection while providing the professional installation and lifecycle support necessary for sustained performance. Through detailed site surveys and RF analysis, we design customized solutions that resolve connectivity issues while supporting long-term operational objectives and budget considerations.
Contact MCA today to explore how the ADRF SDRC Series or other solutions from our partner portfolio can enhance your facility’s cellular coverage. Our expert teams will assess your specific requirements and recommend the most effective approach to achieving reliable in-building connectivity, whether through the SDRC platform or alternative technologies better suited to your unique environment and operational needs.
