ADRF Hybrid Couplers: Advanced Low-PIM Solutions for Complex DAS Networks

Modern distributed antenna systems require sophisticated RF components that can efficiently manage signal distribution across multiple frequency bands while maintaining exceptional performance standards. As wireless networks become increasingly complex with the integration of 5G services, public safety communications, and multi-carrier operations, the demand for precision-engineered coupling solutions has never been greater. System integrators need reliable components that minimize signal degradation, prevent intermodulation distortion, and provide the flexibility necessary for diverse deployment scenarios.

Through our strategic partnership with Advanced RF Technologies, MCA delivers ADRF’s comprehensive portfolio of hybrid couplers, engineered to provide exceptional low-PIM performance and versatile signal management capabilities for complex DAS infrastructures.

---

Advanced Low-PIM Design Architecture

Exceptional Passive Intermodulation Performance

The defining characteristic of ADRF hybrid couplers is their advanced low-PIM design, achieving passive intermodulation specifications as exceptional as -161 dBc at 2 x 43 dBm. This performance level ensures clean operation in demanding multi-carrier environments where multiple high-power signals operate simultaneously within close proximity.

Passive intermodulation distortion occurs when multiple signals mix within non-linear junctions, creating unwanted interference products that can degrade system performance and create regulatory compliance issues. ADRF’s precision manufacturing processes, advanced material selection, and optimized mechanical design eliminate sources of non-linearity that contribute to PIM generation.

Key PIM Mitigation Features:

• Precision-machined RF connections ensuring optimal electrical contact integrity
• Advanced material selection eliminating ferromagnetic and non-linear elements
• Optimized mechanical design minimizing current density variations and junction stress
• Comprehensive quality control testing verifying PIM performance across operational parameters

Universal Frequency Coverage

ADRF hybrid couplers provide comprehensive frequency coverage spanning from 80 MHz through 2700 MHz, addressing the complete spectrum of commercial cellular bands, public safety frequencies, and emerging 5G allocations. This universal coverage approach eliminates the need for multiple specialized components while ensuring compatibility with diverse system architectures.

Comprehensive Spectrum Support:

• Extended Low-Band: 80-960 MHz covering VHF, 600 MHz, 700 MHz, 800 MHz, and 900 MHz allocations
• Traditional Cellular: 698-940 MHz optimized for public safety and commercial cellular services
• High-Band Commercial: 1710-2690 MHz encompassing PCS, AWS, WCS, and BRS spectrum
• Advanced Coverage: Up to 2700 MHz supporting emerging wireless services and technologies

Superior Electrical Performance

The platform incorporates advanced RF design techniques that achieve exceptional electrical performance characteristics across all operational parameters. Insertion losses as low as 0.3 dB preserve precious signal strength while isolation specifications exceeding 50 dB prevent unwanted signal coupling and interference.

---

Comprehensive Product Portfolio

The ADRF hybrid coupler family encompasses specialized models optimized for different coupling functions and performance requirements, providing flexibility to address diverse system architectures while maintaining consistent quality standards.

Directional Couplers: Precision Signal Sampling

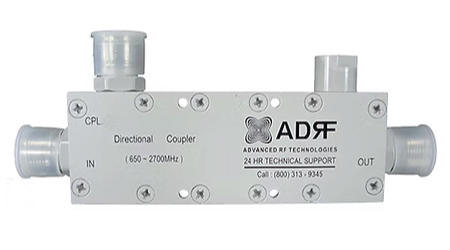

ADRF-DCPL-6/10-N-LPIM Series

These directional couplers provide reliable signal sampling and monitoring capabilities with exceptional low-PIM performance for budget-conscious deployments that require professional-grade reliability.

Technical Specifications:

• Frequency Coverage: 690-2700 MHz comprehensive commercial band support
• Coupling Values: 6 dB ± 1 dB or 10 dB ± 1 dB precision coupling
• Insertion Loss: Maximum 1.8 dB (6 dB model) or 0.8 dB (10 dB model)
• PIMD Performance: -153 dBc at 2 x 43 dBm ensuring clean operation

Performance Characteristics:

• VSWR: Maximum 1.25:1 ensuring excellent impedance matching
• Isolation: Minimum 20 dB (6 dB model) or 30 dB (10 dB model)
• Directivity: Minimum 14 dB (6 dB model) or 20 dB (10 dB model)
• Power Handling: 50W average (6 dB model) or 100W average (10 dB model)

Construction and Installation:

• Dimensions: 4.9 x 1.3 x 0.9 inches compact form factor
• Weight: 0.7 lbs enabling flexible installation options
• Connectors: N-Type Female ensuring reliable connections
• Environmental Protection: NEMA4X (IP65) rating for challenging environments
• Temperature Range: -40°F to +185°F extreme operational capability

These directional couplers excel in applications requiring signal monitoring, level detection, and distributed signal tapping where cost-effectiveness and reliability are paramount considerations.

Hybrid Couplers: Balanced Power Division

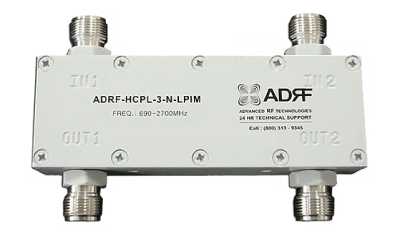

ADRF-HCPL-3-N-LPIM: Cost-Effective 3 dB Solution

This hybrid coupler provides balanced 3 dB power division with exceptional low-PIM performance, ideal for applications requiring equal signal splitting or combining across multiple paths.

Core Performance:

• Frequency Range: 690-2700 MHz covering essential commercial bands
• Insertion Loss: Maximum 3.8 dB for balanced power division
• PIMD Specification: -153 dBc at 2 x 43 dBm maintaining signal integrity
• Isolation: Minimum 25 dB between output ports preventing interference

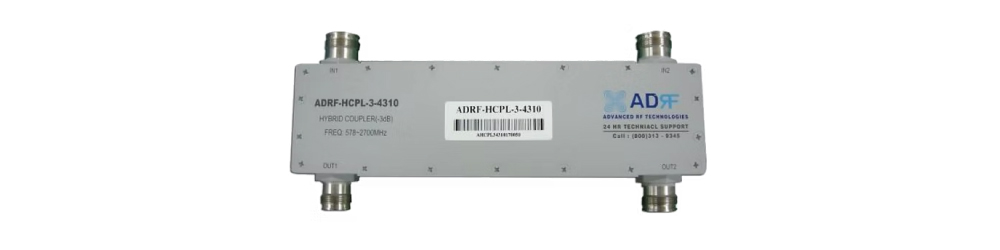

ADRF-HCPL-3-4310: Premium Performance Solution

Engineered for demanding applications requiring maximum performance, this premium hybrid coupler delivers enhanced specifications with professional-grade 4.3-10 connectivity.

Enhanced Specifications:

• Extended Range: 578-2700 MHz providing broader frequency coverage
• Superior PIMD: -161 dBc at 2 x 43 dBm for exceptional multi-carrier performance
• Professional Connectivity: 4.3-10 Female connectors for high-power applications
• Power Handling: 100W average, 1000W peak capability

Construction Features:

• Robust Design: 8.46 x 2.36 x 1.10 inches professional form factor
• Quality Construction: 2.2 lbs indicating substantial mechanical integrity
• Environmental Protection: NEMA-4X (IP65) rating ensuring reliable operation
• Temperature Capability: -40°F to +185°F extreme range operation

Cross-Band Couplers: Advanced Frequency Management

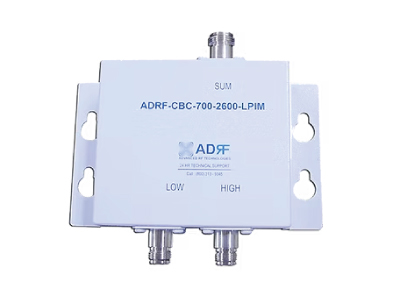

ADRF-CBC-700-2600-LPIM: Dual-Band Integration

This cross-band coupler enables efficient combining or separation of low-band (698-940 MHz) and high-band (1710-2690 MHz) frequencies within unified distribution paths.

Dual-Band Performance:

• Low-Band Coverage: 698-940 MHz encompassing 700 MHz and cellular frequencies
• High-Band Coverage: 1710-2690 MHz spanning PCS through BRS allocations
• Exceptional Loss: Maximum 0.3 dB insertion loss preserving signal strength
• Superior Isolation: Minimum 50 dB between frequency bands

System Integration:

• Compact Design: 5.39 x 3.22 x 1.65 inches space-efficient form factor
• Lightweight: 0.88 lbs enabling flexible mounting options
• Professional Connectivity: N-Type Female connectors for reliable connections
• Environmental Rating: IP65 protection for diverse installation environments

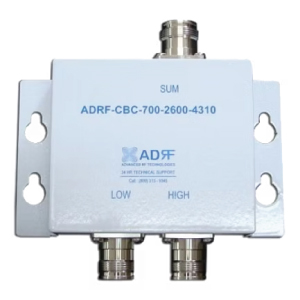

ADRF-CBC-700-2600-4310: Premium Cross-Band Solution

The premium variant incorporates enhanced construction and 4.3-10 connectivity for demanding high-power applications requiring maximum reliability and performance.

Enhanced Capabilities:

• Identical RF Performance: Same exceptional frequency coverage and insertion loss
• Premium Connectivity: 4.3-10 Female connectors for professional installations
• Higher Power Rating: 200W average, 2000W peak power handling
• Extended Temperature: -22°F to +158°F operational range
• Enhanced Construction: 1.32 lbs robust mechanical design

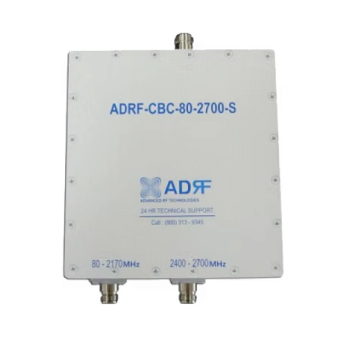

ADRF-CBC-80-2700-S: Extended Range Solution

This specialized cross-band coupler addresses unique deployment scenarios requiring extended frequency coverage beyond traditional cellular allocations.

Extended Coverage Specifications:

• Ultra-Wide Low-Band: 80-2170 MHz encompassing VHF through traditional cellular
• High-Band Extension: 2400-2700 MHz covering BRS and emerging allocations
• Variable Insertion Loss: 0.3 dB maximum (low-band), 0.5 dB maximum (high-band)
• Comprehensive Power: 100W average power handling across frequency ranges

Specialized Applications:

• Professional Construction: 6.36 x 5.86 x 1.45 inches robust form factor
• Substantial Build: 4.0 lbs indicating professional-grade construction
• Enhanced Protection: IP67 rating for demanding outdoor environments
• Extended Operation: -40°F to +140°F temperature capability

---

Strategic Applications and System Integration

Multi-Carrier Commercial DAS

Modern commercial distributed antenna systems require sophisticated coupling solutions that can efficiently manage signals from multiple carriers across diverse frequency bands while maintaining exceptional performance standards.

• Signal Distribution Optimization: Directional couplers enable precise signal level monitoring and distributed tapping throughout large systems, ensuring optimal power distribution and system performance verification. The low insertion loss characteristics preserve precious signal strength while comprehensive monitoring capabilities facilitate system optimization and troubleshooting.
• Balanced Power Division: Hybrid couplers provide efficient signal splitting for antenna diversity applications, sector coverage distribution, and redundant path implementation. The exceptional isolation characteristics prevent interference between output ports while balanced power division ensures uniform coverage distribution.
• Frequency Band Management: Cross-band couplers enable efficient consolidation of low-band and high-band services within unified distribution infrastructure, reducing system complexity while maintaining optimal performance across all supported frequency bands.

Public Safety ERCES Implementation

Emergency Responder Communication Enhancement Systems place demanding requirements on RF coupling components, requiring exceptional reliability and performance standards essential for life-safety applications.

• Critical Signal Integrity: The exceptional low-PIM performance ensures clean operation in high-power public safety environments where signal quality directly impacts emergency responder safety and operational effectiveness. Advanced coupling solutions prevent interference and maintain signal integrity throughout complex indoor environments.
• Multi-Band Integration: Cross-band coupling capabilities enable efficient integration of traditional public safety frequencies (700/800 MHz) with commercial cellular services and FirstNet Band 14, providing unified coverage solutions that address diverse communication requirements within single system architectures.
• System Reliability: Robust construction and comprehensive environmental protection ensure reliable operation during emergency situations when communications become most critical for first responder operations and public safety coordination.

Enterprise and Campus Networks

Large-scale enterprise deployments require coupling solutions that address diverse communication requirements while providing the reliability and performance necessary for business-critical applications.

• Technology Convergence: Universal coupling capabilities enable consolidation of multiple wireless services including cellular, public safety, and specialized applications within unified distribution infrastructure that reduces installation complexity and ongoing maintenance requirements.
• Scalable Architecture: Modular coupling options accommodate organic system growth and technology evolution without requiring complete infrastructure replacement, protecting long-term technology investments while maintaining optimal performance characteristics.
• Professional Integration: Comprehensive monitoring capabilities and professional connectivity options ensure seamless integration with existing network management systems while providing the diagnostic capabilities necessary for proactive system maintenance and optimization.

Advanced Engineering and Quality Assurance

Precision Manufacturing Excellence

ADRF hybrid couplers incorporate advanced manufacturing techniques that ensure consistent performance characteristics and long-term reliability across diverse deployment environments and applications.

• RF Engineering Optimization: Computer-aided design optimization ensures optimal electrical performance while precision manufacturing processes maintain tight tolerances essential for achieving specified insertion loss, isolation, and PIM characteristics across production runs.
• Material Science Applications: Advanced material selection and processing techniques minimize passive intermodulation generation while ensuring mechanical durability and environmental resistance throughout extended operational lifecycles.
• Quality Control Systems: Comprehensive testing procedures verify all performance specifications before shipment while statistical process control methods ensure consistent quality and reliability across all production units.

Performance Verification and Testing

• Comprehensive RF Testing: All performance parameters including insertion loss, isolation, return loss, coupling accuracy, and PIMD specifications are verified across operational frequency ranges through automated test equipment that ensures consistent performance and reliability.
• Environmental Validation: Temperature cycling, humidity exposure, and mechanical stress testing verify reliable operation under specified environmental conditions while ensuring long-term performance stability throughout demanding deployment scenarios.
• Power Handling Verification: High-power testing confirms specified power handling capabilities while thermal analysis ensures reliable operation under maximum power conditions without performance degradation or reliability compromise.

---

---
