ADRF Duplexers & Multiplexers: Advanced Signal Management for DAS and BDA Systems
Modern distributed antenna systems and bi-directional amplifiers face increasingly complex signal management challenges as wireless networks expand across multiple frequency bands and service types. Healthcare facilities, educational campuses, and public safety installations require seamless operation across diverse communication systems while maintaining exceptional isolation between transmit and receive paths. The challenge lies in efficiently managing signal separation, combining, and routing while minimizing insertion losses and preventing interference that could compromise system performance or regulatory compliance.
Through our strategic partnership with Advanced RF Technologies, MCA delivers ADRF’s comprehensive portfolio of duplexers and multiplexers, engineered to provide exceptional signal management capabilities for complex wireless infrastructure deployments.
What are ADRF Duplexers and Multiplexers?
ADRF Duplexers and Multiplexers represent specialized RF components designed to address the fundamental signal management requirements of modern wireless infrastructure systems. These precision-engineered devices enable efficient signal separation, combination, and routing while maintaining the exceptional isolation characteristics essential for reliable multi-frequency operation.
- Duplexers function as frequency-selective devices that enable simultaneous transmission and reception operations using shared antenna infrastructure. These components separate uplink (transmit) and downlink (receive) signal paths while maintaining exceptional isolation between them, preventing interference that could degrade system performance or compromise regulatory compliance.
- Multiplexers serve as multi-channel combining and separation devices that enable multiple transmit and receive channels across different frequency bands to operate through unified antenna infrastructure. These sophisticated components allow diverse wireless services to share common distribution systems while maintaining channel-to-channel isolation essential for clean operation.
Advanced Signal Management Architecture
Precision Frequency Separation Technology
ADRF duplexers incorporate advanced filtering technology that achieves exceptional transmit-to-receive isolation specifications ranging from 70 dB to 95 dB depending on frequency band and application requirements. This exceptional isolation ensures clean signal separation while preventing transmitter energy from interfering with sensitive receiver circuits.
The platform addresses all major commercial and public safety frequency bands including 700 MHz FirstNet, 800 MHz SMR, 1900 MHz PCS, and 2100 MHz AWS allocations. Each duplexer design incorporates band-specific optimization that maximizes performance while maintaining the compact form factors essential for space-constrained installations.
Multi-Channel Integration Capabilities
ADRF multiplexers enable sophisticated multi-channel operation across VHF (136-174 MHz) and UHF (382-512 MHz) spectrum allocations with customizable channel spacing options. These custom-built devices accommodate specific frequency separation requirements ranging from 1.2 MHz for dense channel environments to 10 MHz for applications requiring enhanced isolation.
The multiplexer platform incorporates advanced filtering techniques that achieve channel-to-channel isolation specifications of 75-85 dB while maintaining insertion losses optimized for each specific frequency spacing requirement. This approach ensures clean multi-channel operation while preserving signal strength throughout complex distribution systems.

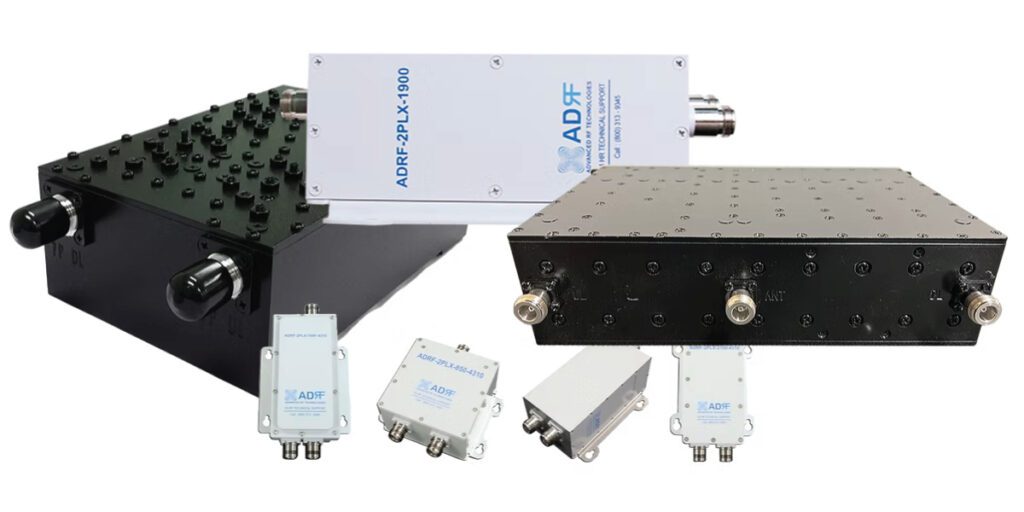

Comprehensive Product Portfolio
ADRF-2PLX-4310 Series: Professional Duplexer Solutions
The ADRF-2PLX-4310 Series encompasses precision-engineered duplexers optimized for major commercial and public safety frequency bands, providing exceptional performance specifications essential for demanding wireless infrastructure applications.
ADRF-2PLX-700F-4310: FirstNet Optimized Solution
This specialized duplexer addresses the complex frequency allocation requirements of FirstNet Band 14 and traditional 700 MHz public safety spectrum, incorporating dual-band receive capabilities that accommodate both lower and upper 700 MHz allocations.
Technical Specifications:
- Receive Coverage: 698-716 MHz and 776-787 MHz dual-band support
- Transmit Coverage: 728-757 MHz optimized for FirstNet operations
- Insertion Loss: Maximum 2.7 dB receive path, 2.2 dB transmit path
- Isolation Performance: Minimum 80 dB receive isolation, 70 dB transmit isolation
Advanced Performance Features:
- Passband Characteristics: 1.4 dB maximum receive ripple, 1.2 dB transmit ripple
- VSWR Specification: ≤1.22:1 ensuring excellent impedance matching
- PIMD Performance: >153 dBc at 2 x 43 dBm for multi-carrier compatibility
- Power Handling: 100W average power rating with robust thermal management
Professional Construction:
- Dimensions: 6.59 x 3.32 x 3.24 inches accommodating complex filtering requirements
- Weight: 4.18 lbs indicating substantial mechanical integrity
- Environmental Protection: IP65 rating for reliable outdoor operation
- Connectivity: 4.3-10 Female connectors for professional installations
ADRF-2PLX-850-4310: SMR and Cellular Solution
Engineered specifically for 800 MHz SMR and traditional cellular applications, this duplexer delivers optimized performance across the complete 824-894 MHz frequency range.
Performance Optimization:
- Frequency Coverage: 824-849 MHz receive, 869-894 MHz transmit
- Insertion Loss: Maximum 1.5 dB across both transmit and receive paths
- Exceptional Isolation: Minimum 70 dB transmit-to-receive separation
- VSWR Performance: ≤1.28:1 for optimal power transfer efficiency
Mechanical Specifications:
- Compact Design: 4.84 x 4.76 x 2.55 inches space-efficient form factor
- Professional Weight: 4.45 lbs robust construction
- Environmental Rating: IP65 protection for demanding installations

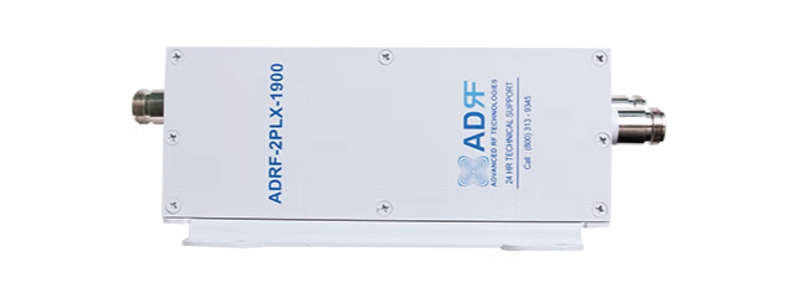

ADRF-2PLX-1900-4310: PCS Band Excellence
This PCS-optimized duplexer delivers exceptional performance across the 1850-1995 MHz frequency range, supporting high-capacity commercial cellular deployments with advanced performance specifications.
Technical Excellence:
- Frequency Allocation: 1850-1915 MHz receive, 1930-1995 MHz transmit
- Low Insertion Loss: Maximum 2.0 dB maintaining signal strength
- Superior Isolation: Minimum 95 dB transmit-to-receive separation
- Precision Matching: ≤1.28:1 VSWR for optimal performance
ADRF-2PLX-2100-4310: AWS Band Solution
Designed for AWS spectrum deployments, this duplexer addresses the 1710-2155 MHz frequency range with optimized performance characteristics essential for modern LTE and emerging 5G applications.
AWS Optimization:
- Dual-Band Coverage: 1710-1755 MHz receive, 2110-2155 MHz transmit
- Minimal Loss: Maximum 1.5 dB insertion loss preserving signal integrity
- High Isolation: Minimum 80 dB preventing interference
- Compact Profile: 6.39 x 2.99 x 1.77 inches with 2.86 lbs weight

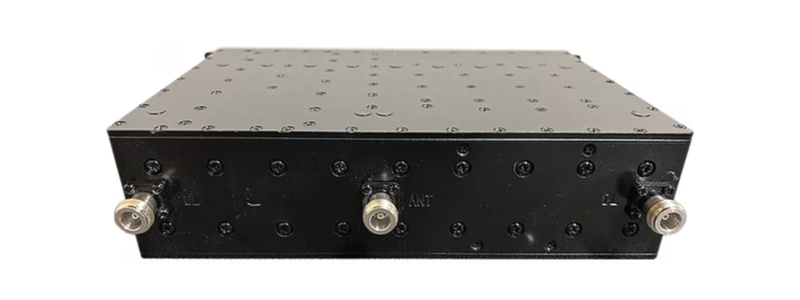

ADRF-MPLX-V Series: Custom VHF Multiplexers
The ADRF-MPLX-V Series encompasses custom-built VHF multiplexers designed to address specific frequency spacing and isolation requirements across the 136-174 MHz spectrum allocation.
Frequency Spacing Optimization
MPLX-V-1 and MPLX-V-4 Models:
- Frequency Spacing: 4.5-10 MHz channel separation for enhanced isolation
- Insertion Loss: 1.8-2.4 dB optimized for wide channel spacing
- Isolation Performance: 85 dB transmit-to-receive separation
- Applications: Wide-channel VHF systems requiring maximum isolation
MPLX-V-2 and MPLX-V-5 Models:
- Frequency Spacing: 2.75-4.5 MHz moderate channel separation
- Insertion Loss: 2.4-4.5 dB balanced performance characteristics
- Isolation Specification: 85 dB maintaining excellent separation
- Applications: Standard VHF repeater deployments with balanced requirements
MPLX-V-3 and MPLX-V-6 Models:
- Frequency Spacing: 1.2-2.75 MHz tight channel spacing for dense environments
- Insertion Loss: 4.5-7.8 dB compensated by enhanced filtering
- Isolation Performance: 75 dB suitable for dense channel applications
- Applications: High-density VHF systems maximizing spectrum efficiency
Professional Construction Options
IP50 Indoor Models (MPLX-V-1, V-2, V-3):
- Environmental Protection: IP50 rating for controlled indoor environments
- Temperature Range: -40°F to 149°F operational capability
- Power Handling: 20W continuous power rating
- Connectivity: N-Type Female antenna and transmit/receive ports
IP66 Outdoor Models (MPLX-V-4, V-5, V-6):
- Enhanced Protection: IP66 rating for demanding outdoor installations
- Identical Performance: Same RF specifications as indoor variants
- Weatherproof Construction: Advanced sealing for long-term reliability
- Mounting Flexibility: Custom dimensions accommodating diverse installations
ADRF-MPLX-U Series: Custom UHF Multiplexers
The ADRF-MPLX-U Series mirrors the VHF platform architecture while addressing the 382-512 MHz UHF spectrum allocation with identical performance specifications and construction options.
UHF Spectrum Optimization:
- Complete Coverage: 382-512 MHz encompassing traditional UHF allocations
- Identical Spacing Options: 1.2-10 MHz channel separation variants
- Performance Consistency: Same insertion loss and isolation specifications as VHF models
- Construction Flexibility: IP50 and IP66 variants matching application requirements
Strategic Applications and System Integration
Public Safety ERCES Implementation
Emergency Responder Communication Enhancement Systems demand exceptional reliability and performance standards where duplexers and multiplexers serve critical signal management functions essential for life-safety communications.
- FirstNet Integration: The ADRF-2PLX-700F-4310 duplexer provides comprehensive FirstNet Band 14 support while maintaining compatibility with traditional 700 MHz public safety frequencies, enabling unified coverage solutions that address both legacy and modern broadband requirements within single system architectures.
- Multi-Band Coordination: Custom multiplexers enable integration of VHF, UHF, and cellular services within unified distribution infrastructure, supporting diverse public safety communication requirements while maintaining the isolation standards necessary for regulatory compliance and operational reliability.
Commercial Cellular Deployments
Modern commercial cellular systems require sophisticated signal management that accommodates multiple carriers and frequency bands while maintaining the performance standards essential for reliable service delivery.
- Carrier Aggregation Support: Duplexers enable efficient transmit-receive separation across multiple commercial bands, supporting advanced cellular technologies including carrier aggregation and MIMO implementations that enhance capacity and user experience.
- Multi-Service Integration: The comprehensive frequency coverage enables simultaneous support for legacy cellular services and emerging 5G deployments within unified infrastructure platforms that reduce installation complexity and ongoing maintenance requirements.
Custom Repeater Applications
VHF and UHF repeater systems benefit from custom multiplexer solutions that address specific frequency allocation requirements while maintaining exceptional performance standards essential for reliable communications.
- Spectrum Efficiency: Custom channel spacing options enable optimal spectrum utilization while maintaining isolation standards necessary for clean multi-channel operation, supporting diverse communication requirements within space-constrained frequency allocations.
- Integration Flexibility: Custom construction options accommodate diverse mechanical and environmental requirements while providing the RF performance necessary for reliable repeater operation across challenging deployment scenarios.
Advanced Engineering and Quality Assurance
Custom Design Capabilities
ADRF’s multiplexer platform incorporates comprehensive custom design capabilities that address specific frequency spacing, isolation, and mechanical requirements while maintaining consistent performance standards across diverse applications.
- Frequency Planning Integration: Custom multiplexer designs incorporate detailed frequency planning analysis that optimizes channel spacing, filtering characteristics, and isolation performance based on specific spectrum allocations and operational requirements.
- Mechanical Optimization: Custom construction accommodates diverse installation requirements while maintaining RF performance standards, providing flexibility for space-constrained installations and specialized environmental conditions.
Performance Verification
- Comprehensive RF Testing: All duplexer and multiplexer products undergo extensive RF performance testing that verifies insertion loss, isolation, VSWR, and PIMD specifications across operational frequency ranges while ensuring consistent quality and reliability.
- Environmental Validation: Temperature cycling, humidity exposure, and mechanical stress testing ensure reliable operation under specified environmental conditions while maintaining long-term performance stability throughout demanding deployment scenarios.
Professional Implementation and Expert Guidance
The ADRF Duplexer and Multiplexer portfolio represents one component within MCA’s comprehensive wireless infrastructure solutions. Our certified engineering teams conduct thorough system assessments to determine whether ADRF duplexers and multiplexers address specific signal management requirements or if alternative solutions from our extensive partner network would better serve unique operational needs.
Through detailed consultations and comprehensive system design services, we create customized solutions that optimize signal management while supporting long-term operational objectives. This professional approach ensures maximum return on infrastructure investment while maintaining the performance standards essential for reliable wireless communications.
Contact MCA today to explore how ADRF Duplexers and Multiplexers or other solutions from our comprehensive partner portfolio can optimize your wireless infrastructure signal management requirements. Our expert teams will conduct thorough evaluations of your specific requirements and recommend the most effective approach to achieving reliable, high-performance signal separation and combining for your unique deployment environment and operational objectives.
