ADRF Channel Combiners for BDA and DAS Systems

ADRF Channel Combiners: Universal Low-Loss Solutions for Multi-Band DAS Infrastructure

Modern distributed antenna systems face increasing complexity as wireless networks expand across diverse frequency bands while demanding exceptional performance standards. Healthcare facilities, corporate campuses, and public safety installations require seamless connectivity across multiple carriers and technologies within unified infrastructure platforms. The challenge lies in efficiently combining signals from various frequency bands while maintaining signal integrity, minimizing losses, and ensuring reliable multi-carrier operation throughout complex indoor environments.

Through our strategic partnership with Advanced RF Technologies, MCA delivers ADRF’s comprehensive portfolio of channel combiners, engineered to provide universal low-loss solutions that enable efficient multi-band DAS deployments across diverse applications and environments.

---

Advanced RF Performance Architecture

Universal Frequency Coverage

ADRF channel combiners incorporate advanced filtering and combining technologies that enable simultaneous operation across the complete spectrum of commercial and public safety frequency allocations. This universal coverage approach provides unprecedented flexibility for system designers while ensuring compatibility with current and future wireless technologies.

Comprehensive Band Support:

• 600 MHz Allocation: 617-697 MHz coverage for extended range LTE services
• 700 MHz + FirstNet: 699-803 MHz including Band 14 public safety spectrum
• SMR 800 + Cellular: 817-894 MHz traditional cellular and SMR services
• PCS Band: 1850-1995 MHz high-capacity commercial services
• AWS-1/3 Combined: 1710-1780 MHz and 2110-2180 MHz dual-band support
• WCS Spectrum: 2305-2360 MHz wireless communications services
• BRS Allocation: 2496-2690 MHz broadband radio services
• C-Band 5G: 3450-3980 MHz next-generation wireless services

Exceptional Low-Loss Performance

The defining characteristic of ADRF channel combiners is their exceptionally low insertion loss specifications, achieved through advanced RF design techniques and precision manufacturing processes. Insertion losses ranging from 0.4 dB to 2.2 dB across different frequency bands ensure maximum signal preservation while enabling efficient multi-band operation.

Performance Optimization Features:

• Precision Filtering: Sharp roll-off characteristics minimize out-of-band interference
• Impedance Matching: Optimized 50-ohm systems ensure maximum power transfer
• Return Loss Excellence: Specifications exceeding 18-20 dB minimize reflection losses
• Passband Linearity: Minimal ripple characteristics maintain signal integrity

Superior Isolation Characteristics

High isolation between frequency bands prevents interference and ensures clean multi-carrier operation even in high-power applications. Isolation specifications ranging from 40 dBc to 45 dBc across different band combinations enable reliable simultaneous operation of multiple wireless services without degradation or interference.

---

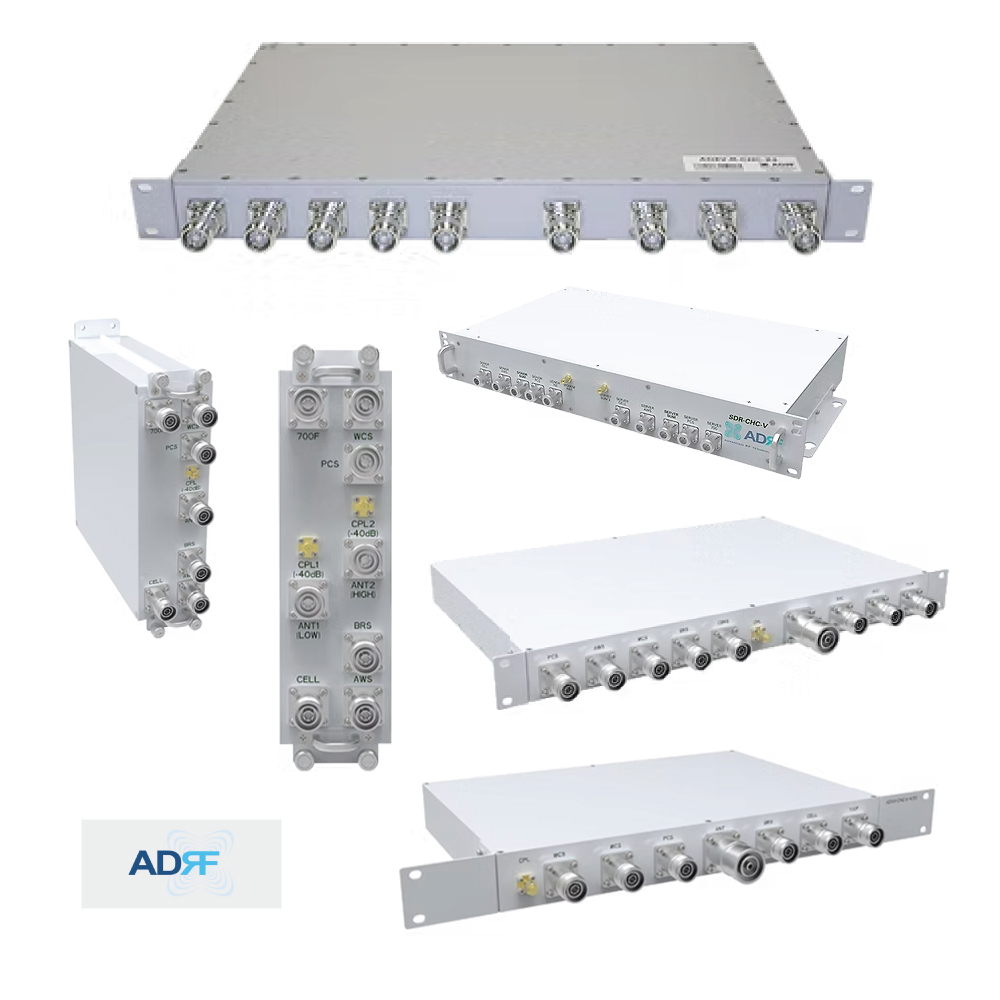

Comprehensive Product Portfolio

The ADRF channel combiner family encompasses specialized models optimized for different deployment scenarios and performance requirements, providing flexibility to address diverse system architectures while maintaining consistent performance standards.

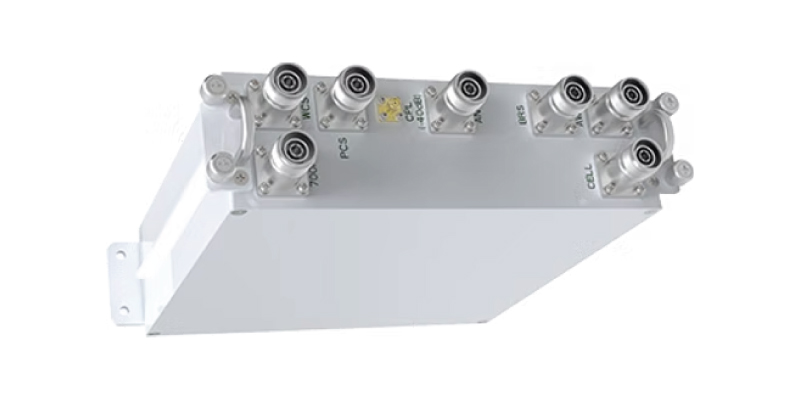

ADXV-HPR-CHC-U: Universal Outdoor Solution

Engineered for demanding outdoor applications, this robust combiner delivers comprehensive frequency coverage with exceptional environmental protection and reliability specifications.

Technical Performance:

• Frequency Coverage: Complete support for 700 MHz + Band 14, SMR 800 + Cellular, PCS, AWS-1/3, WCS, and BRS
• Insertion Loss: Maximum 0.7 dB across all supported frequency bands
• Isolation Performance: Minimum 45 dBc between all band combinations (40 dBc for select high-band pairs)
• PIMD Specification: -161 dBc at 2 x 43 dBm for exceptional linearity

Power Handling Capabilities:

• Input Ports: 80W average power per individual band input
• Antenna Port: 250W average power handling at combined output
• Environmental Rating: IP67 protection for reliable outdoor operation

Installation Flexibility:

• Dimensional Specifications: 11.02 x 9.44 x 2.83 inches (280 x 240 x 72 mm)
• Weight: 15.08 lbs (6.84 kg) for structural planning
• Operating Temperature: -40°F to +176°F (-40°C to +80°C) extreme range
• Connector Configuration: 4.3-10 Female for professional installations

This model integrates seamlessly with ADXV-HPR rack systems and provides the environmental protection necessary for outdoor headend installations while maintaining carrier-grade performance specifications.

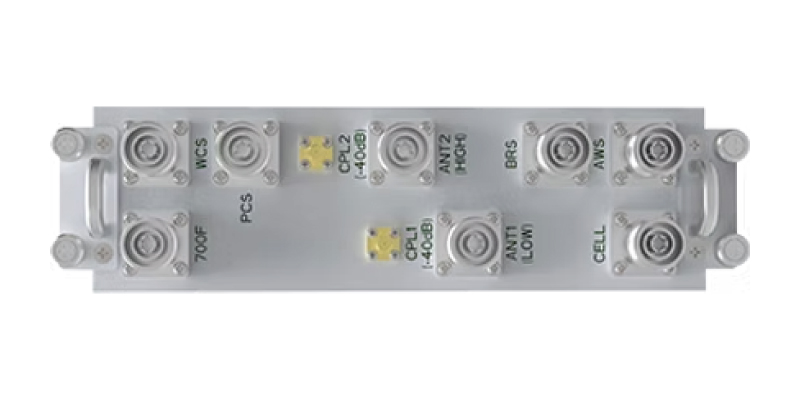

ADXV-HPR-CHC-U-LH: Dual-Sum Port Architecture

This specialized variant incorporates dedicated sum ports for low-band and high-band frequencies, enabling optimized system architectures that separate different frequency ranges for enhanced performance and flexibility.

Advanced Architecture Features:

• Dual Sum Configuration: Separate antenna ports for low-band (600-960 MHz) and high-band (1710+ MHz) frequencies
• Enhanced Performance: Maximum 0.5 dB insertion loss for superior signal preservation
• Identical Coverage: Same comprehensive frequency support as standard HPR-CHC-U model
• Optimized Isolation: Maintains 45 dBc isolation specifications across all bands

System Integration Benefits:

• Antenna Optimization: Enables frequency-specific antenna selection for optimal performance
• Reduced Complexity: Simplifies system design by separating low-band and high-band distribution
• Enhanced Flexibility: Accommodates diverse antenna configurations and coverage requirements
• Future Expansion: Facilitates system upgrades and technology evolution

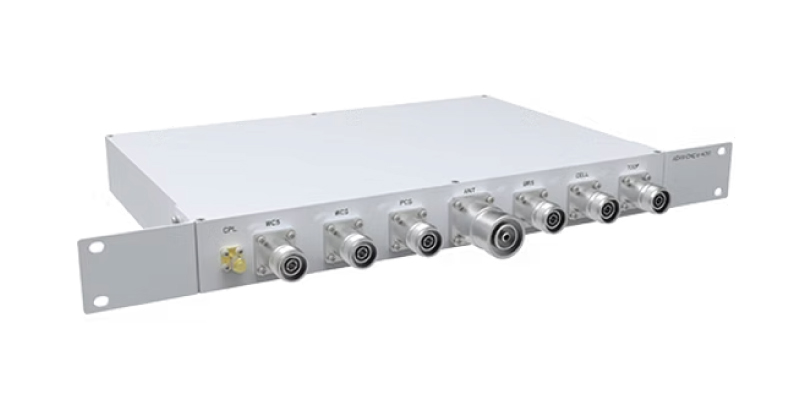

ADXV-R-CHC-U: Proven Indoor Solution

Designed for traditional indoor rack room installations, this established combiner delivers reliable performance with comprehensive monitoring capabilities and flexible mounting options.

Core Performance Specifications:

• Insertion Loss: Maximum 0.4 dB across all supported frequency bands
• PIMD Performance: -153 dBc at 2 x 43 dBm ensuring clean operation
• Power Handling: 50W per input port, 250W antenna sum port
• Monitoring Integration: 40 ± 3.0 dB coupling test ports for system verification

Installation and Integration:

• Form Factor: Standard 19-inch rack mount with optional wall mounting
• Dimensions: 19.0 x 1.75 x 10.8 inches for efficient rack utilization
• Weight: 12.0 lbs enabling straightforward installation
• Environmental Rating: IP67 protection with -40°F to +158°F operation range

Professional Connectivity:

• Antenna Port: 7/16 DIN Female for high-power applications
• Input Ports: 4.3-10 Female ensuring reliable connections
• Coupling Ports: SMA Female for monitoring and testing

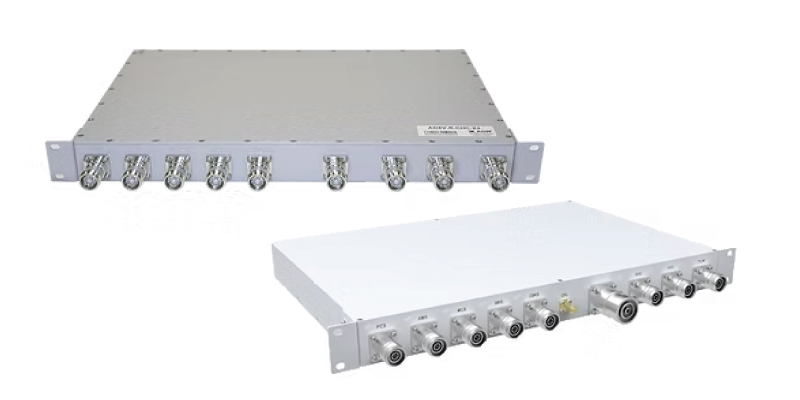

ADXV-R-CHC-X and CHC-X2: Extended Coverage Solutions

These advanced combiners incorporate extended frequency coverage including 600 MHz and C-band allocations, addressing the complete spectrum of current and emerging wireless services.

ADXV-R-CHC-X2 Specifications:

• Universal Coverage: 600 MHz through C-band including all intermediate allocations
• Advanced PIMD: -161 dBc at 2 x 43 dBm for exceptional linearity
• Variable Insertion Loss: Optimized per band from 0.5 dB (C-band) to 2.2 dB (700 MHz)
• High Power Rating: Up to 80W per C-band port, 300W antenna sum port

Environmental Capabilities:

• Compact Design: 19.0 x 11.4 x 1.7 inches (482.6 x 290.0 x 44.0 mm)
• Weather Protection: IP66 rating for outdoor applications
• Temperature Range: -40°F to +158°F (-40°C to +70°C)
• Professional Weight: 17.5 lbs (7.94 kg)

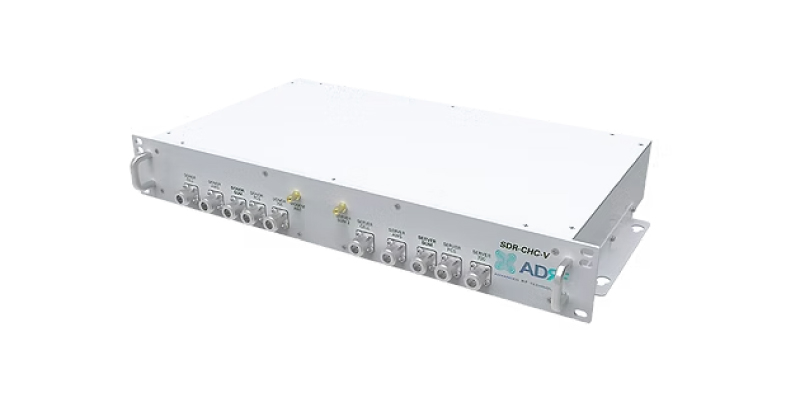

SDR-CHC-V: Compact Quad-Band Solution

Engineered specifically for SDR platform integration, this compact combiner provides dual combining functions within a single rack unit while maintaining professional performance standards.

Integrated Dual-Combiner Design:

• Frequency Support: 700 MHz, Cellular, PCS, and AWS-1 + AWS-3 bands
• Performance Specifications: 0.7-1.0 dB insertion loss, 40 dB minimum isolation
• Monitoring Capabilities: Integrated coupling test ports (24 ± 2 dB low bands, 15 ± 2 dB high bands)
• Power Ratings: 5W input ports, 20W sum ports for appropriate applications

Space-Efficient Installation:

• Rack Integration: 19-inch rack mount or wall mounting flexibility
• Compact Footprint: 19.0 x 2.6 x 9.9 inches maximizing rack space efficiency
• Lightweight Design: 9.0 lbs enabling straightforward installation
• Professional Connectivity: N-Type Female RF ports, SMA Female coupling ports

---

Strategic Applications and System Integration

Commercial Distributed Antenna Systems

Modern commercial DAS deployments demand efficient signal combining that maintains carrier-grade performance while accommodating multiple wireless services within unified infrastructure platforms. ADRF channel combiners provide the foundation for these sophisticated systems.

• Multi-Carrier Integration: Universal frequency coverage enables simultaneous support for multiple cellular carriers across diverse spectrum allocations, eliminating the need for separate combining systems while reducing infrastructure complexity and installation costs.
• 5G Network Readiness: Comprehensive C-band support ensures compatibility with emerging 5G deployments while maintaining performance standards necessary for advanced modulation schemes and wide-channel operations characteristic of next-generation wireless services.
• Capacity Optimization: Low insertion loss characteristics preserve precious signal strength throughout distribution systems, enabling extended coverage areas and improved system economics by reducing amplification requirements and power consumption.

Public Safety Emergency Communications

Emergency Responder Communication Enhancement Systems place demanding requirements on RF combining equipment, requiring reliable operation across public safety frequency bands while maintaining strict performance standards essential for life-safety applications.

• FirstNet Compatibility: Complete Band 14 coverage ensures reliable integration with FirstNet infrastructure while supporting traditional public safety frequency bands within unified combining platforms that simplify system architecture and reduce deployment complexity.
• Mission-Critical Reliability: Exceptional PIMD performance and robust environmental specifications ensure reliable operation during emergency situations when communications become most critical for first responder safety and operational effectiveness.
• Code Compliance Support: Professional-grade performance specifications and comprehensive testing documentation facilitate regulatory approval processes while ensuring long-term compliance with evolving public safety communication standards.

Enterprise and Campus Networks

Large-scale enterprise deployments require combining solutions that address diverse communication requirements while providing the reliability and performance necessary for business-critical applications across complex indoor environments.

• Technology Convergence: Universal combining capabilities enable consolidation of multiple wireless services including cellular, Wi-Fi, and specialized applications within unified distribution infrastructure that reduces installation complexity and ongoing maintenance requirements.
• Scalable Architecture: Modular combining options accommodate organic system growth and technology evolution without requiring complete infrastructure replacement, protecting long-term technology investments while maintaining optimal performance characteristics.
• Professional Integration: Comprehensive monitoring capabilities and professional connectivity options ensure seamless integration with existing network management systems while providing the diagnostic capabilities necessary for proactive system maintenance and optimization.

Advanced Engineering and Quality Assurance

Precision Manufacturing Processes

ADRF channel combiners incorporate advanced manufacturing techniques that ensure consistent performance characteristics and long-term reliability across diverse deployment environments and applications.

• RF Engineering Excellence: Computer-aided design optimization ensures optimal electrical performance while precision manufacturing processes maintain tight tolerances essential for achieving specified insertion loss and isolation characteristics across production runs.
• Material Science Applications: Advanced material selection and processing techniques minimize passive intermodulation generation while ensuring mechanical durability and environmental resistance throughout extended operational lifecycles.
• Quality Control Systems: Comprehensive testing procedures verify all performance specifications before shipment while statistical process control methods ensure consistent quality and reliability across all production units.

Performance Verification and Testing

• RF Parameter Testing: Comprehensive RF testing verifies insertion loss, isolation, return loss, and PIMD specifications across operational frequency ranges while environmental testing ensures reliable performance under specified temperature and humidity conditions.
• Power Handling Validation: High-power testing confirms specified power handling capabilities while thermal analysis ensures reliable operation under maximum power conditions without performance degradation or reliability compromise.
• Long-Term Reliability Assessment: Accelerated life testing and environmental stress screening identify potential reliability issues while ensuring consistent performance throughout specified operational lifecycles under demanding deployment conditions.

---

---
